The inverter can be screened using the methodology shown in Figure 2-8 below.

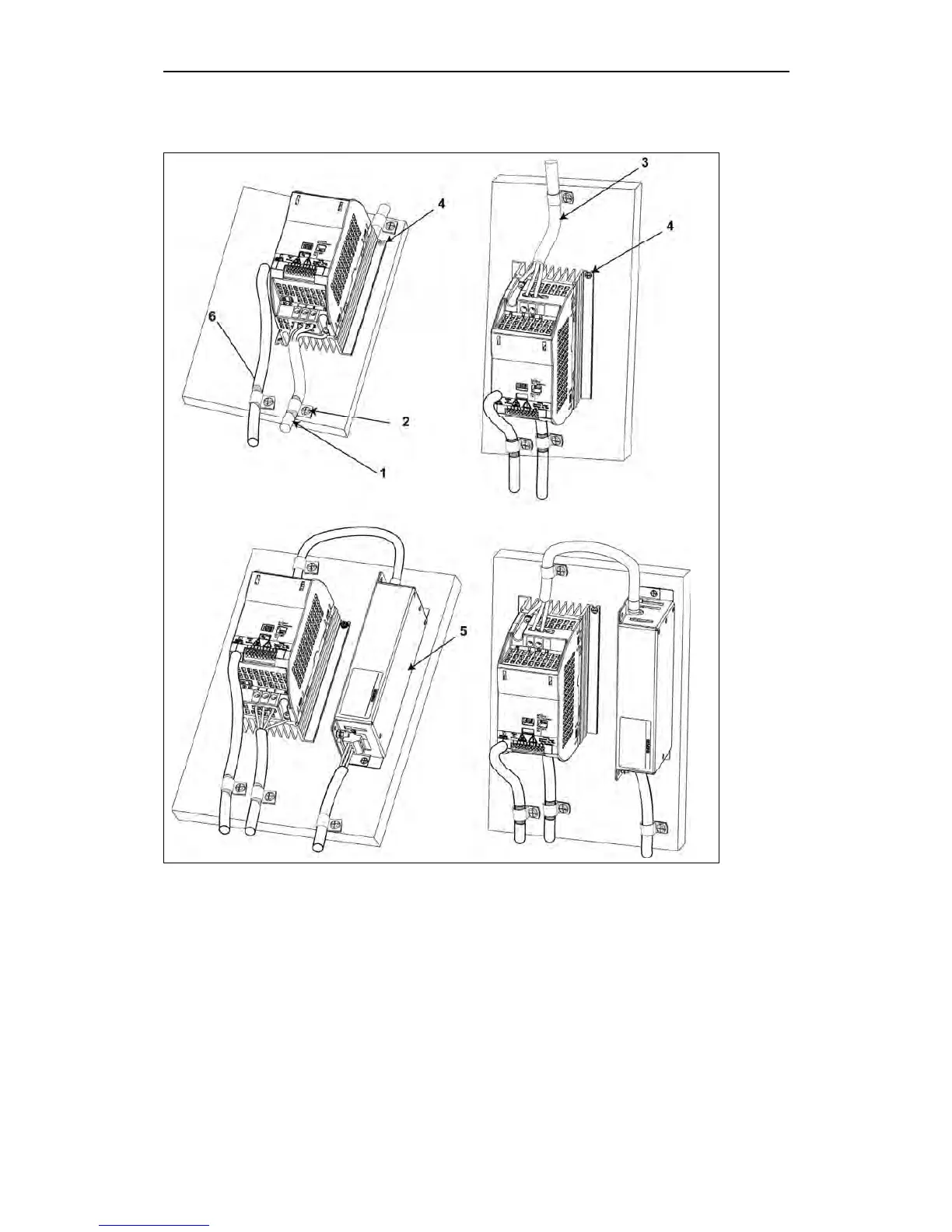

Figure 2-8 Wiring Guidelines to Minimize the Effects of EMI
Legend
1 Motor cable
2 Use suitable clips to fix motor and control cable screens securely to metal back plate
3 Mains power cable
4 Retaining screw (inverter fixing bolts)
5 Line commutating Choke
6 Control cable
