Description
2.3 Power Module
Inverter with CU240B-2 and CU240E-2 Control Units
Operating Instructions, 07/2010, FW 4.3.2, A5E02299792B AA
27
2.3 Power Module
Power Modules are available in various degrees of protection with a different topology in the
power range from between 0.37 kW up to 250 kW. The Power Modules are sub-divided into
various frame sizes (FS).

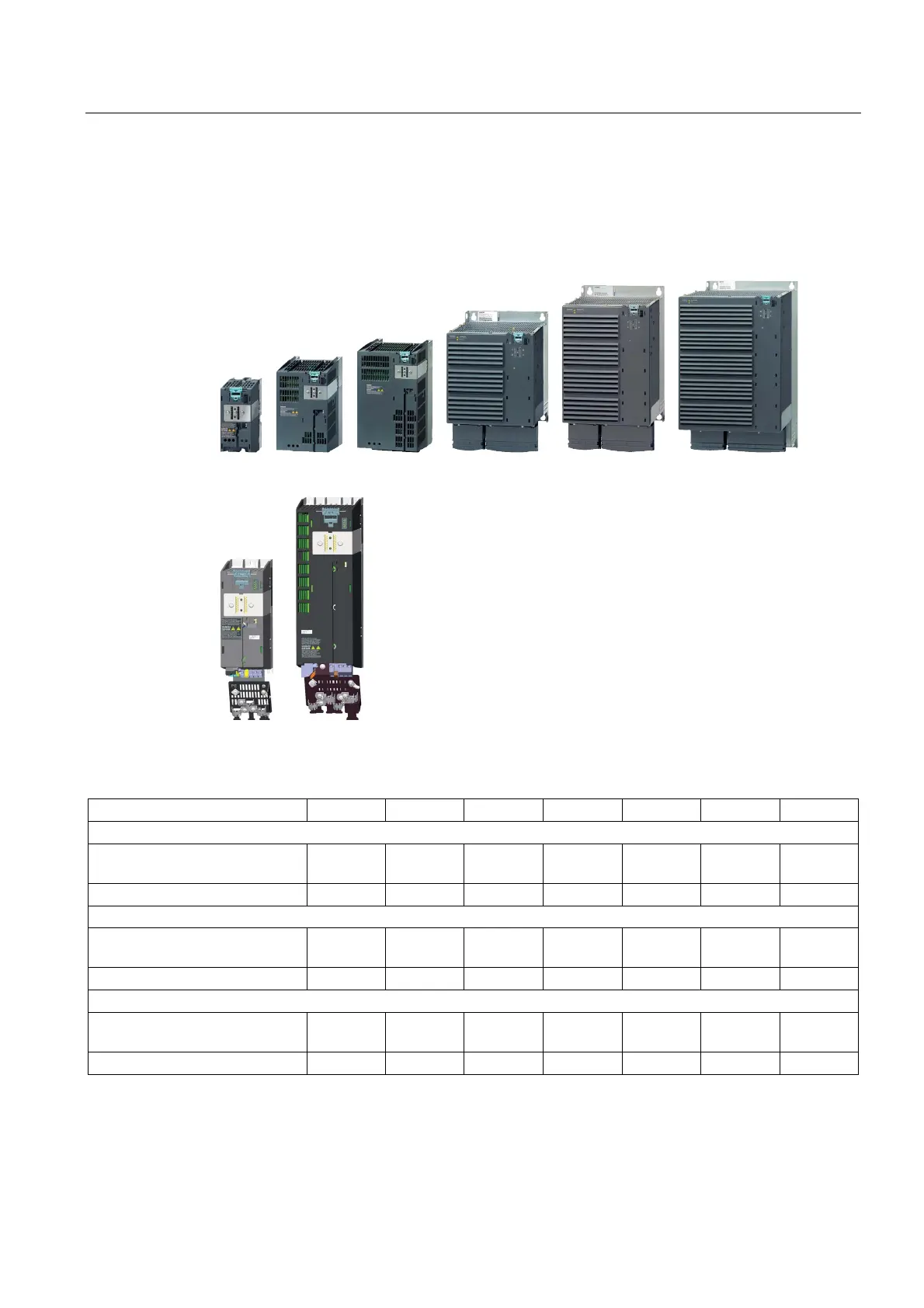

Figure 2-1 Power Module with degree of protection IP20, PM240, PM250, PM260
Figure 2-2 Power Module with degree of protection IP20, PM240-2, PM250-2
Table 2- 1 Power Module with degree of protection IP20
Frame size FSA FSB FSC FSD FSE FSF FSGX
PM240, 3AC 400V - power units with integrated braking chopper
2)
Power range (LO) 0.37 kW
… 1.5 kW
2.2 kW
… 4 kW
7.5 kW
… 15 kW
18.5 kW
… 30 kW
37 kW
… 45 kW
55 kW
… 132 kW
160 kW
… 250 kW
With integr. line filter, Class A ○ ● ● ● ● ◑
1)
◑
1)
PM240-2, 3AC 400V - power units with integrated braking chopper
2)
Power range (LO) 0.55 kW
… 3 kW
--- --- --- --- --- ---
With integr. line filter, Class A ○/● --- --- --- --- --- ---
PM250, 3AC 400V - power units capable of energy recovery
Power range (LO) --- --- 7.5 kW
… 15 kW
18.5 kW
… 30 kW
37 kW
… 45 kW
55 kW
… 90 kW
---
With integr. line filter, Class A --- --- ● ● ● ● ---
