5.6 Control word block selection
Block selection

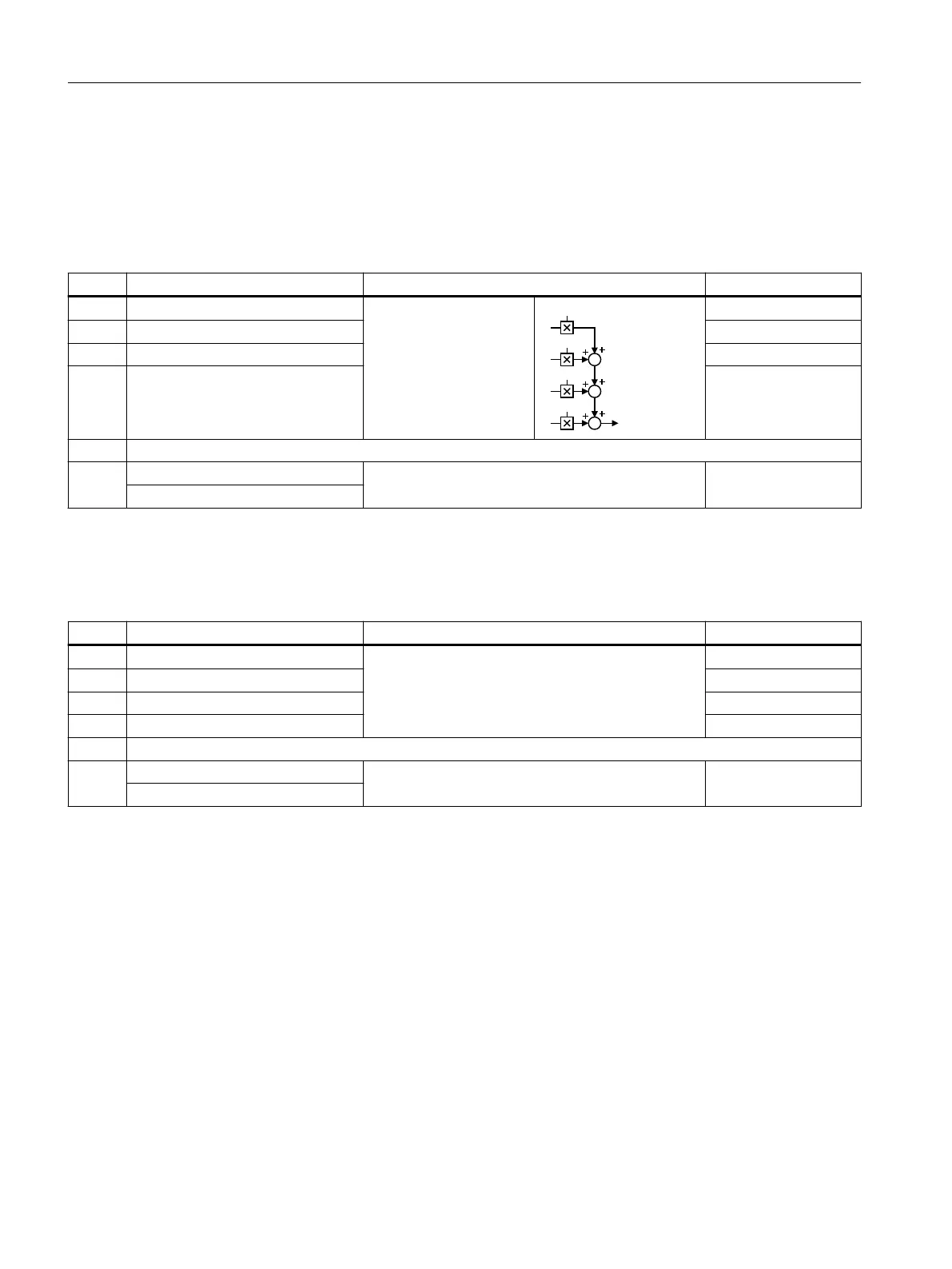

Table 5-10 Block selection and interconnection in the converter
Bit Meaning Comments P No.
0 Block selection, bit 0 Example for selecting tra‐
versing block number 5:
p2625 = r2091.0
1 Block selection, bit 1 p2626 = r2091.1
2 Block selection, bit 2 p2627 = r2091.2
3 Block selection, bit 3 p2628 = r2091.3
4…14 Reserved
15 0 = Deactivate MDI Switching from traversing blocks to direct setpoint
input.
p2647 = r2091.15
1 = Activate MDI
Actual traversing block
Table 5-11 Feedback signal of the actual traversing block
Bit Meaning Comments P No.
0 Actual traversing block, bit 0 --- p2081[0] = r2670.0
1 Actual traversing block, bit 1 p2081[1] = r2670.1
2 Actual traversing block, bit 2 p2081[2] = r2670.2
3 Actual traversing block, bit 3 p2081[3] = r2670.3
4…14 Reserved
15 0 = MDI active --- p2081[15] = r2670.15
1 = MDI not active
PROFIdrive interface
5.6 Control word block selection
Basic positioner
30 Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG
