6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
46
 Siemens AG 2018 All rights reserved
No.
Action
Remarks

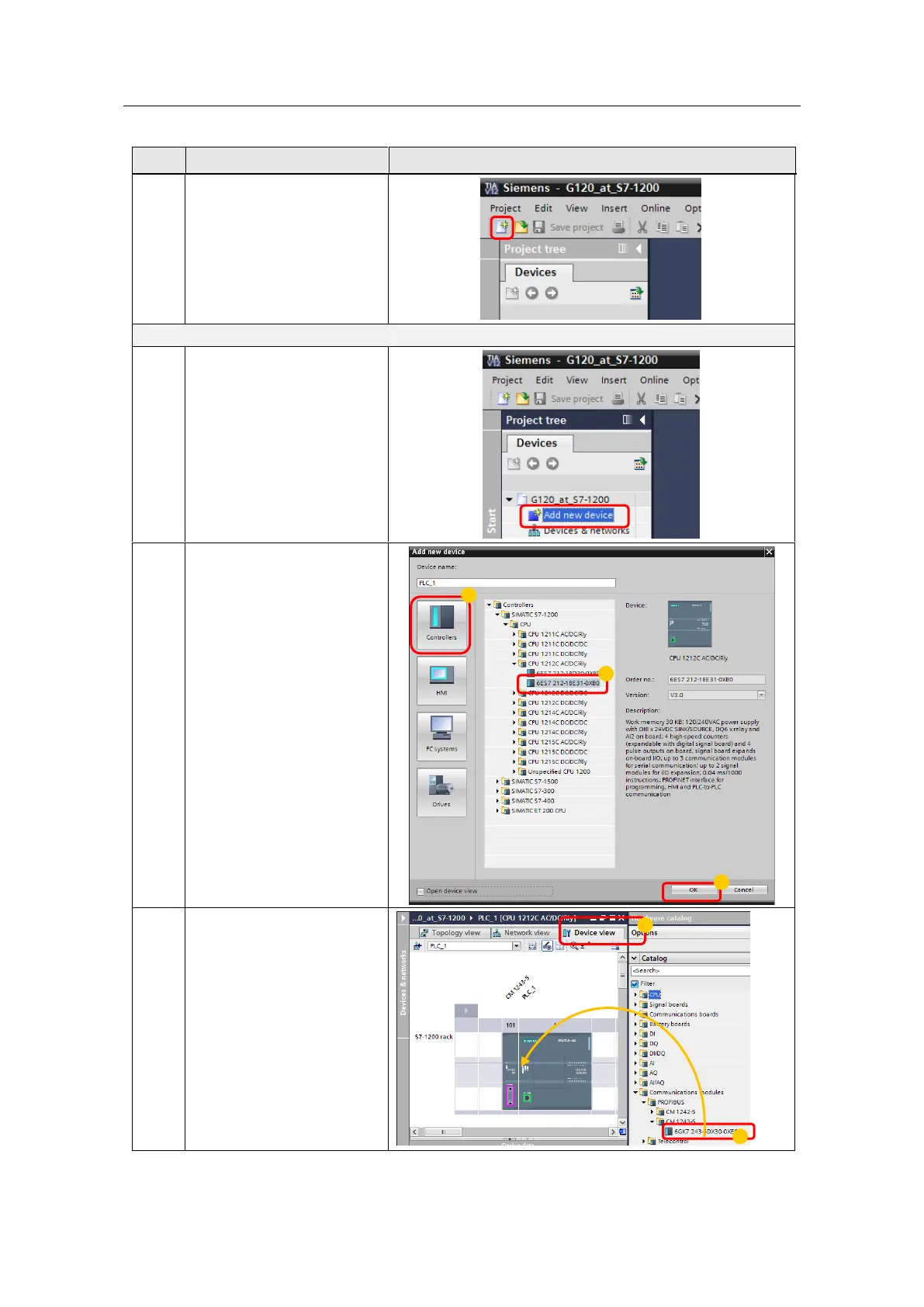

3.
Create a new project and
assign a name
(e.g.“G120_at_S7-1200”)
Inserting the SIMATIC S7-1200
4.
Double-click on “Add new
device”.
5.
1. Select “Controller”.
2. Select the desired
SIMATIC CPU.
3. Then click on “OK”.
6.
In the “Devices & Networks”
editor you go to the device
view of the SIMATIC CPU.
From the catalog you pull the
communication module
CM1243-5 to the first free slot
left next to the SIMATIC CPU
1
2
3
1
2

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
