Siemens SINAMICS G120P Manual

6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
47
 Siemens AG 2018 All rights reserved
No.
Action
Remarks

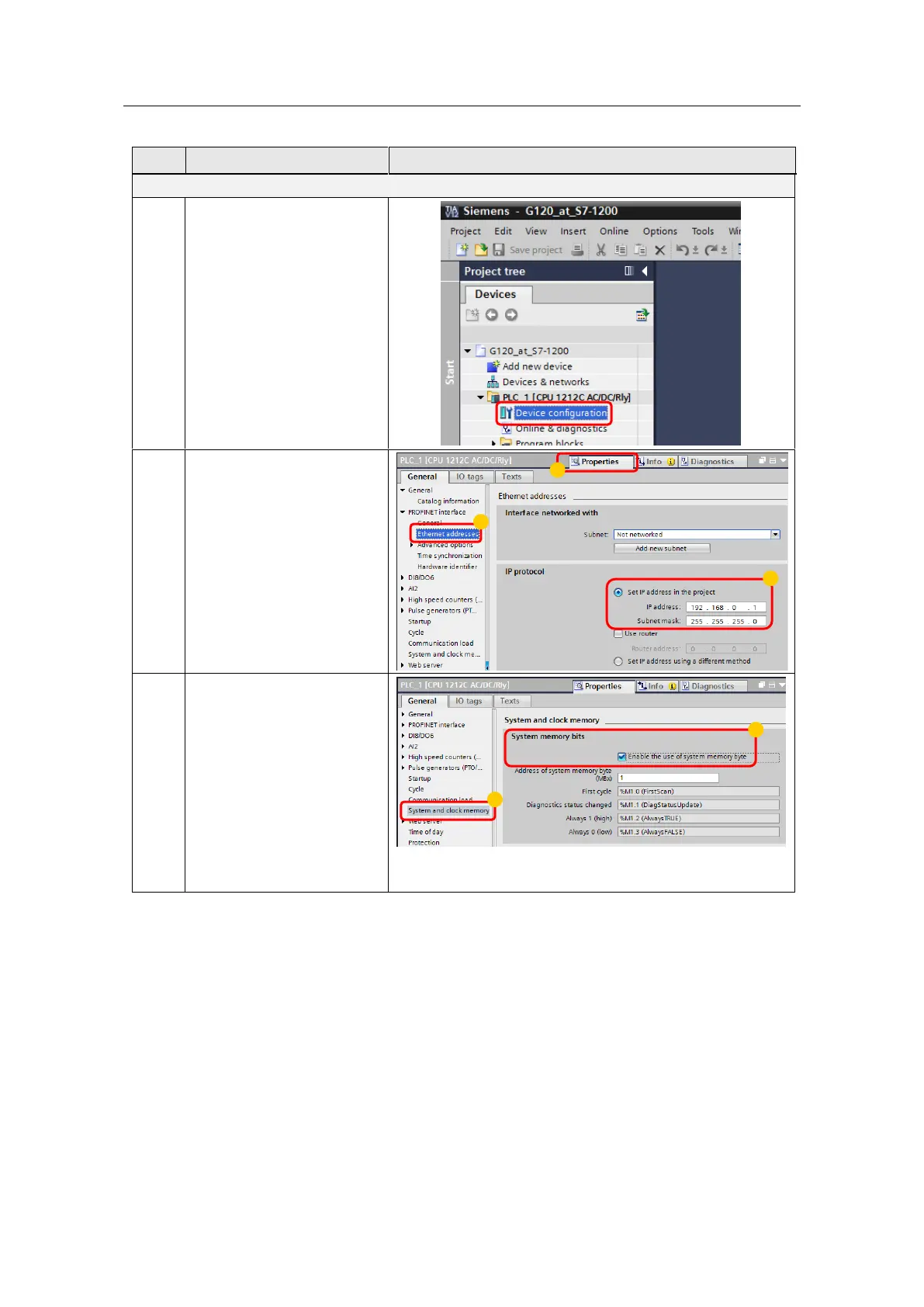

Configuring the SIMATIC S7-1200
7.
In the device configuration
you go to the SIMATIC CPU.
8.
Configure the PROFINET
interface:
1. In the device
configuration you open
the “Properties” of the
SIMATIC CPU.
2. Go to “Ethernet
addresses” in the
navigation tree.
3. Select “Set IP address in
the project” and enter the
desired IP address.
9.
Enable the use of the system
memory bits, since they are
used in the control program
(MB1).
1. In the tree you go to
“System and clock
memory”.
2. Checkmark “Enable the
use of system memory
byte” and enter the
desired byte address.
The program in the application example
uses MB1 (default setting)
2
3
1
1
2

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
