6 Configuration and Settings
6.1 Creating the project configuration
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
48
 Siemens AG 2018 All rights reserved
No.
Action
Remarks

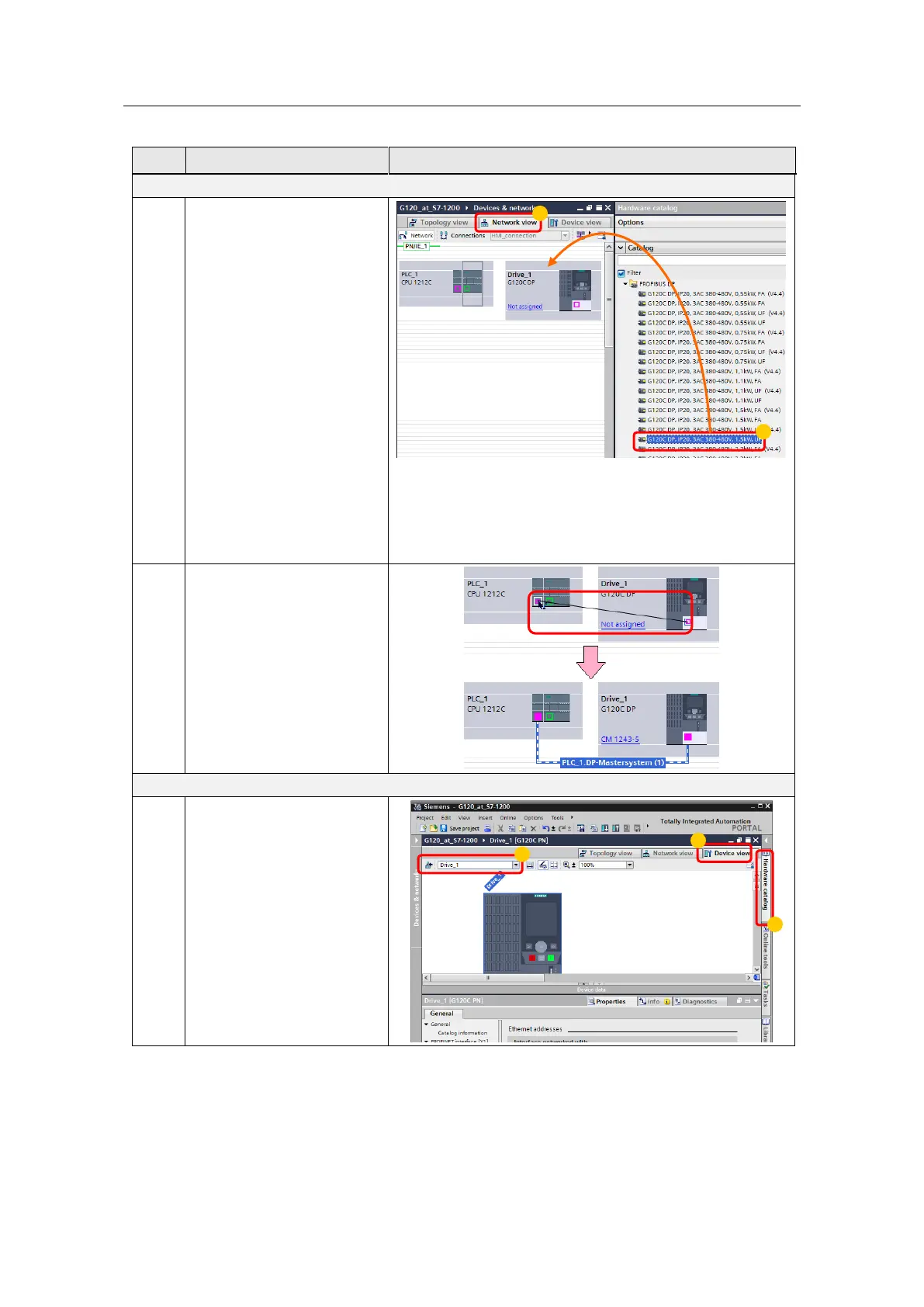

Add and network the SINAMICS G120
10.
Select the desired SINAMICS
drive:
1. In the “Devices &
networks” editor, go to
the “Network view”.
2. Then drag the required
SINAMICS G120 DP
from the catalog into the
graphic area.
In the catalog, the SINAMICS
drive can be found in …
>Drives & starters
>SINAMICS Drives
>SINAMICS G120(D,P)
>Control modules
or
>Drives & starters
>SINAMICS Drives
>SINAMICS G120C
>PROFIBUS DP
11.
Graphically connect the
PROFIBUS connections of
SIMATIC controller and
SINAMICS drive by dragging
the mouse.
Configuring the SINAMICS G120
12.
In case you are not using a
G120C, you still need to
define the power module:
1. In the “Devices &
networks” editor, go to
the Properties of the
SINAMICS drive.
2. Select “Device view”
3. Select the drive
4. Insert the power unit from
the catalog.
2
1
3
4
2

Siemens SINAMICS G120P Specifications

General

Frequency Range	0 Hz to 550 Hz
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V, 380 V to 480 V, 500 V to 690 V
Output Voltage	0V to input voltage
Control Type	Vector control, V/f control
Protection Class	IP20, IP55
Communication Interfaces	PROFIBUS, PROFINET, Modbus RTU
Cooling Method	Air cooling
Altitude	Up to 2000 m without derating
Power Range	0.37 to 630 kW
