9.6 Connecting a motor holding brake
Power Module PM240-2
124 Hardware Installation Manual, 01/2017, A5E33294624B AE
9.6.3
Mounting and connecting the brake relay
Installing the Brake Relay
●
FSA … FSC
: Install the Brake Relay next to the Power Module.
●
FSD … FSF
: Install the Brake Relay at the rear of the lower shield plate. Attach the Brake
Relay before you install the shield plate.
Mounting the shield plate for built-in units (Page 35)
Connecting the Brake Relay to the inverter

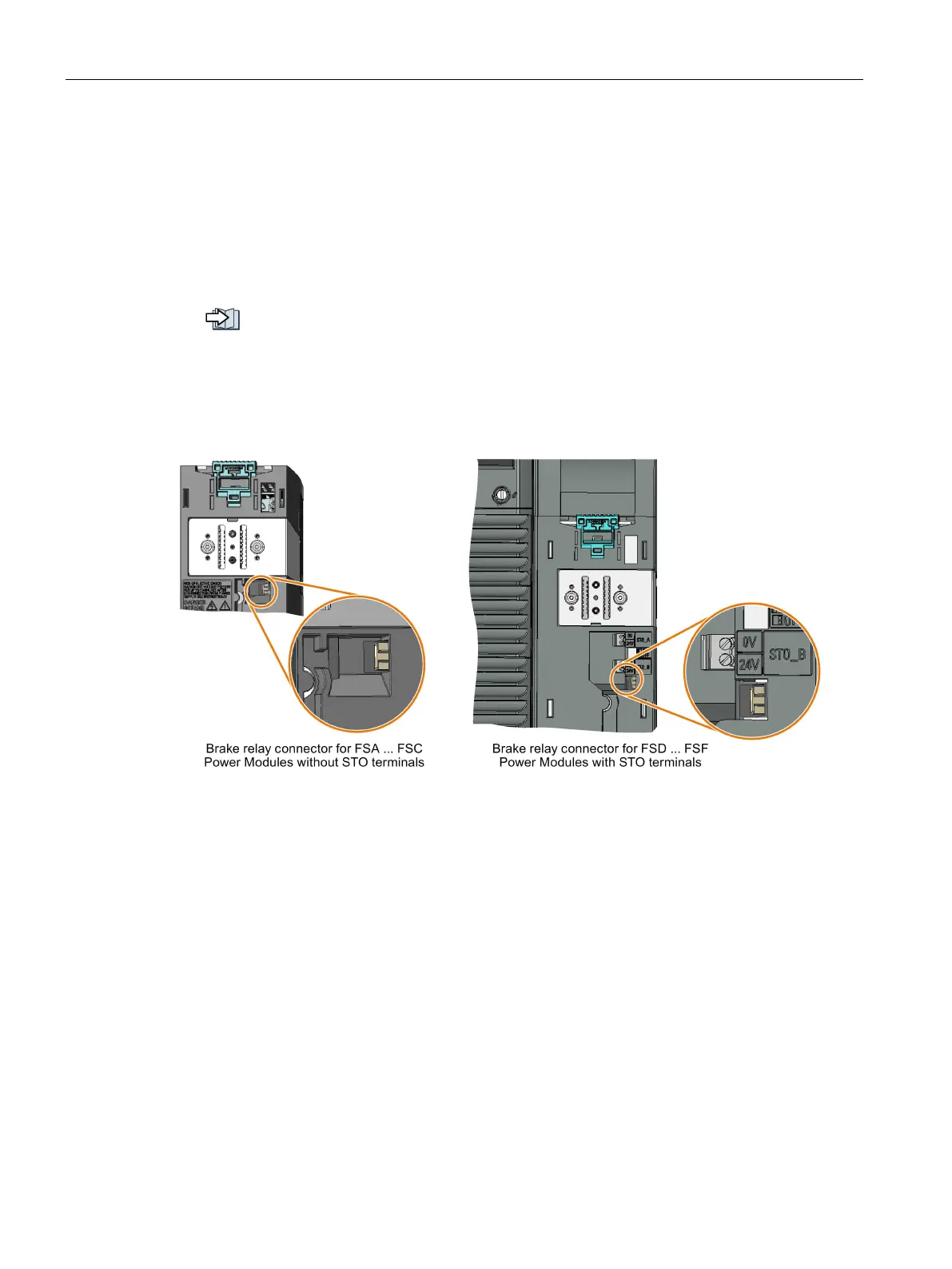

The connector for the Brake Relay is located at the front of the Power Module. Lay the cable
harness for the Brake Relay in the cable routing.
