9.7 Output reactor
Power Module PM240-2
Hardware Installation Manual, 01/2017, A5E33294624B AE
125
9.7
Output reactor
Output reactors reduce the voltage stress on the motor windings and the load placed on the
inverter as a result of capacitive recharging currents in the cables.
When using the output reactor it is not permissible that the output frequency exceeds
150 Hz. It is not permissible that the pulse frequency exceeds 4 kHz

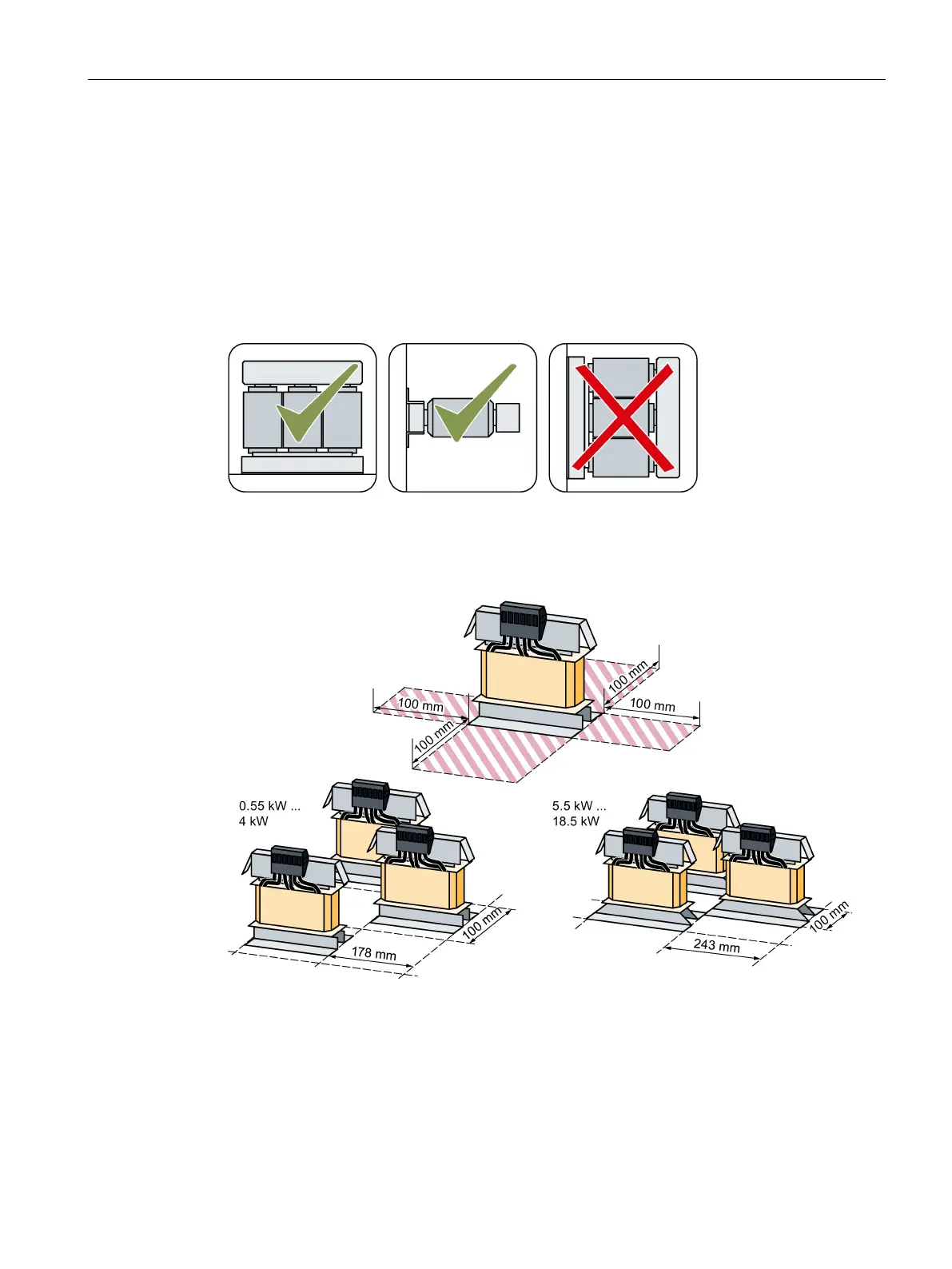

Mounting position
Clearances to other devices
Keep shaded areas free of any devices and components.
Minimum clearances of the output reactor to other devices, space-saving mounting
examples
