9.7 Output reactor
Power Module PM240-2
126 Hardware Installation Manual, 01/2017, A5E33294624B AE

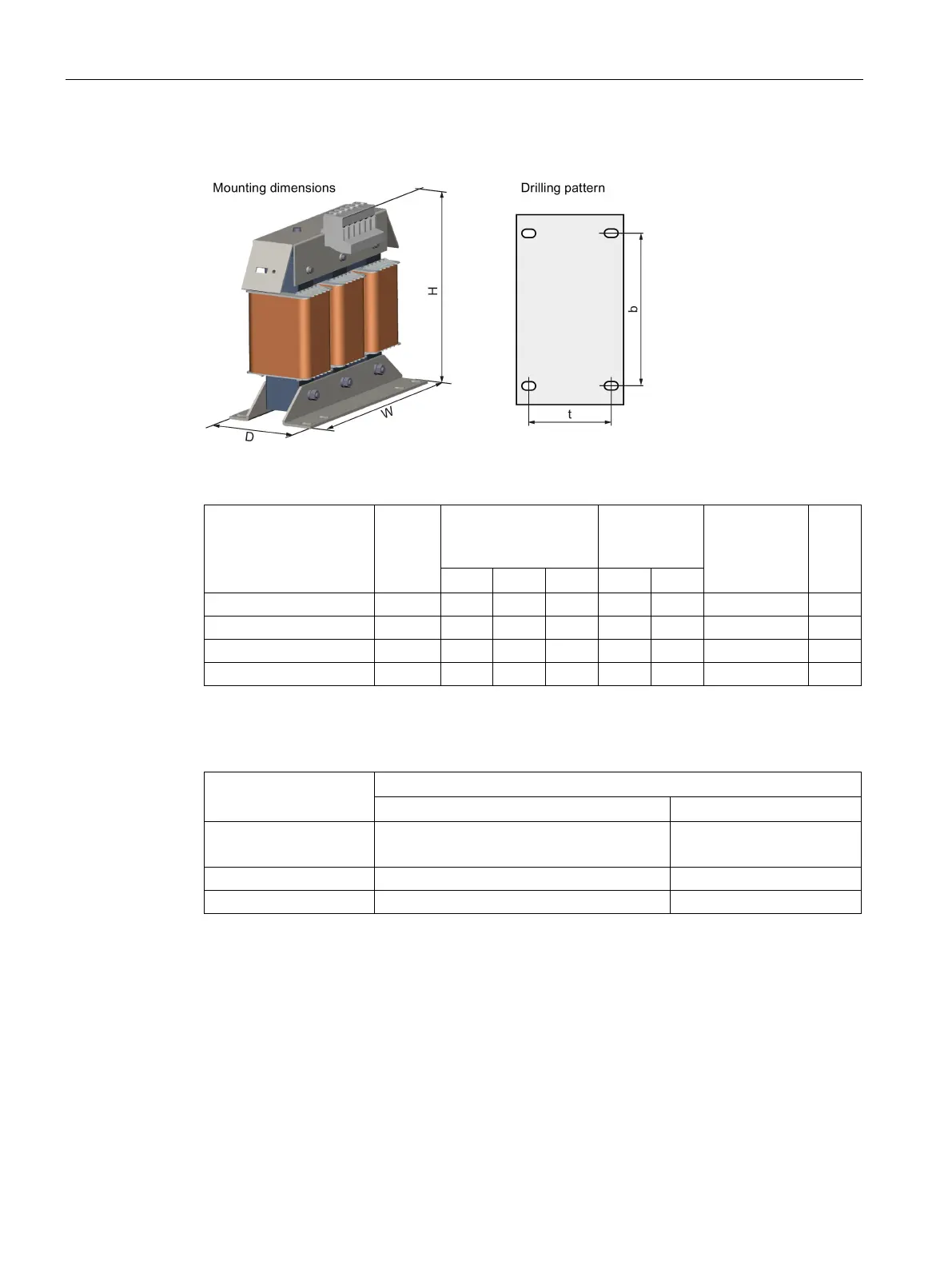

Dimensions, drilling patterns and weights for FSA … FSC inverters
Table 9- 9 Dimensions and weights
Article number
Induct-
ance
[mH]
Overall dimensions
[mm]
Drilling di-
mensions
[mm]
Fixing/torque
[Nm]
Weigh
t [kg]
W
H
D
b
t
6SL3202-0AE16-1CA0
2.5
207
166
73
166
57
4 x M4 / 3
3.4
6SL3202-0AE18-8CA0
1.3
207
166
73
166
57
4 x M4 / 3
3.9
6SL3202-0AE21-8CA0
0.54
247
211
100
225
81
4 x M5 / 6
10.1
6SL3202-0AE23-8CA0
0.26
257
228
115
225
85
4 x M5 / 6
11.2
Output reactors are designed to IP20 degree of protection.
Table 9- 10 Connections to the Power Module and to the motor
Article number
Connection
Motor Module and motor
PE
6SL3202-0AE16-1CA0
6SL3202-0AE18-8CA0
Screw terminals 4 mm
2
; 0.6 ... 0.8 Nm Threaded bolt M4 / 3 Nm
6SL3202-0AE21-8CA0
Screw terminals 10 mm
2
; 1.5 ... 1.8 Nm
Threaded bolt M5 / 5 Nm
6SL3202-0AE23-8CA0
Screw terminals 16 mm
2
; 2 ... 4 Nm
Threaded bolt M5 / 5 Nm
