Installing/mounting
4.4 Mounting the Power Modules
Power Module PM240-2
Hardware Installation Manual, 01/2017, A5E33294624B AE
35
4.4.2

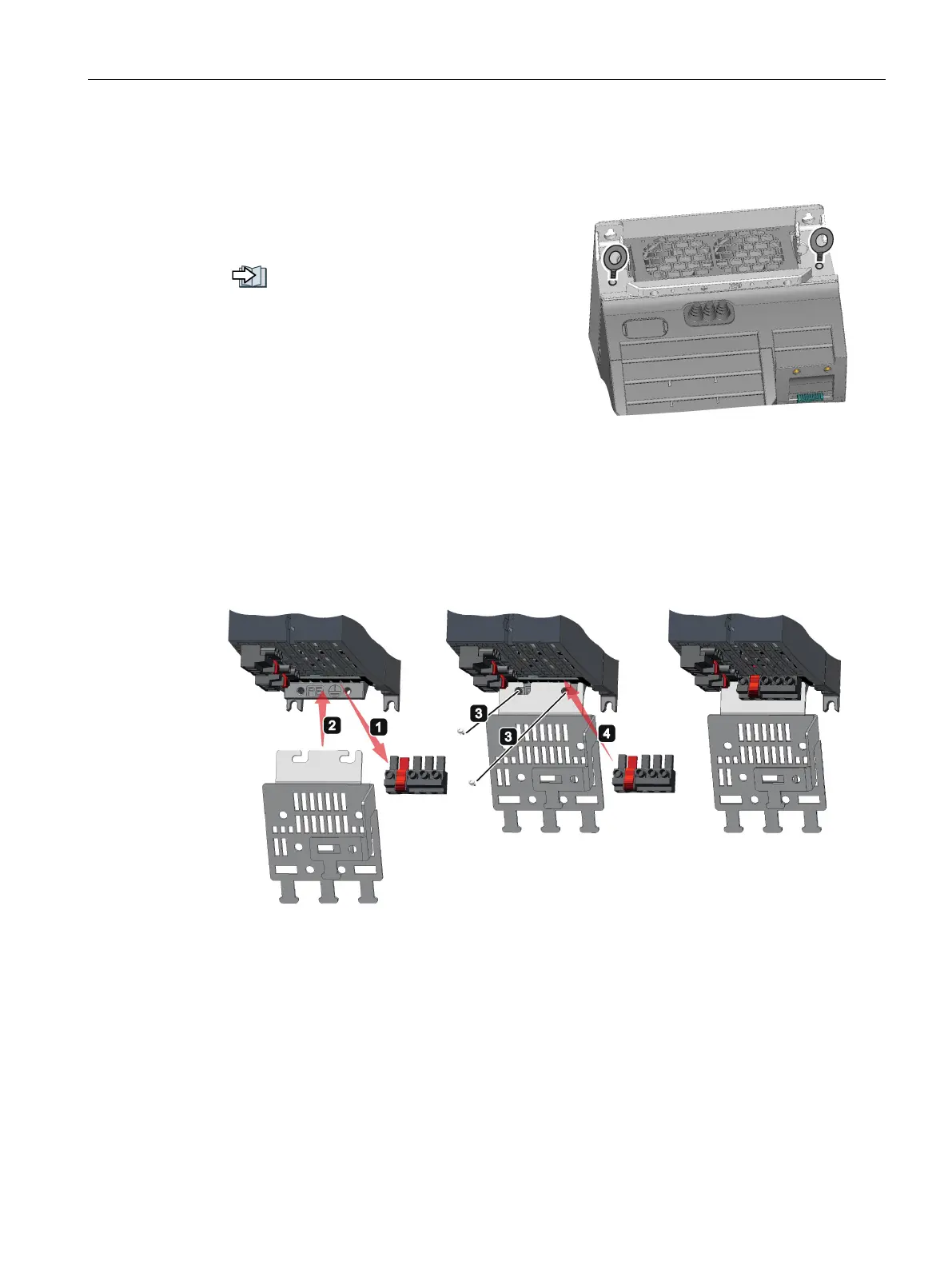

Hoisting gear FSD ... FSF
Use crane lifting lugs and the appropriate
hoisting gear when mounting Power Modules.
Power Module weights:
Technical data (Page 65).
4.4.3
Mounting the shield plate for built-in units
The shield plates and fixings screws are included in the inverter accessory kit.
Shield plate FSA … FSC
