Installing/mounting
4.4 Mounting the Power Modules
Power Module PM240-2
Hardware Installation Manual, 01/2017, A5E33294624B AE
37
Procedure - FSF:

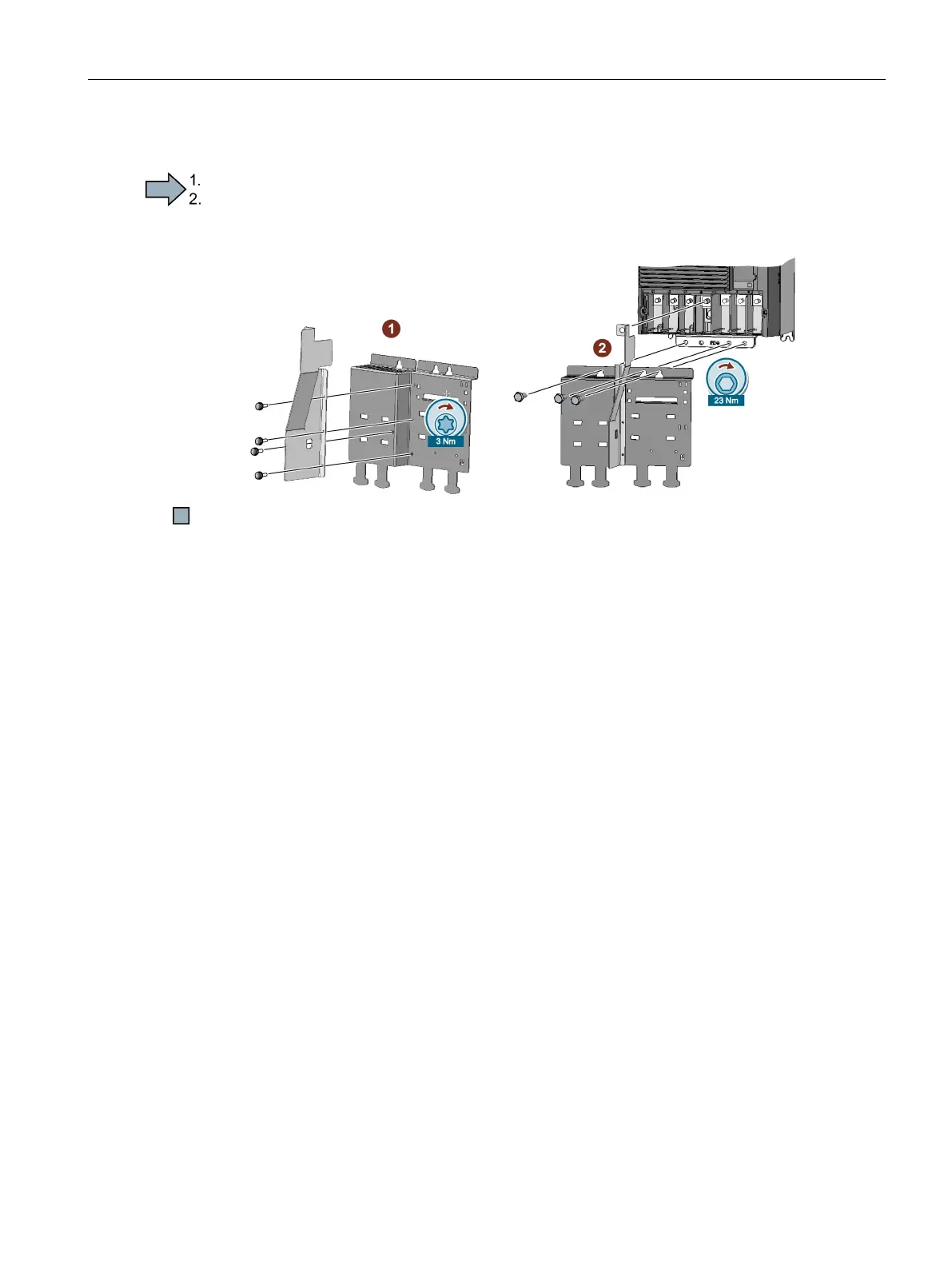

Proceed as follows to mount the EMC connecting bracket and the shield plate:
1. Attach the EMC connecting bracket to the shield plate
①.
2. Screw the shield module to the inverter
② using three screws, as shown in the diagram.
You have correctly mounted the EMC connecting bracket and the shield plate.
