Siemens SINAMICS S120 - Configuration - Cylinder Data

Commissioning
4.6 Configuration - cylinder data
Hydraulic Drive
58 System Manual, 04/2015, 6SL3097-4BA00-0BP1
4.6
Configuration - cylinder data
In this dialog, you enter the cylinder data and define the safety circuit for the cylinder.

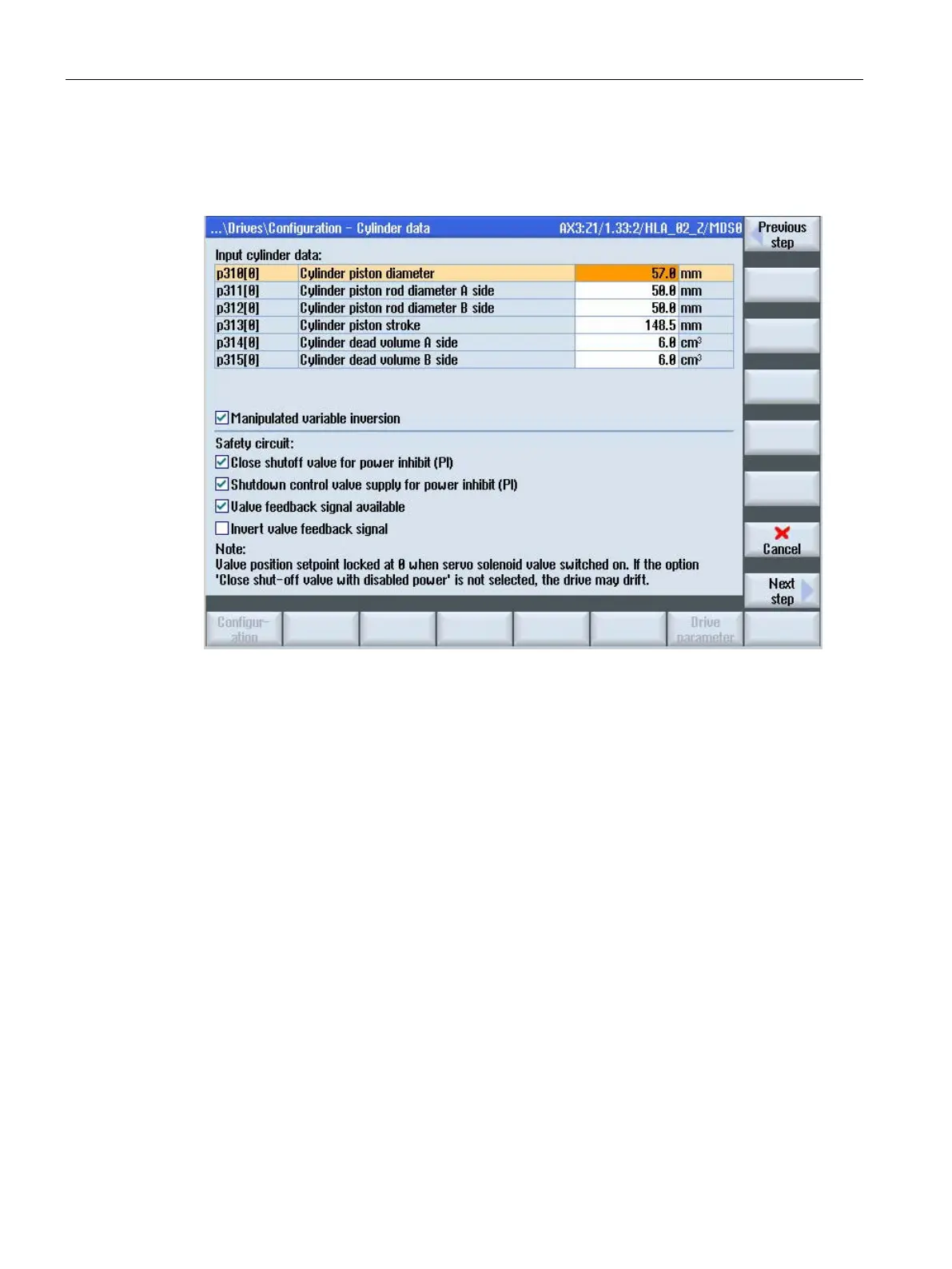

Figure 4-5 Configuration - cylinder data
In this dialog, you enter the cylinder data and define the safety circuit that is used.
Overview of important parameters (see SINAMICS S120/S150 List Manual)
•
p0310[0...n]
Cylinder piston diameter
•
p0311[0...n]
Cylinder pisto
n rod diameter A side
•
p0312[0...n]
Cylinder piston rod diameter B side
•
p0313[0...n]
Cylinder piston stroke
•
p0314[0...n]
Cylinder dead volume A side
•
p0315[0...n]
Cylinder dead volume B side
