Siemens SINUMERIK 802C base line

Start-Up
SINUMERIK 802C base line
4-17
Start-Up

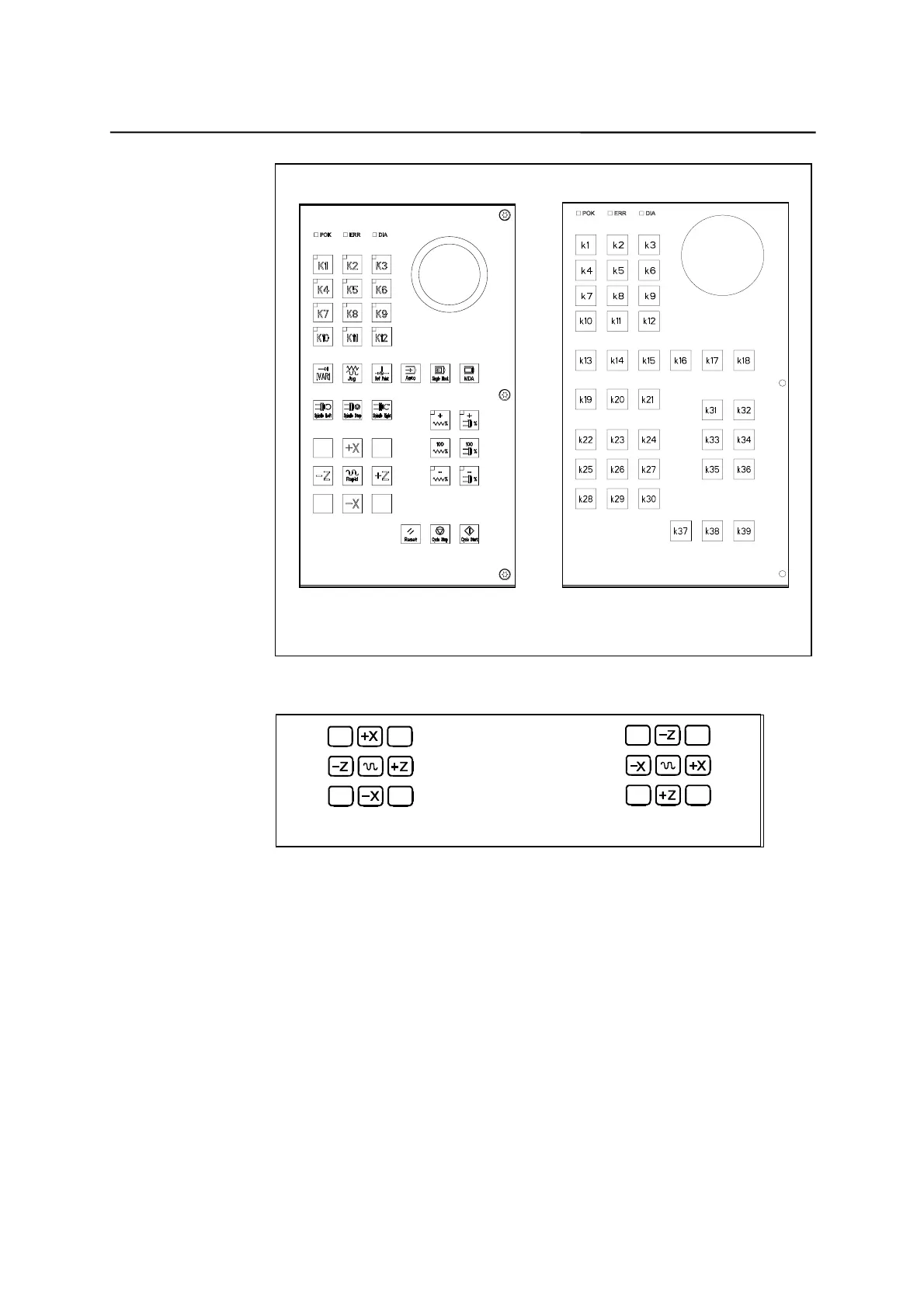

Fig. 4-3 Layout of machine control panel area
-Y
+Y
horizonal turning machine vertical milling machine
Fig. 4-4 Examples for the assignment of the axis keyboard
Layout when delivered
Key assignment
Available as accessory: Emergency
Stop Switch
K1…K39
Æ
keys 1…39
(see user interface)
