Siemens SINUMERIK 802C base line User Manual

Start-Up
SINUMERIK 802C base line
4-27
Start-Up

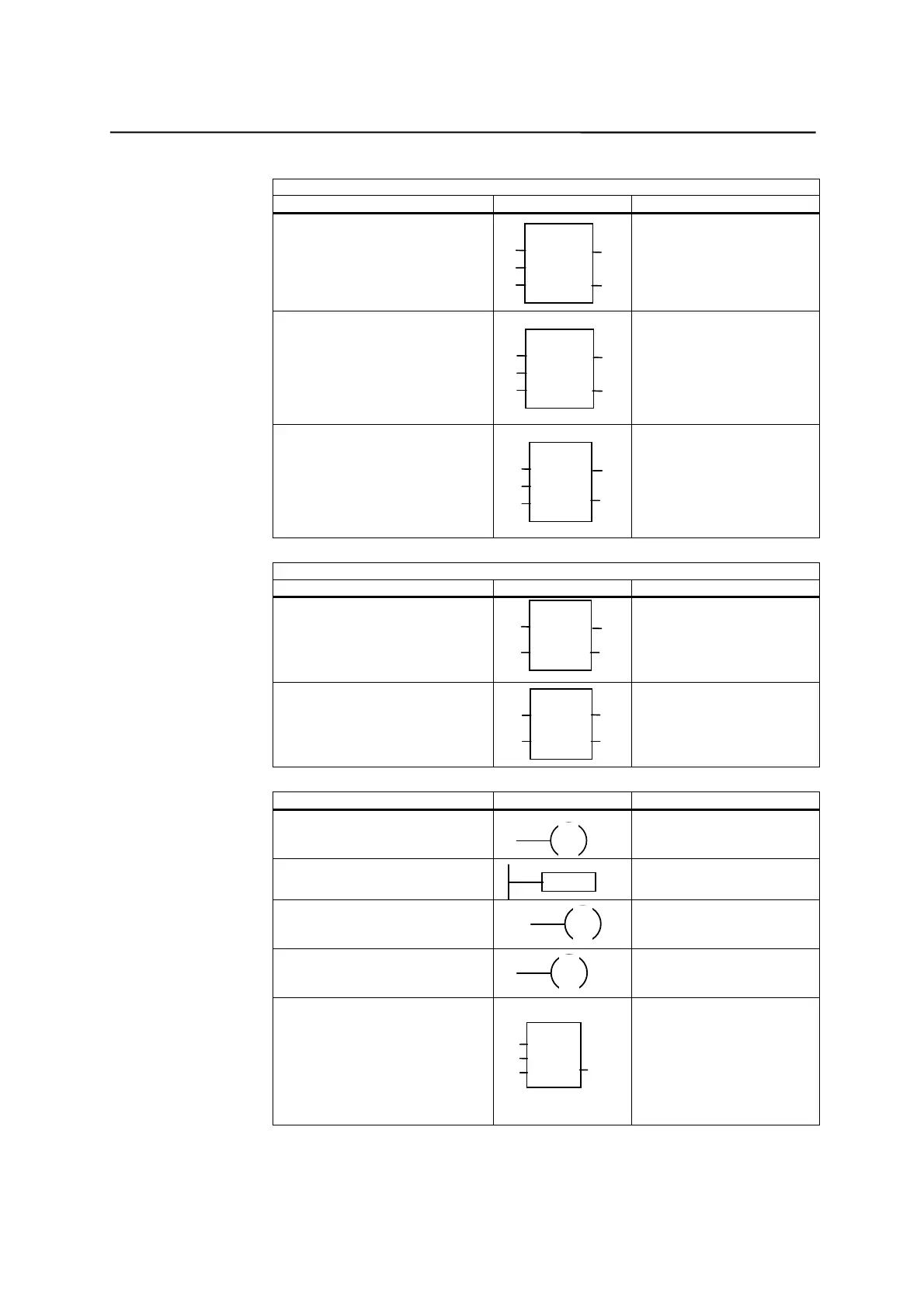

SHIFT AND ROTATE OPERATIONS
Instruction Ladder Symbol Valid Operands
Shift Right
Shift Left
If EN = 1,
a = a SR c bits
a = a SL c bits
SHL_B
IN
N
OUT
ENO
EN
Enable: EN
In: VB, IB, QB, MB, AC,
Constant, LB
Out: VB, IB, QB, MB, AC
Count: VB, IB, QB, MB,
AC, Constant, LB
Shift Right
Shift Left
If EN = 1,
a = a SR c bits
a = a SL c bits
SHL_W
IN
N
OUT
ENO
EN
Enable: EN
In: VW, T, C, IW, QW, MW,
AC, Constant, LW
Out: VW, T, C, IW, QW, MW,
AC, LW
Count: VB, IB, QB, MB,
AC, Constant, LB
DWord Shift R
DWord Shift L
If EN = 1,
a = a SR c bits
a = a SL c bits
SHL_DW
IN
N
OUT
EN
ENO
Enable: EN
In: VD, ID, QD, MD, AC,
Constant, LD
Out: VD, ID, QD, MD, AC,
LD
Count: VB, IB, QB, MB,
AC, Constant, LB
CONVERSION OPERATIONS
Instruction Ladder Symbol Valid Operands
Convert Double
Word Integer to
a Real
If EN = 1,
convert the
double word
integer i to a
real number o.
DI_REAL
IN
OUT
EN
ENO
Enable: EN
In: VD, ID, QD, MD, AC,
Constant, LD
Out: VD, ID, QD, MD, AC,
LD
Convert a Real
to a Double
Word Integer
If EN = 1,
convert the real
number i to a
double word
integer o.
TRUNC
IN
OUT
EN
ENO
Enable: EN
In: VD, ID, QD, MD, AC,
Constant, LD
Out: VD, ID, QD, MD, AC,
LD
Instruction Ladder Symbol Valid Operands
Jump to Label If EN = 1, go to
label n.
n
JMP
Enable: EN Label:
WORD: 0-127
Label Label marker
for the jump.
LBL
n
Label: WORD: 0-127
Conditional
Return from
Subroutine
If EN = 1, exit
the subroutine.
RET
Enable: EN
Conditional End If EN = 1, END
terminates the
main scan.
END
Enable: EN
Subroutine
If EN
↑
, go to
subroutine n.
SBR
x1
x2
x3
EN
n
(x... optional parameters)
Label: Constant : 0-63
