Detailed descriptions of interface signals
4.7 Channel-specific signals
Parameter Manual
360
Operating Instructions, 08/2013, 6FC5397-8EP40-0BA0
Signal state 0 or
edge change 1 →
0
No effect
Signal irrelevant
for ...
Channel status reset
Program status interrupted
Special cases,
errors, ...
All axes and spindles that were not caused to move by program or program block
(e.g. axes are moved by pressing the traverse keys on the machine control
panel) are not decelerated to zero speed with "NC stop axes plus spindles".
The program is continued at the interrupted place with NC Start.
The signal "NC stop axes plus spindles" must be pending for at least one PLC
cycle.
corresponding to
...
IS "NC stop at block limit"
IS "NC stop"
IS "Program status stopped"
IS "Channel status interrupted"
Note for the reader Function Manual Basic Functions K1
DB3200
DBX13.5
Deactivate workpiece counter
Signal(s) to channel (PLC → NCK)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 The workpiece count monitoring is deactivated with activated tool monitoring.
Signal state 0 No effect
Note for the reader Function Manual Basic Functions W1
DB3200
DBX14.0
DBX14.1
Activate handwheel 1 as contour handwheel
Activate handwheel 2 as contour handwheel
Signal(s) to channel (PLC → NCK)
Edge evaluation: No Signal(s) updated: Cyclic
Signal state 1 Handwheel 1/2 is selected as contour handwheel.
Signal state 0 Handwheel 1/2 is deselected as contour handwheel.

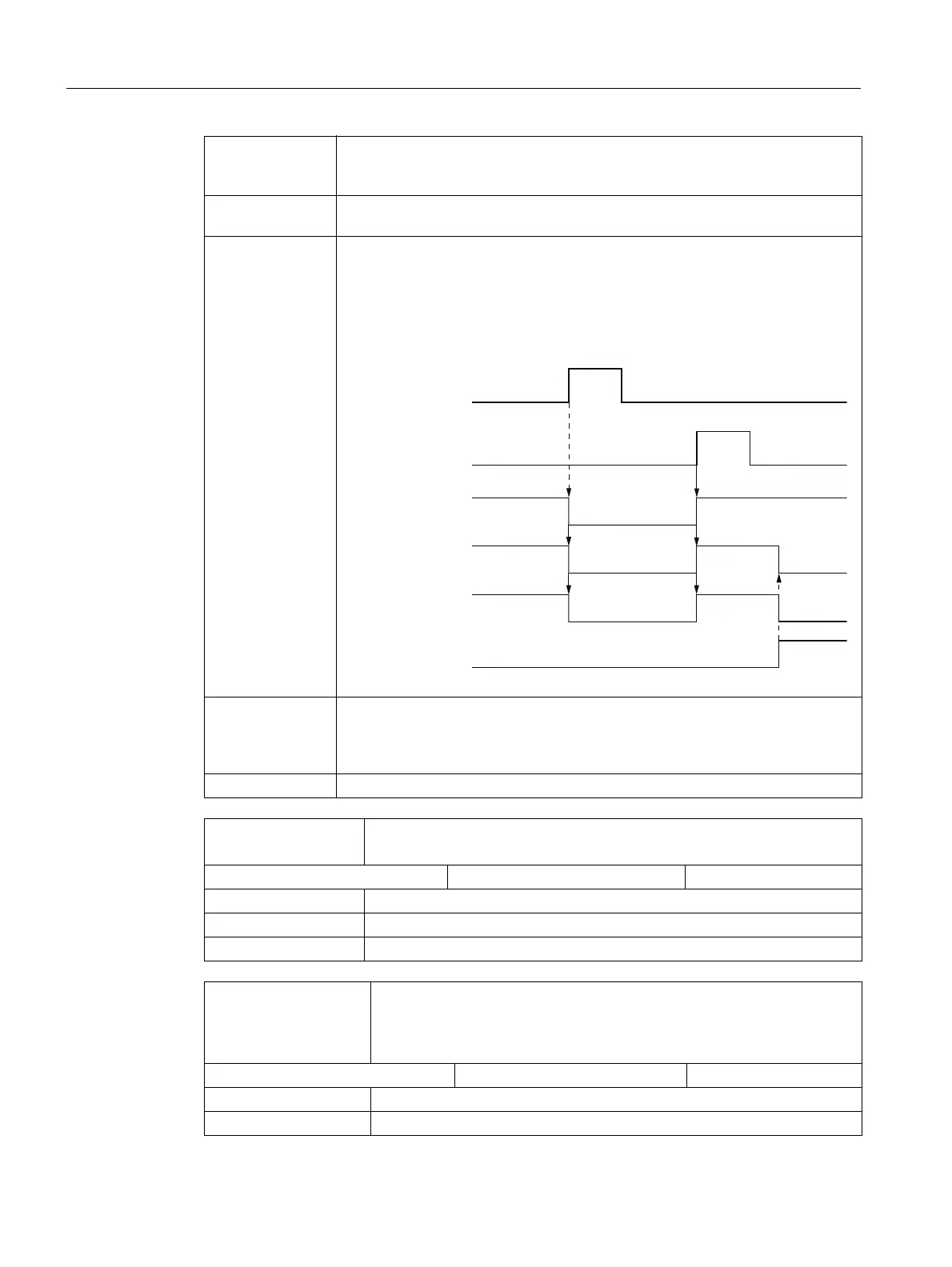

6LJQDO1&6WRSD[HV
6LJQDO1&6WDUW
3URJUDPUXQQLQJ
$[LVUXQQLQJ
6SLQGOHUXQQLQJ
%ORFNSURFHVVHG
