SINUMERIK 840C / SIMODRIVE 611–D (DA)
1.6 Dialog text
1.6.1 Notes for the operator
With many operator inputs, texts are displayed in the left two thirds of the input
line for support and for error diagnostics.

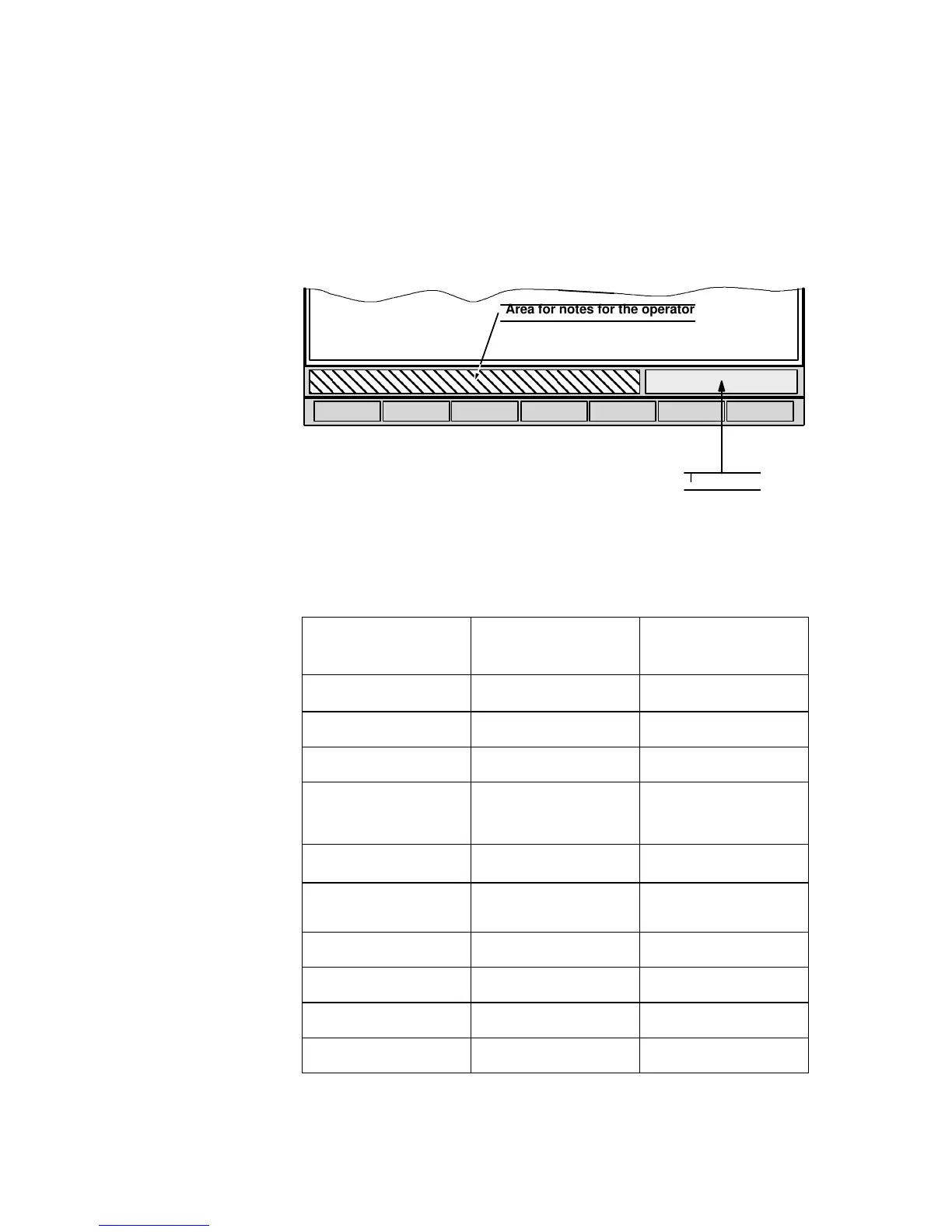

Area for notes for the operator
Input line
1.6.2 Listing of dialog texts
All notes for the operator are listed in the following table in alphabetical order.
Dialog text
Appears with the
following event
What must be done
or
What is wrong
BLOCK NOT AVAILABLE When searching for blocks
in the part program
––
BLOCK NUMBER TOO
LARGE
Generating block number Block number cannot be
greater than N9999
BLOCK STRUCTURE
WRONG
With “Correction block”
function
Cursor is at the start of the
wrong block
BLOCK TOO LONG When editing part
programs, a block must
not be longer than 120
characters
Conclude block with “LF”
CHARACTER NOT
ALLOWED
Taking over an input value
(e.g. with the input key)
Input value has the wrong
format
CHARACTER NOT
AVAILABLE
When searching for
characters in part
programs
––
COMMENTS ERROR Occurs when editing if the
brackets do not match up
Check the number of
brackets set
CYCLE DISABLE When handling cycles
(editing, copying, etc.)
Remove “Cycle disable”
interface signal
CYCLE IN THE EPROM Information while handling
cycles
––
DATA TRANSMISSION
RUNNING
Editing part programs Stop interface
