Siemens SINUMERIK 840D

OCTOBER 2005 SPECIFICATIONS 19
SIEMENS MAINTENANCE MANUAL
1.2.1 2216 & 3016
TABLE

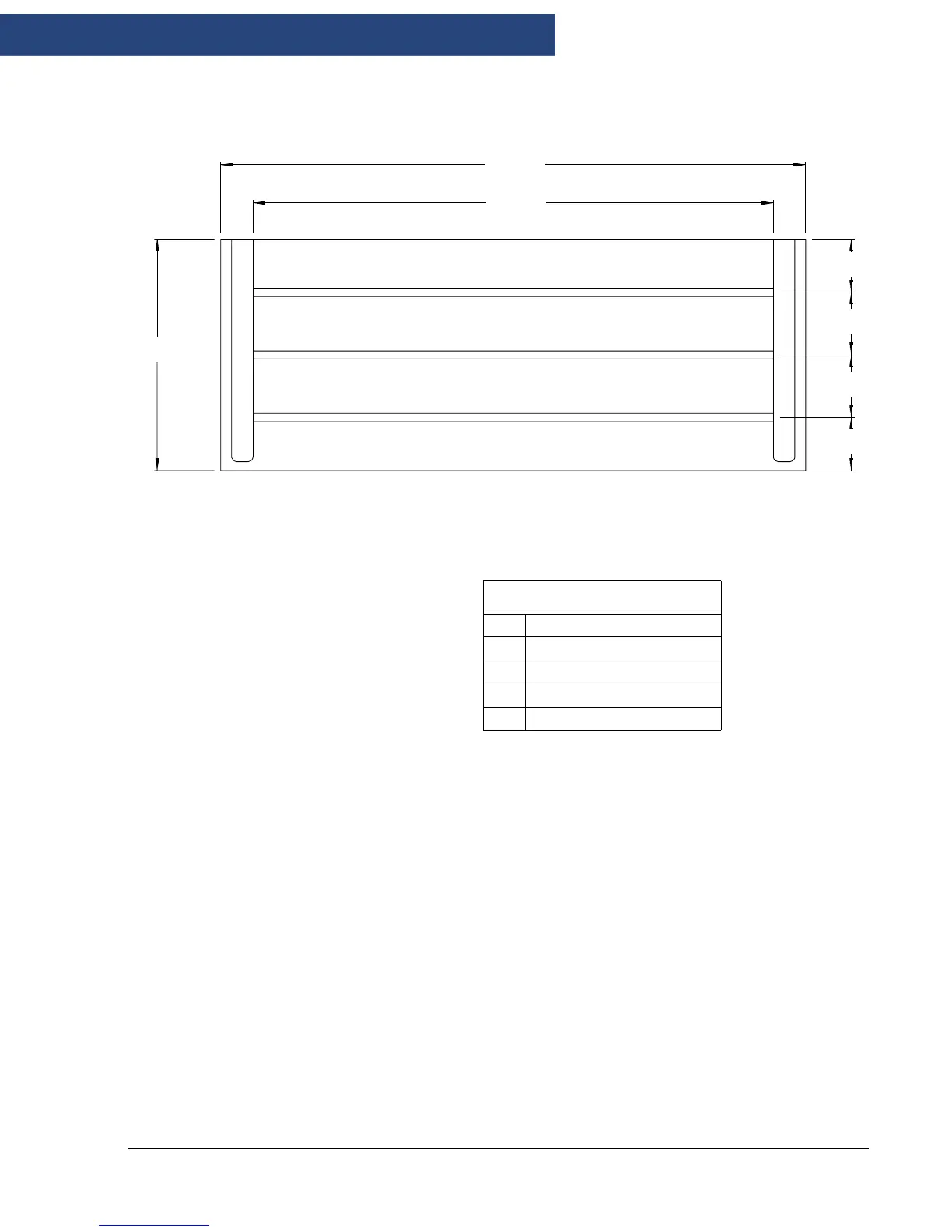

Figure 1-9: 2216 & 3016 Table
A
B
C
D
D
E
E
Table 1-10: 2216 & 3016 Table Dimensions
VMCS 2216 & 3016
A 16.00" (406.4 mm)
B 40.50" (1028.7 mm)
C 36.00" (914.4 mm)
D 3.67" (93.22 mm)
E 4.33" (109.98 mm)
