FADAL MACHINING CENTERS
60 INSTALLATION PROCEDURE MAN-0126_R1
3.9 GENERAL Detach column breaks from spindle head and tool changer arm.

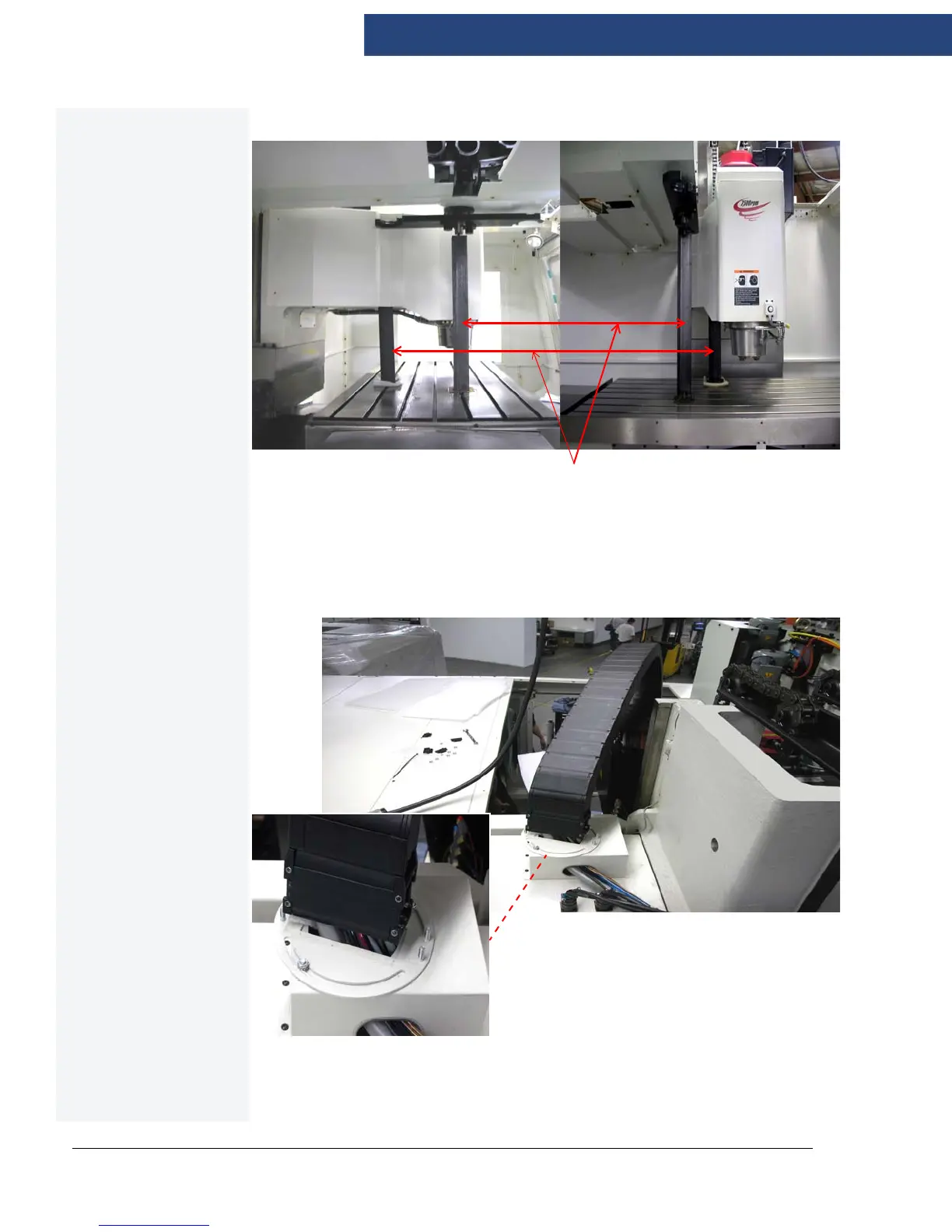

Figure 3-13: Column breaks
Place the cable carrier (black flexible arc on top of the machine) onto appropriate
screws and tight them with nuts.
Figure 3-14: Cable carrier
Column breaks
side view
front view
