Siemens SINUMERIK 840D

OCTOBER 2005 SPECIFICATIONS 21
SIEMENS MAINTENANCE MANUAL
1.2.3 4020 TABLE

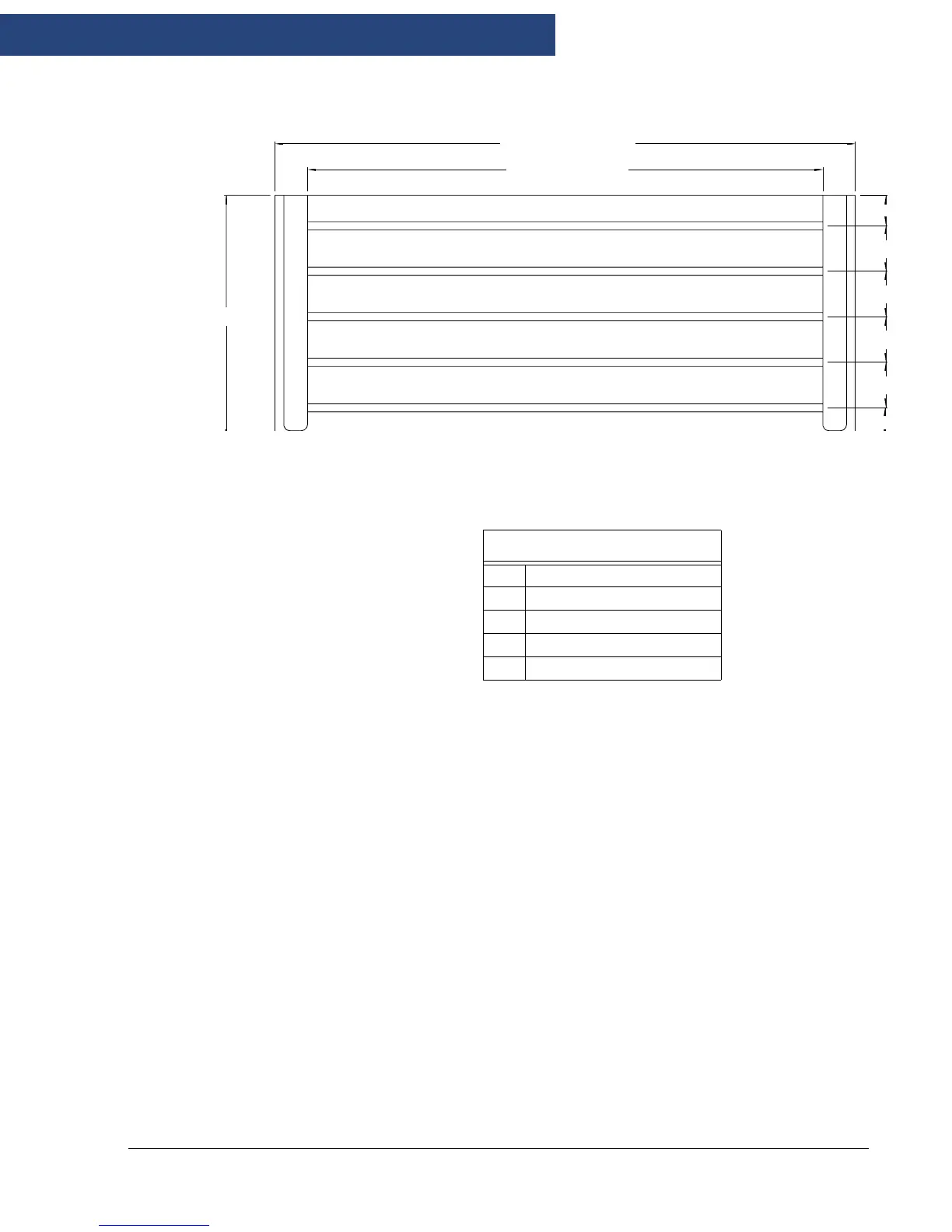

Figure 1-11: 4020 Table
A
B
C
D
D
E
E
E
E
Table 1-12: 4020 Table Dimensions
VMC 4020
A 20.00” (508 mm)
B 49.00” (1244.66 mm)
C 43.50” (1104.9 mm)
D 2.52” (64 mm)
E 3.740” (95 mm)
