Siemens SINUMERIK 840D

FADAL MACHINING CENTERS
20 SPECIFICATIONS MAN-0126_R1
1.2.2 3020 & 4525
TABLE

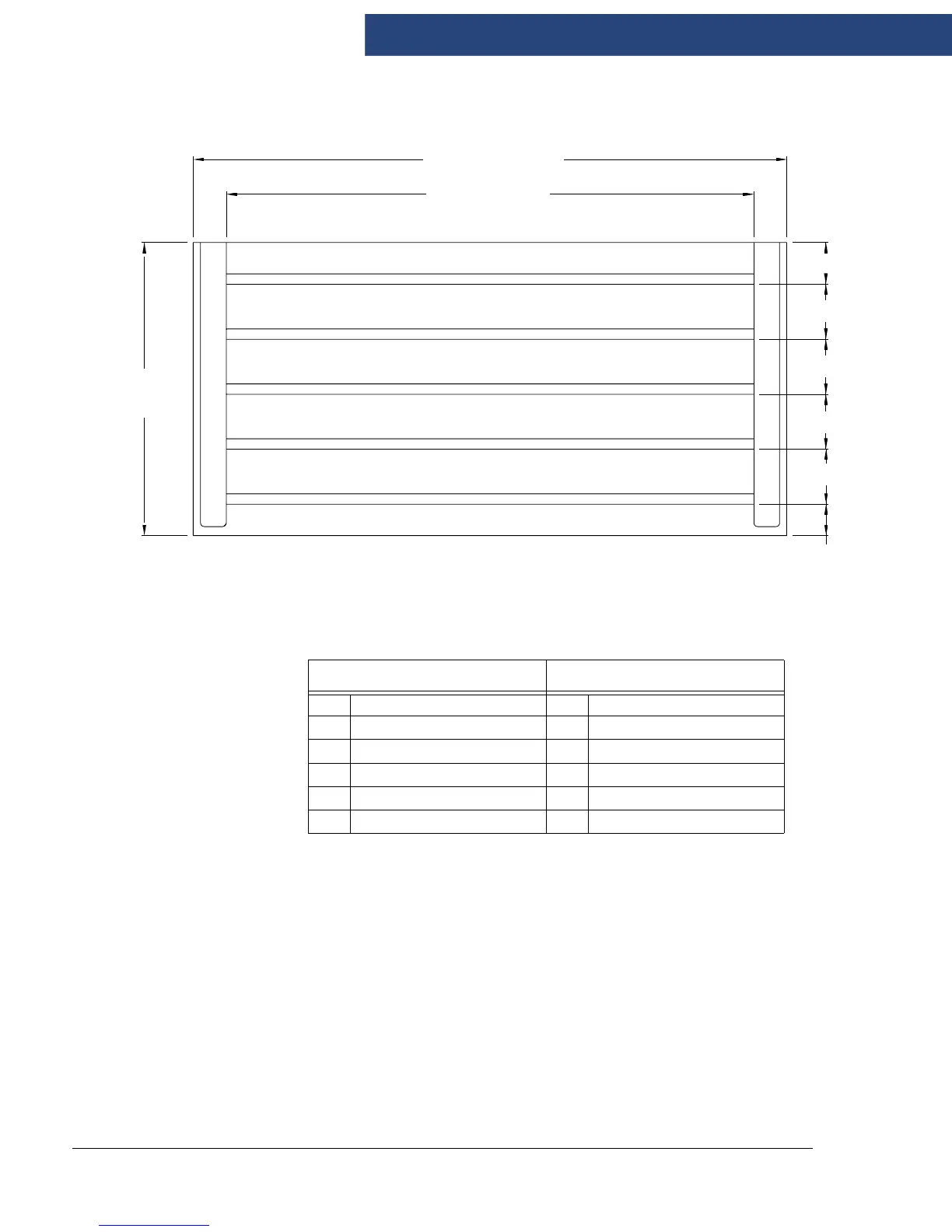

Figure 1-10: 3020 & 4525 Table
A
B
C
D
E
E
E
E
F
Table 1-11: 3020 & 4525 Table Dimensions
VMC 3020 VMC 4525
A 20.00” (508 mm) A 25.00” (635 mm)
B 41.75” (1060.45 mm) B 54.76” (1390.90 mm)
C 36.00” (914.40 mm) C 49.00” (1244.60 mm)
D 2.52” (64.0 mm) D 2.658” (67.5mm)
E 3.74” (95.0 mm) E 4.921” (124.99 mm)
F 2.52” (64.0 mm) F 2.658” (67.5mm)
