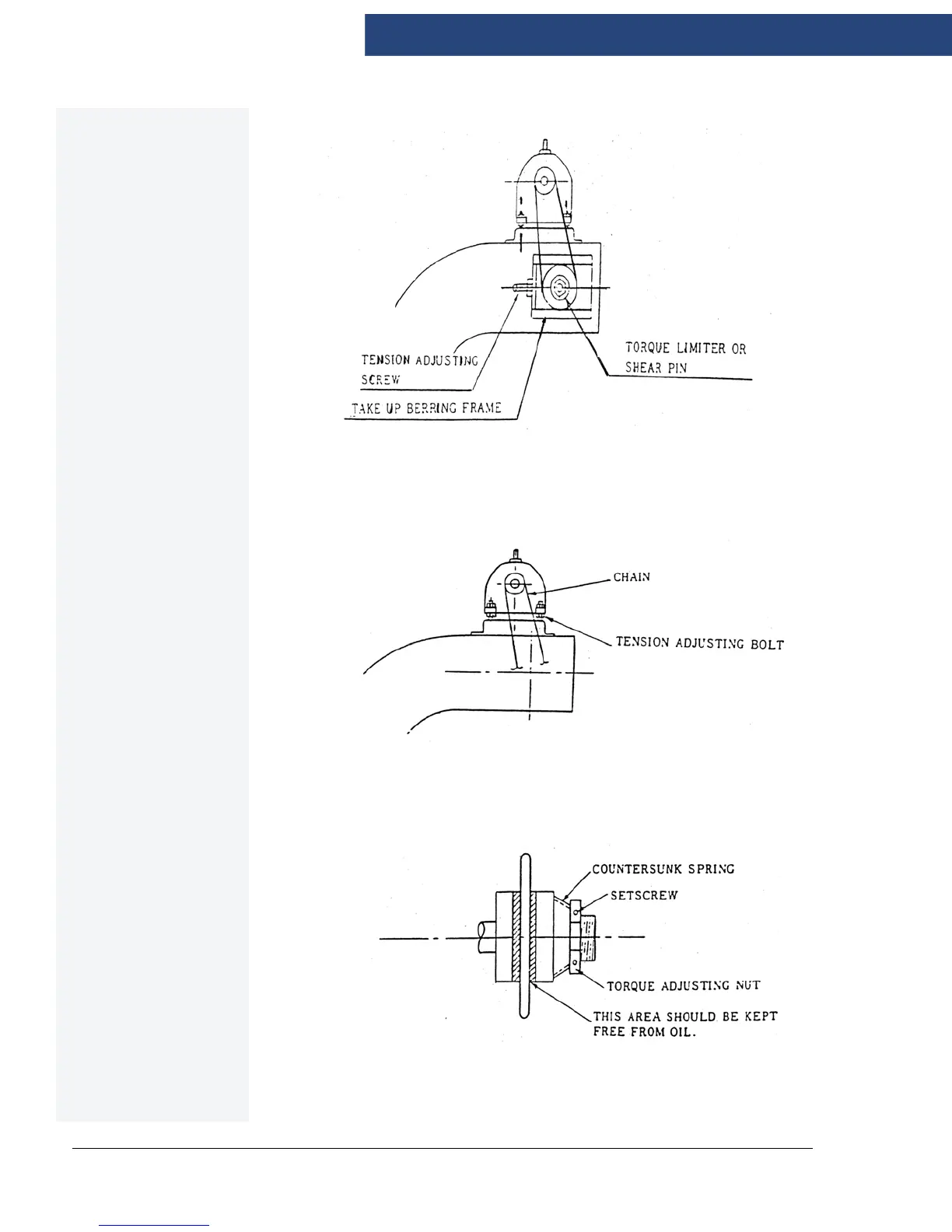

Figure 4-3: Adjust Take-Up Bearing
3. Check roller chain between motor and conveyor for proper alignment and correct
tension.
Figure 4-4: Check Roller Chain
4. The greatest care should be exercised to keep friction surface of torque limiter free
from oil when lubricating roller chain.
Figure 4-5: Torque Limiter
5. Lubricate conveyor chain and roller chain every 150 Hours.
