Introduction
1.11 Device Overview
PS2 Troubleshooting Guide
10 Service Manual, 03/2017, A5E36661550-AA
Flameproof Enclosure
Loosen the screw below the display and flip open the cover to access the push buttons.
Input: Supply air PZ
Restrictor Y2
1)
Output: Actuating pressure Y1
Friction clutch adjustment wheel
Display
Connecting terminals of option modules
Output: Actuating pressure Y2
1)
Connecting terminals of basic electronics
Buttons
Safety catch
Transmission ratio selector
2)
Ground terminal
Restrictor Y1
1)
for double-acting actuators
2)
only possible when positioner is open

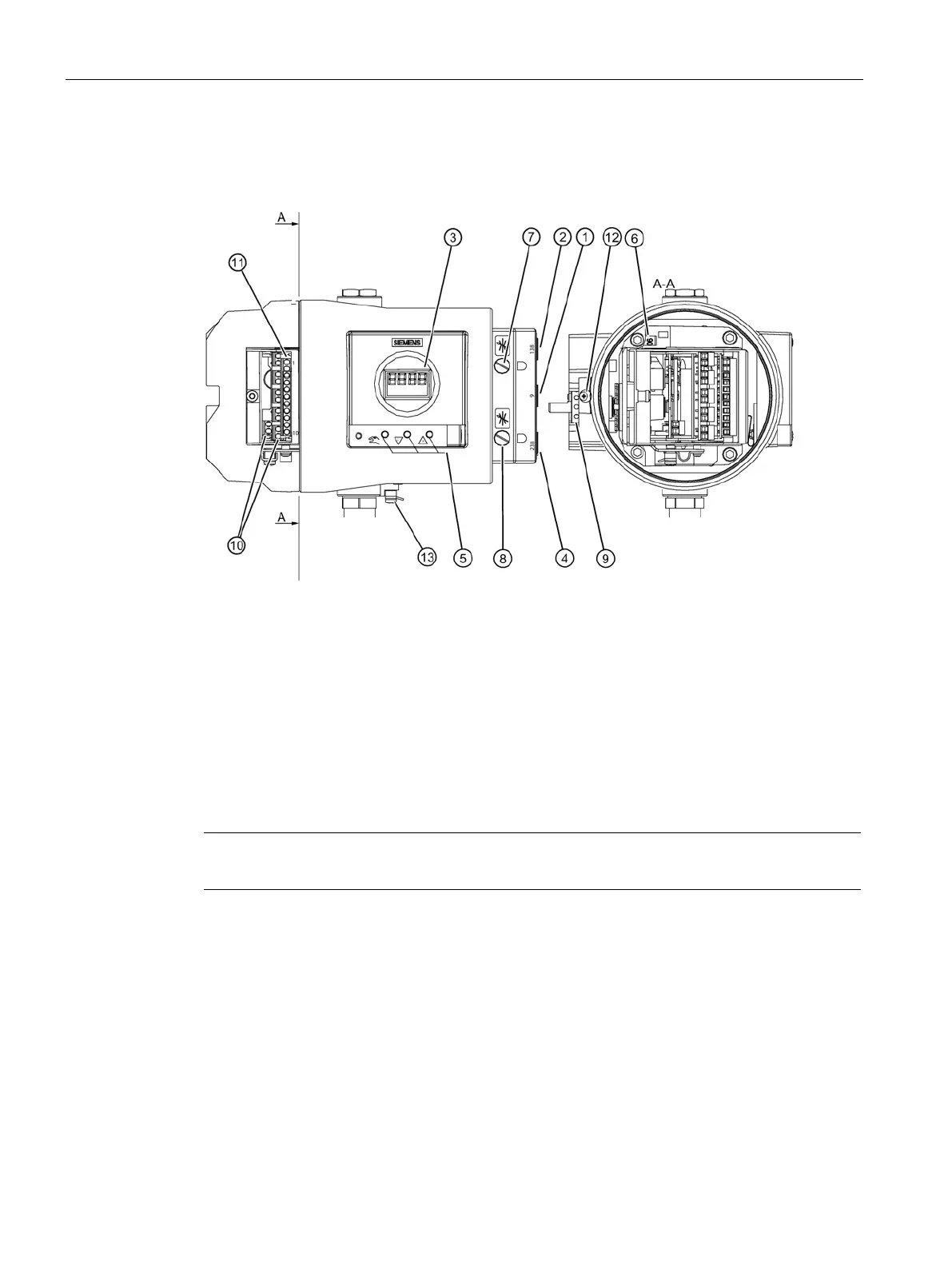

Figure 1-2 View of the positioner in the flameproof enclosure, cover opened
Note
The friction clutch is black in color.
See also
Initialization Procedure (Page 50)
