PS2 Troubleshooting Guide
Service Manual, 03/2017, A5E36661550-AA
49
Appendix A
A
A.1
Transmission Ratio/Slide Bar

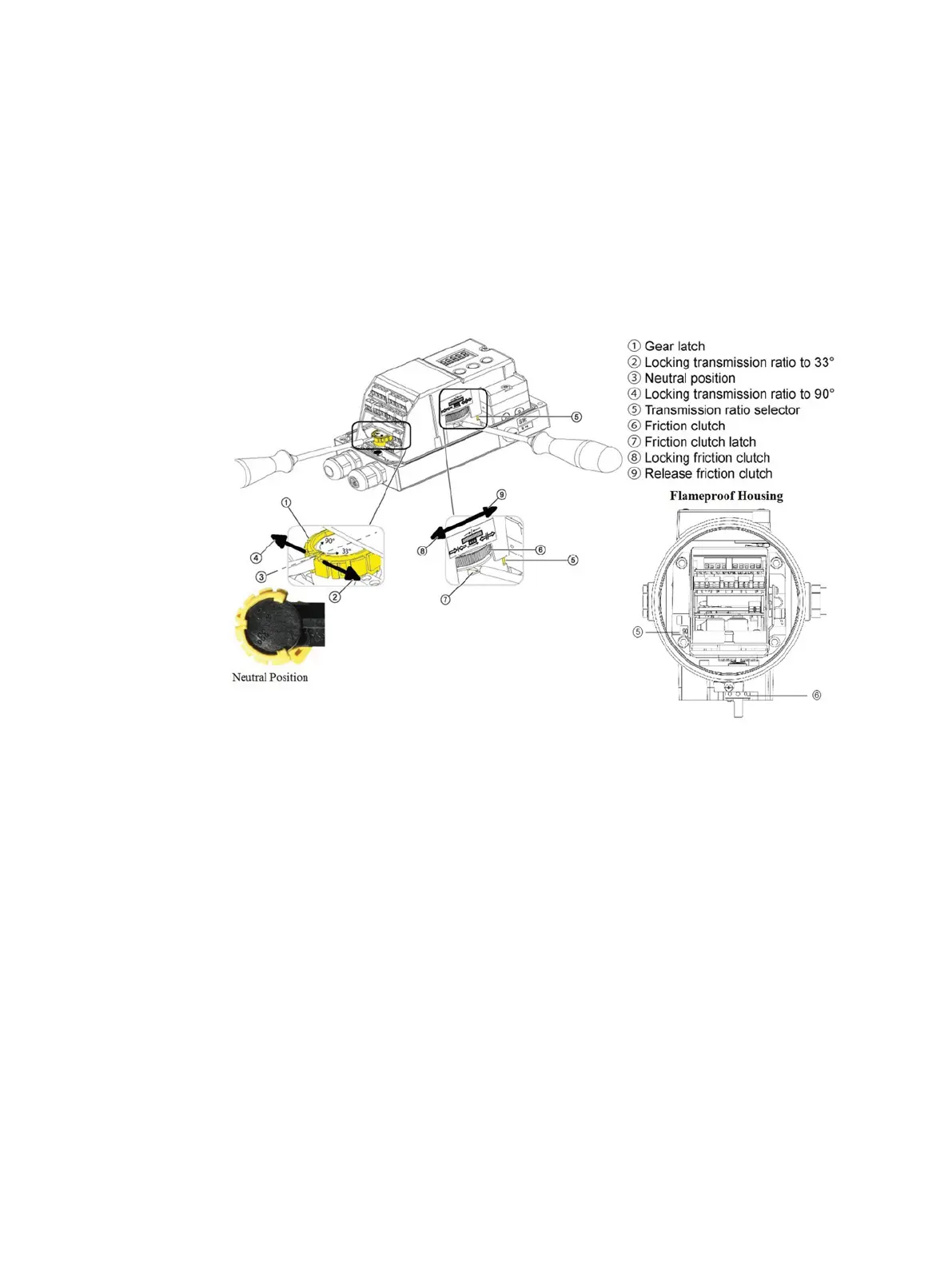

There are two mechanical adjustments for 33 and 90 degrees on the positioner.
The important information to remember is the order of which the adjustments are completed.
Verify the Gear Latch
is in the neutral positon which is shown with number .
If not, use a flat head screwdriver to move the latch back to neutral as shown above.

Table of Contents

Other manuals for Siemens SIPART PS2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Siemens SIPART PS2 and is the answer not in the manual?

Siemens SIPART PS2 Specifications

General IconGeneral
Supply Pressure1.4 to 7 bar (20 to 100 psi)
Enclosure RatingIP66/NEMA 4X
Communication ProtocolsHART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure0 to 100% of supply pressure
Hazardous Area CertificationATEX, IECEx, FM, CSA
TypeElectropneumatic
Input Signal4-20 mA
Rotation Angle30° to 90°
Operating Temperature-40°C to +80°C
MountingLinear and rotary actuators
Air ConsumptionTypically less than 0.1 kg/h
