Siemens SIPART PS2 Service Manual

Troubleshooting Procedures
3.5 Booster(s) Not Properly Tuned
PS2 Troubleshooting Guide
18 Service Manual, 03/2017, A5E36661550-AA
3.5
Booster(s) Not Properly Tuned
Pneumatic volume boosters should always be equipped with a bypass needle valve. This
needle valve can be external or integral to the booster housing. Needle valve adjustments
are necessary to achieve proper valve response.
● If PS2 is in Auto and currently operating the valve:
– Rotate the needle valve counter-clockwise to slowdown response and reduce
overshoots.
– Rotate the needle valve clockwise to increase valve response
– Re-initialize PS2 after any needle valve adjustments; see Initialization Procedure
(Page 50)(see Appendix).

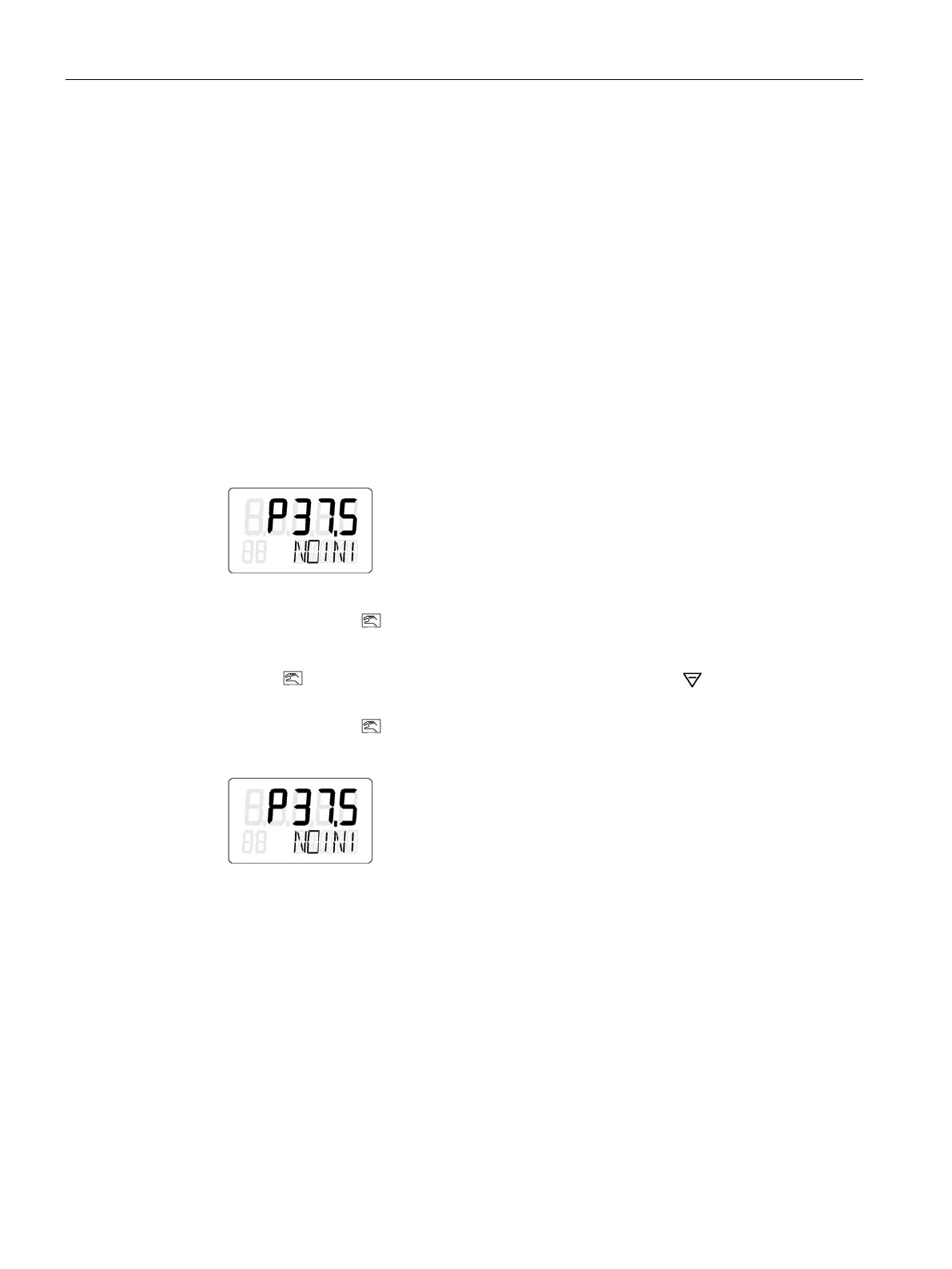

● A volume booster must be setup BEFORE initializing a valve positioner. The P-manual
mode ("NOINI" flashing), see display example below, can be used to perform this setup.
The P-manual mode will appear once proper electrical power is applied to a new PS2
valve positioner.
● If PS2 is currently initialized, activate "NOINI" mode:
– Press and hold
button to enter configuration mode
– Configuration parameter number appears in lower left corner of display.
– Use
button to reach parameter: "4 INITA".Press and hold button until "no"
appears on top of display.
– Press and hold
button to exit configuration mode
– Display will be similar to the following (numerical value will vary).

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
