Siemens SIPART PS2 Service Manual

Introduction
1.11 Device Overview
PS2 Troubleshooting Guide
12 Service Manual, 03/2017, A5E36661550-AA

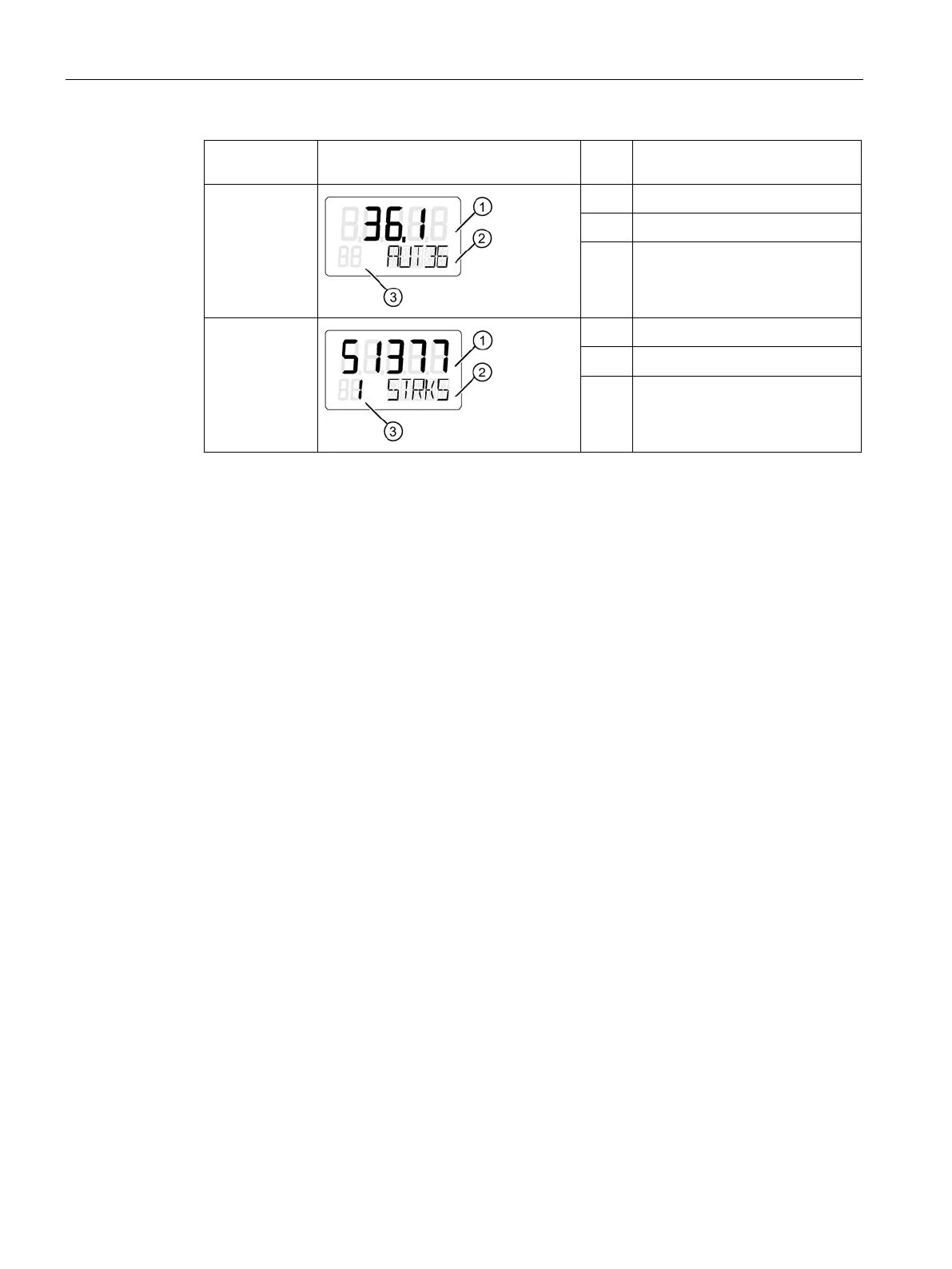

Operating
Mode
Representation in the
display
Pos.
Legend
Automatic
(AUT)
①
Position [%]
②
Setpoint [%]
③
Fault message
Diagnostics
①
Diagnostic value
②
Diagnostic name
③
Diagnostic number

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
