Operation
8.1 Local User Interface (LUI)
104
Quick Start
Compact Operating Instructions, 05/2018, A5E31805656-06
Views structure the access to the functions of the device or its components. Only the
operator control options corresponding to the configuration of your device are output on the
display.
Main view This view contains the measured value display of all components, the expanded measured
value display, the process value display as well as the list of the current messages. The two
measured-value displays and the list of current messages can be switched from read mode to
selection mode. In selection mode, you can select a component or access the subordinate
views.
Switch between displays of the main view with the buttons <
>/<
>.
Switch to selection mode with <ENTER>.
Component selection with the buttons <▼>/<▲>.
Navigation view Each component has an identically structured main menu with six menu entries.
The parameter view is displayed after a maximum of four submenus.
Select the menus with <ENTER> or <
>. Navigation with arrow key, number key, and period
Parameter view Displaying windows, especially for the following purposes: Changing settings, starting wizards,
displaying information.
Operation with arrow keys and/or numeric keys, <ENTER> or <ESC>.
Return to main view with <MEAS>.

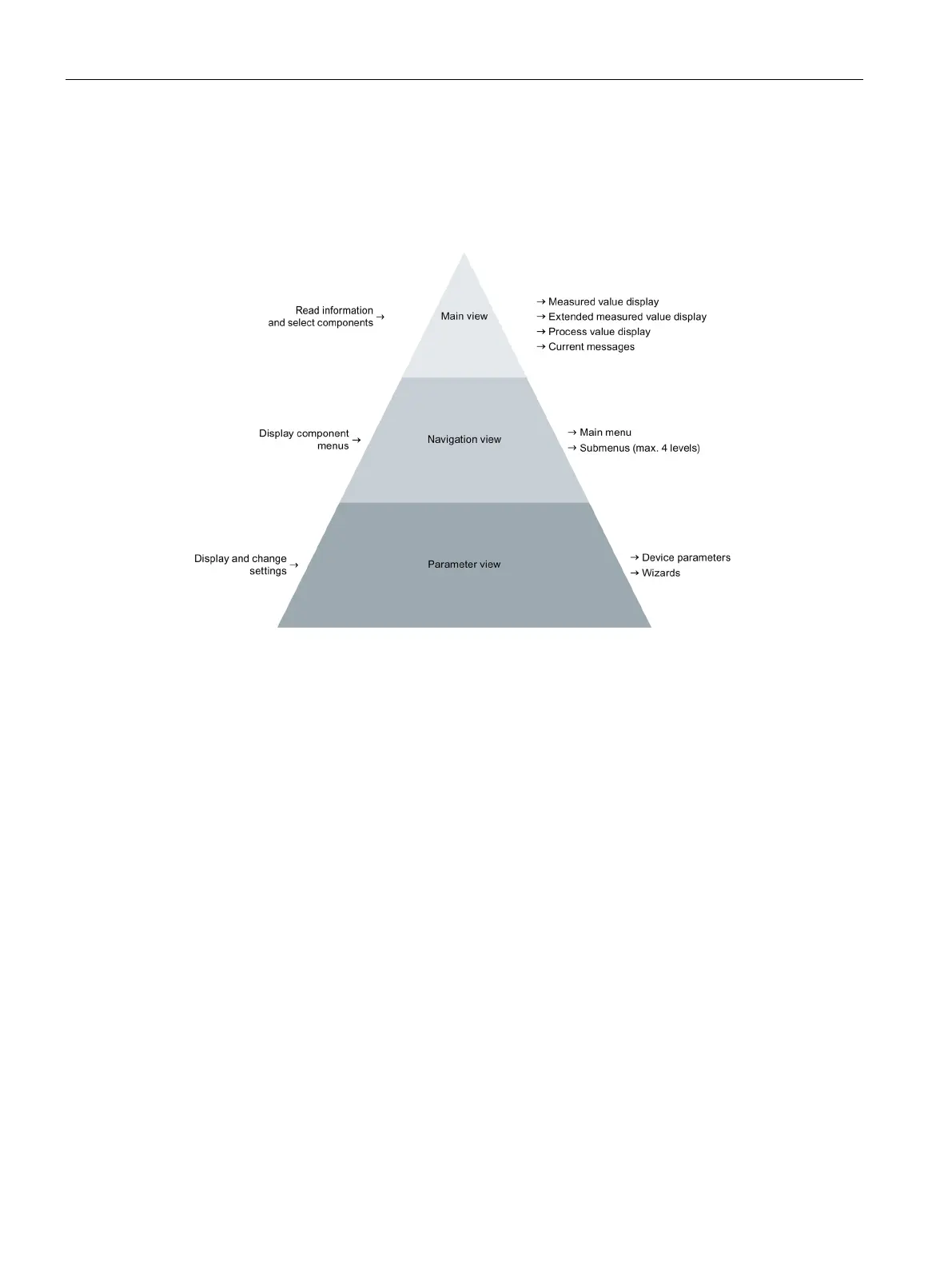

Figure 8-2 Views of the Local User Interface
