2 PROFINET IO in SIPROTEC
2.5 Assignment of IO Modules to SIPROTEC Data Objects
40 SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
Example as Shown in Figure 2-17
The SIPROTEC device delivers 18 measured values (MV#1 through MV#18). However, only 12 measured
values (current, voltage) are to be transmitted and assigned to the PROFINET IO mapping in DIGSI (MV#1
through MV#12). In this case, either 6 measured values respectively are taken over into 2 IO modules
measured values 06 from the GSDML file of the SIPROTEC device, or 12 measured values in one IO module
measured values 12 of the IO controller parameterization software.

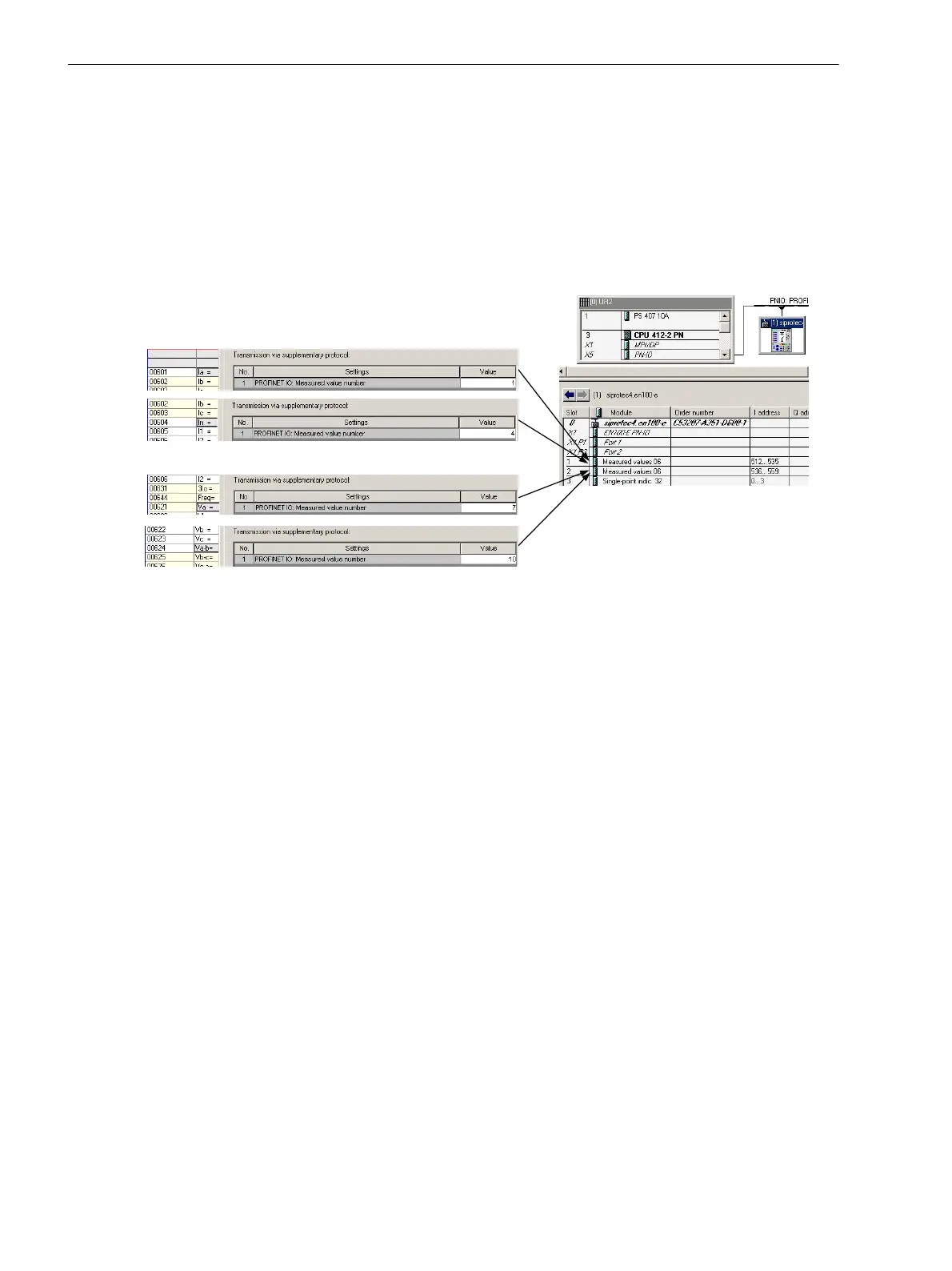

Figure 2-18 Parameterization Example of Assigning the IO Modules to SIPROTEC Data Objects
SIPROTEC-IO-Device
Configuration software
(DIGSI)
IO-Controller
Configuration software
(e.g. Step7)
com_profinet-io_profile_us.book Page 40 Friday, August 17, 2012 1:40 PM
