3 Parameterization
3.2 Parameterization with DIGSI
65SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
3.2.3 Customizing the Routings
✧ In the Settings dialog (see Figure 3-12), double-click the function Matrix I/O (Configuration Matrix).
The Settings - Masking I/O (Configuration Matrix) dialog opens.

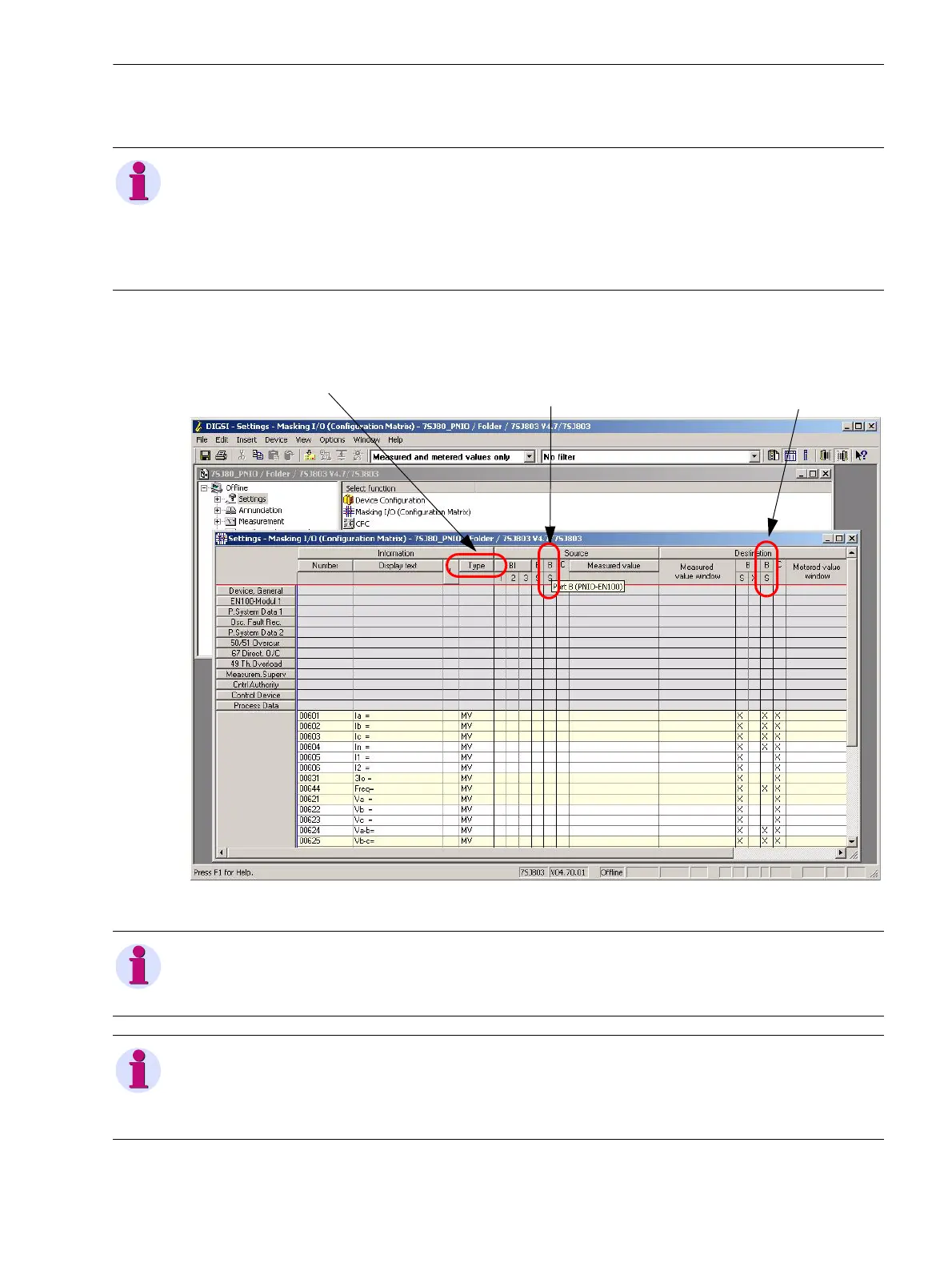

Fig. 3-14 DIGSI Configuration Matrix with Columns for Setting the System Interface
NOTE
The device features 2 system interfaces.
The first system interface is used for the IEC 61850 protocol. Its parameterization is described in the EN100
manual in the chapter on IEC 61850.
The second system interface is used for the PROFINET IO protocol.
Information
type
Port F or B
PROFINET IO
Source system interface
Port F or B
PROFINET IO
Destination system interface
NOTE
In most SIPROTEC devices, port B is used as the source and destination of the system interface. Port F is
used in exceptional cases, e.g. for 7SC80.
NOTE
If you do not wish to display all columns and lines in the Configuration Matrix for setting the system interface
or for your information, you can minimize them by double-clicking the respective button. To make entries in
minimized columns, double-click the corresponding button to maximize the column.
com_profinet-io_profile_us.book Page 65 Friday, August 17, 2012 1:40 PM
