3 Parameterization
3.3 Parameterizing the IO Controller
79SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
✧ Define the processing priority of the alarm OB used in the PLC:

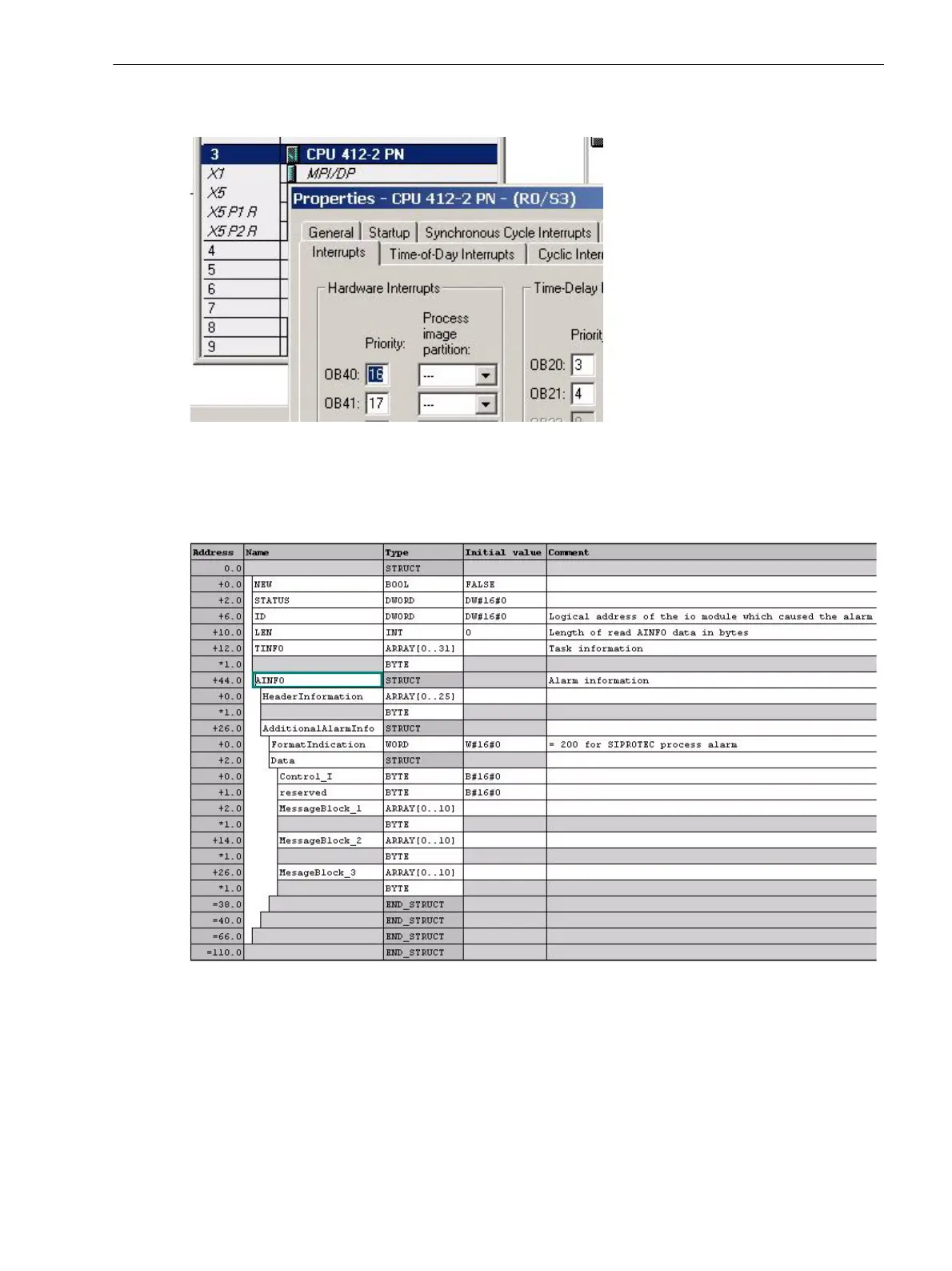

Figure 3-28 Processing priority of the alarm OBs
✧ Insert the required alarm OB into the S7 program.
✧ Define a data block to accommodate the alarm information, for example DB140:
Figure 3-29 Data block for analyzing the process alarm
