Siemens SIRIUS 3RT2.1 Series System Manual

SIRIUS 3RT2 contactors/contactor assemblies
2.9 Dimension drawings (dimensions in mm)
SIRIUS Innovations
292 System Manual, 01/2011, A8E56203870002-03

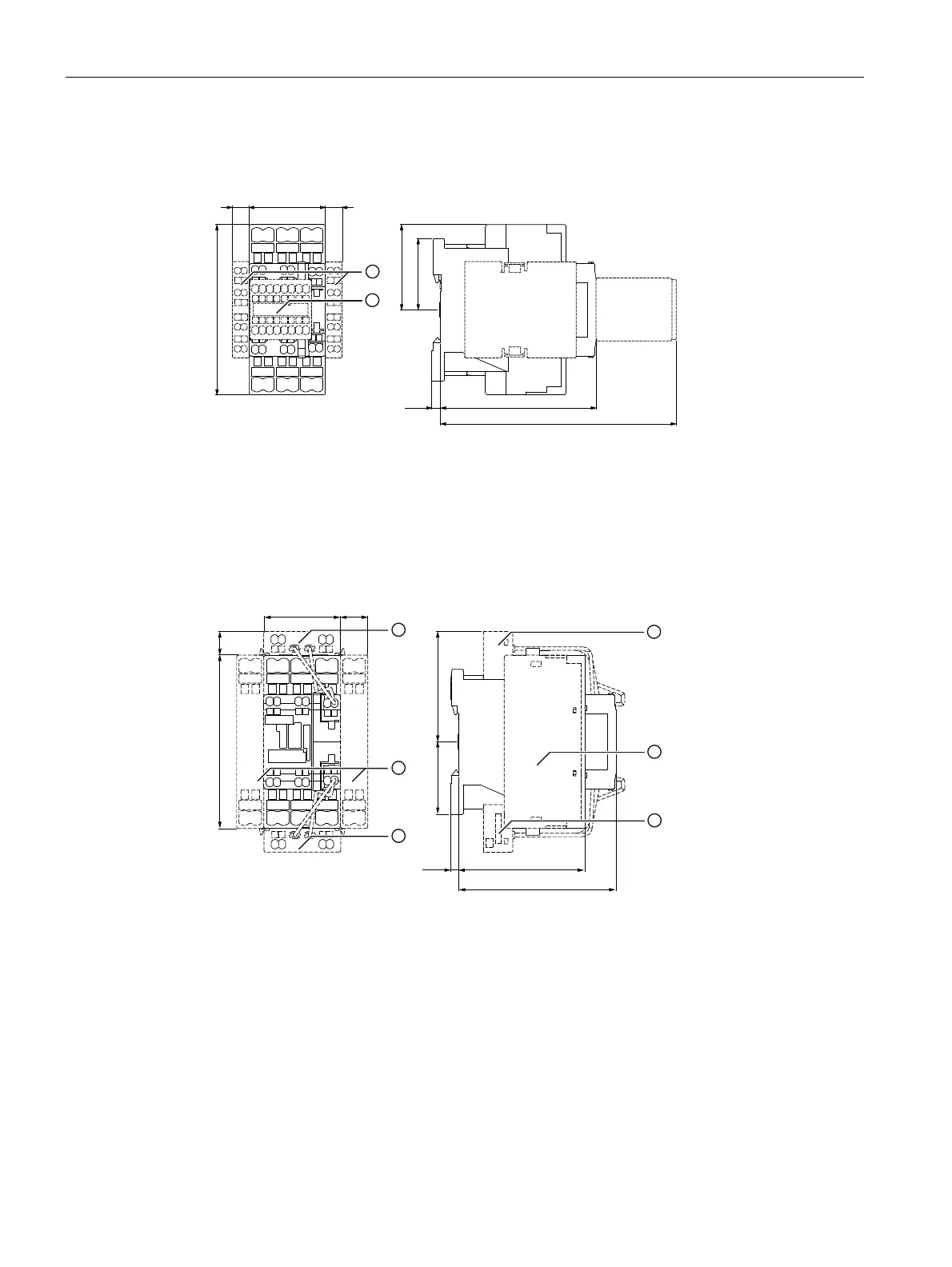

3RT2.2.-2/3RT202.-.....-0LA2 contactors (3-pole) in spring-loaded connection system with
accessories mounted






$&'&
$&'&



1 Laterally mountable auxiliary switch block 3RH2921-2DA.. / -2DE..
2 Auxiliary switch block for mounting on the front 3RH2911-2FA.. / -2GA.. / -2HA.. / -2NF..
Figure 2-48 3RT2.2.-2 and 3RT202.-.....-0LA2 contactors (spring-loaded connection system) with
auxiliary switch blocks mounted









$&'&
$&'&




4-pole contactor for switching resistive loads 3RT232. 3
4-pole pole-changing contactor for changing
the polarity of hoisting gear motors (2 NO
contacts and 2 NC contacts)
3RT252.
4 Coil terminal module (from above/from below) 3RT2926-4RA12/-4RB12
Figure 2-49 3RT2.2.-2 and 3RT202.-.....-0LA2 contactors (spring-loaded connection system) with
accessories mounted
