Siemens SIROTEC System Manual

Hardware
6.2 Interfaces
Hydraulic Drive
208 System Manual, 04/2015, 6SL3097-4BA00-0BP1
6.2.4
X241 and X242 pressure sensors on the cylinder side (A/B)
Two pressure sensors are provided for each axis to determine the cylinder pressure at the A
and B sides. The assignment at the connectors is fixed.
The pressure sensors are supplied from the 26.5 V supply. A maximum of 50 mA is available
for each sensor. The supply voltage is short-circuit proof.

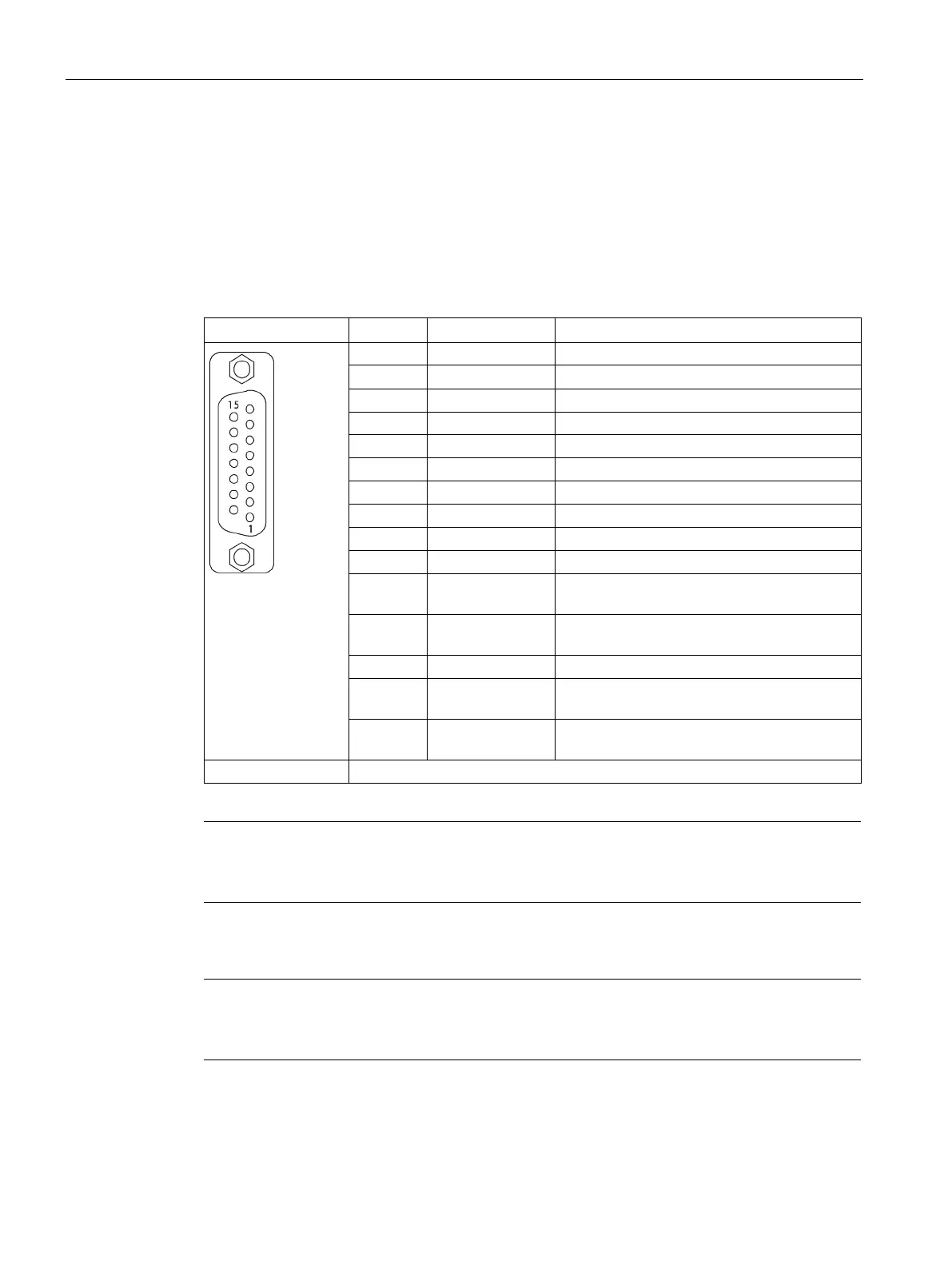

Table 6- 6 X241/X241: Pressure sensors on the cylinder side, axis 1 or axis 2
PIN
Signal name
Function
1
P26.5DS
Supply voltage, pressure sensor +26.5 V
2 P26.5DS Supply voltage, pressure sensor +26.5 V
3
-
Not assigned
4
-
Not assigned
5
M
Supply voltage, pressure sensor ground
6
-
Not assigned
7
-
Not assigned
8
-
Not assigned
9
M
Supply voltage, pressure sensor ground
10
M
Auxiliary pin ground
11 PISTBN1 or
PISTBN2
Analog actual value pressure signal,
reference potential, B side, axis 1 or axis 2
12 PISTBP1 or
PISTBP2
Analog actual value pressure signal,
0 … +10 V, B side, axis 1 or axis 2
13
M
Auxiliary pin ground
14 PISTAN1 or
PISTAN2
Analog actual value pressure signal,
reference potential, A side, axis 1 or axis 2
15 PISTAP1 or
PISTAP2
Analog actual value pressure signal,
0 … +10 V, A side, axis 1 or axis 2
Connector type:
15-pin Sub-D socket
Note
Pressure sensors with current output
You must use a signal converter upstream if you use pressure sensors with current output.
Cables
Note
Maximum cable lengths
The maximum permissible cable length is 40
m.
