Commissioning
4.13 Configuration - BICO interconnection
Hydraulic Drive
68 System Manual, 04/2015, 6SL3097-4BA00-0BP1
Configuration - BICO interconnection
Make the following selection with both of these checkboxes:

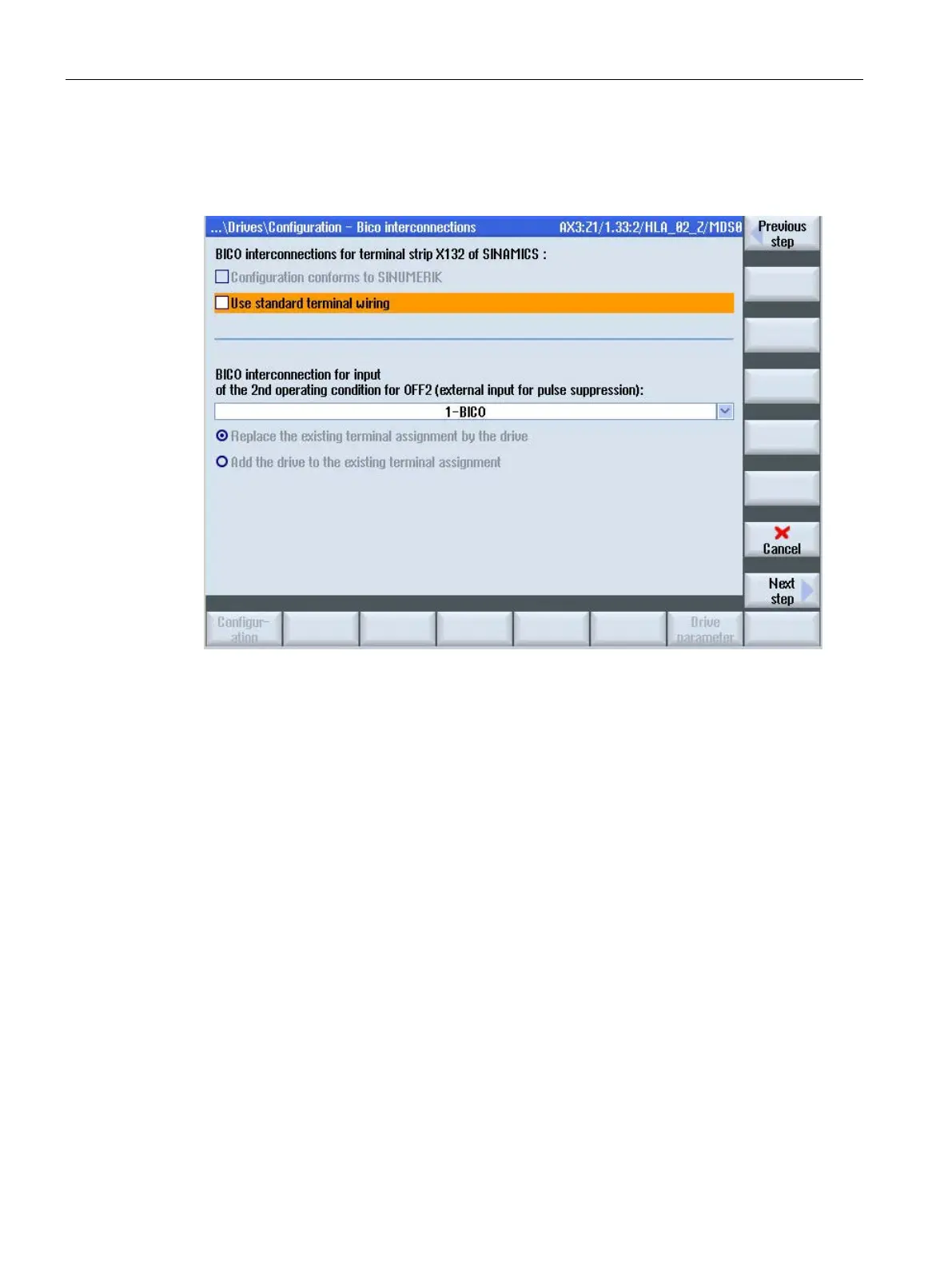

Figure 4-13 Configuration - BICO interconnection
● Default setting: "Configuration is in conformance with SINUMERIK"
This means that the BICO interconnections for the terminal wiring are set in such a way
that all releases and responses communicate correctly.
If the option is not activated (check box is not selected), then changes have been made in
the BICO interconnection in relation to the standard interconnection. If these changes
were not intended you can use the "Set standard terminal wiring set" option to restore the
SINUMERIK compliant interconnection.
● Option: "Set standard terminal wiring"
Enable this option in order to set the standard terminal wiring. This means that the
configuration is interconnected in compliance with SINUMERIK.
