Commissioning
4.9 Configuration - calculations
Hydraulic Drive
62 System Manual, 04/2015, 6SL3097-4BA00-0BP1
4.9
Configuration - calculations
This dialog is only displayed in the change run if previously data were changed in the
dialogs.

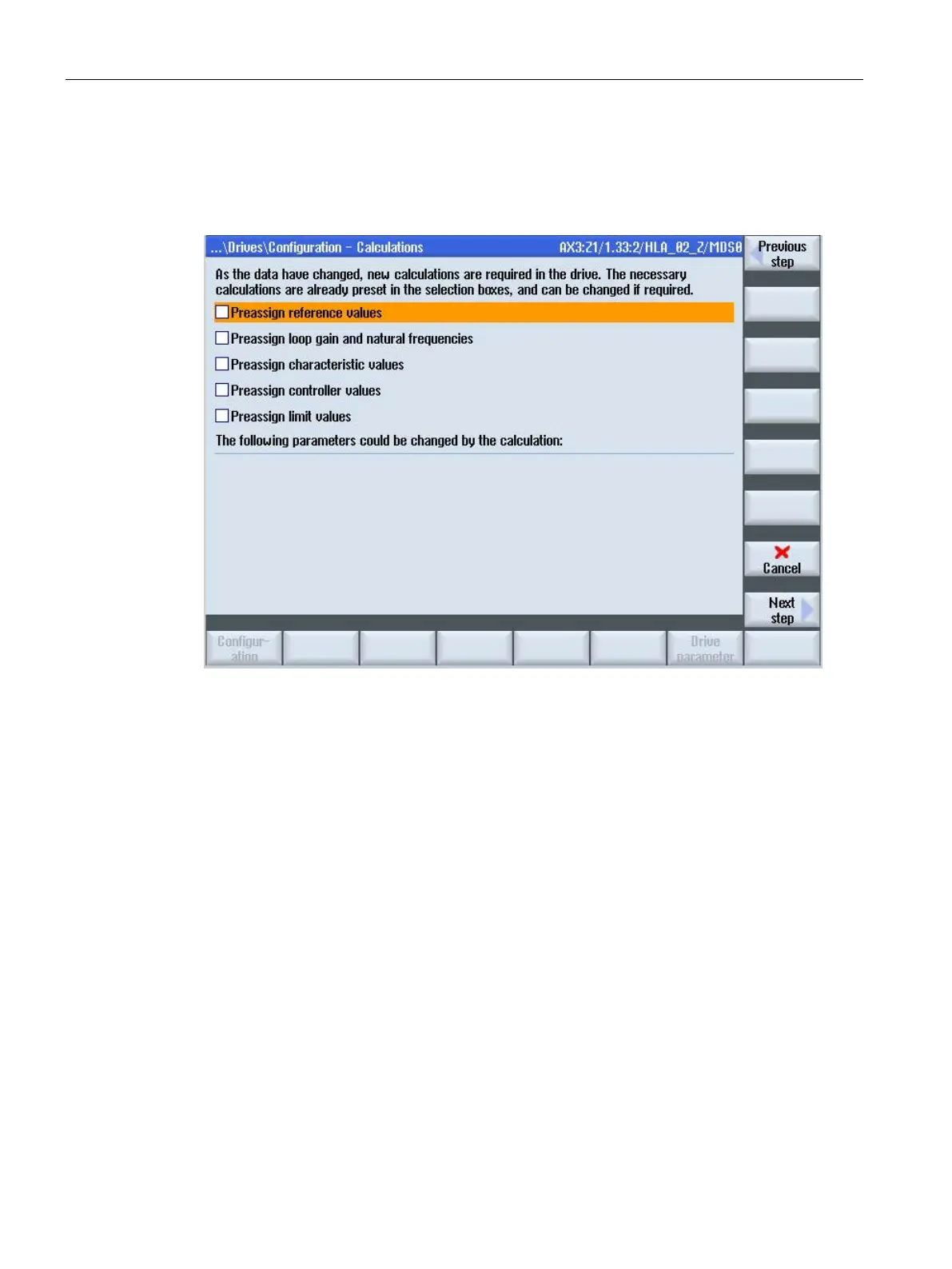

Figure 4-8 Configuration - calculations
The values to preassign the parameters are calculated from the valve, cylinder and system
data.
You can activate the pre-assignment of the following parameters:
Reference values
Controlled system gain and natural frequencies
Characteristic data
Controller values
Limit values
