Commissioning
4.9 Configuration - calculations
Hydraulic Drive
System Manual, 04/2015, 6SL3097-4BA00-0BP1
63
The table in the lower section of the dialog shows a list of the parameters, which can be
influenced by the calculation as a result of the activated checkbox. See the following
example:

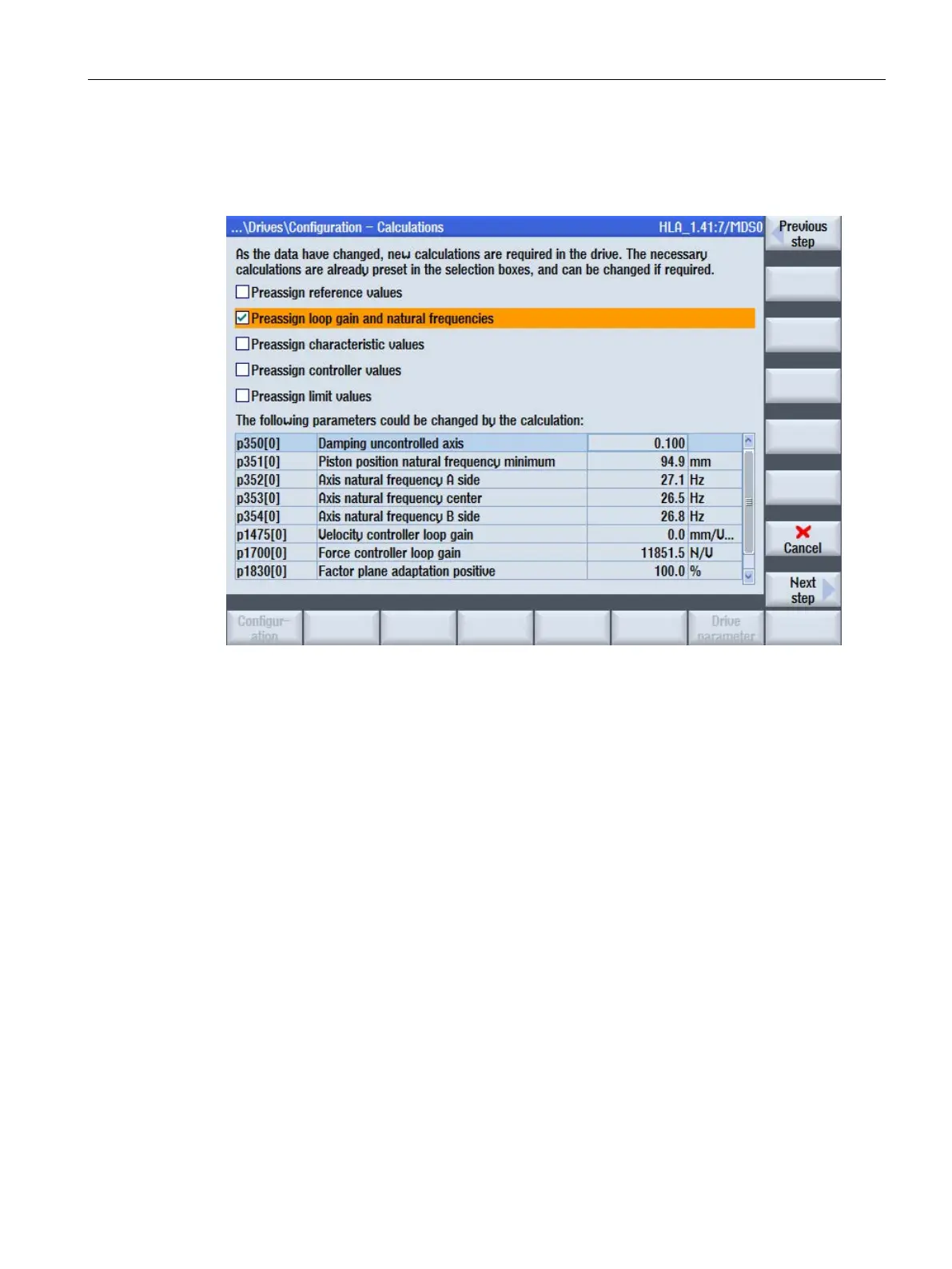

Figure 4-9 Configuration - calculations: Example of parameters to be preassigned
This list has the same properties as the expert list for the drive parameters. The values
cannot be changed.
