Commissioning
4.17 Editing the valve characteristic
Hydraulic Drive
90 System Manual, 04/2015, 6SL3097-4BA00-0BP1
Valve characteristic parameters
The valve characteristic parameters are displayed in a list.

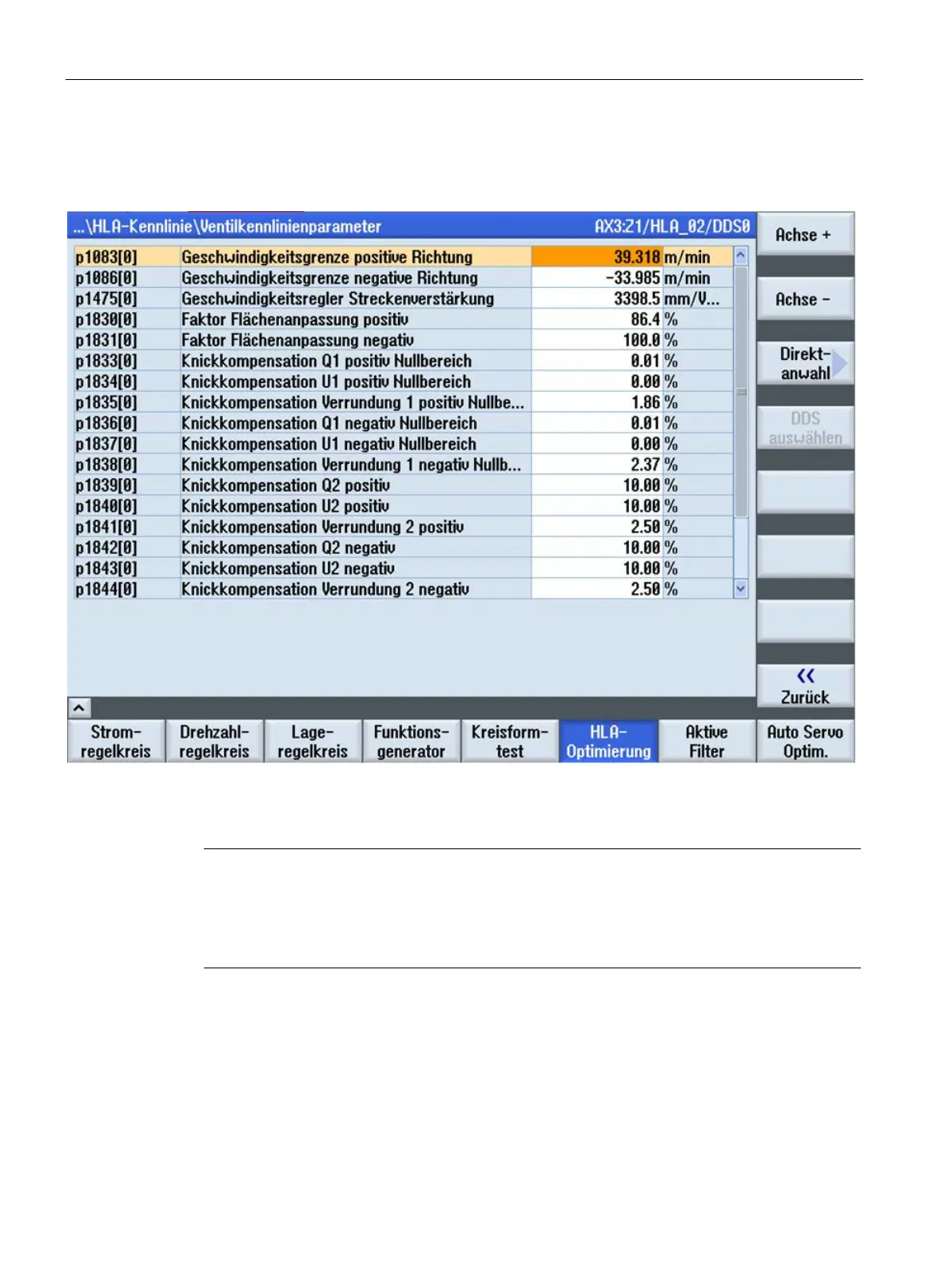

Figure 4-30 Valve characteristic parameters
The parameters displayed in the list are read from the drive.
Note
Only change the parameters during a pulse inhibit
Do not change the parameters in the "U" (Run) drive state because this can have
unpredictable effects on a traversing axis. Write the changed values to the drive using the
enter key.
