Siemens SISTORE AX9 250

Appendix
117
Siemens Building Technologies
Fire Safety & Security Products 03.2007

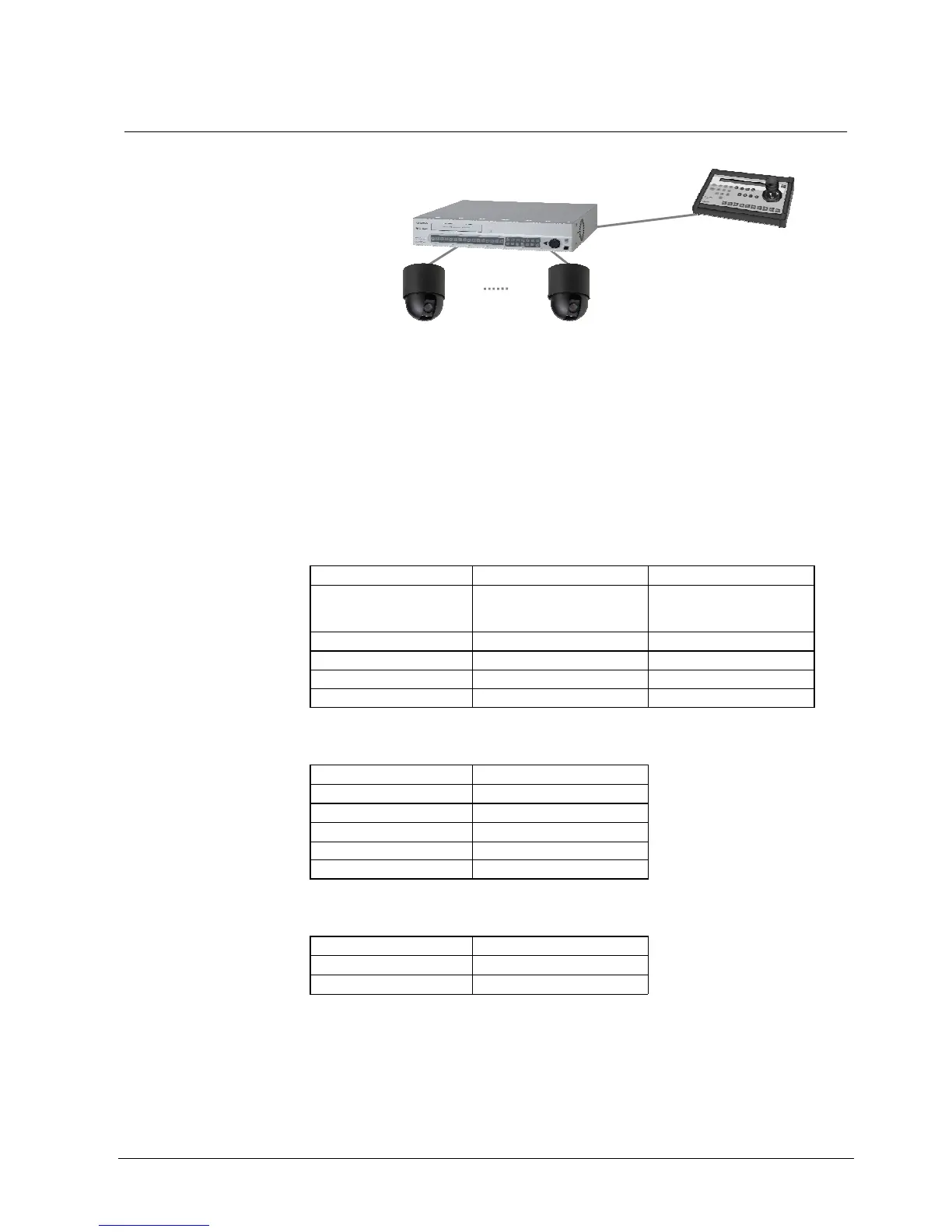

12.6.2 Connecting the remote keyboard CKA4820 and dome cameras CCDA1415 and
CCDA1425/1435
Settings on the SISTORE AX
In the “Camera” menu:
– PTZ Device: Siemens CCDA
– ID: #1 … #n
In the menu “RS232/RS485”
RS232 RS485
Baud Rate 19,200 19,200 (CCDA1415)
1200…9600
(CCDA1425/1435)
Parity None None
Data Bit 8 8
Stop Bit 1 1
Usage Remote control PTZ control
Pin out RS232 connection
SISTORE AX: RS 232 CKA4820: RS232 Com 1A
Pin 1 Pin 1
Pin 2 Pin 3
Pin 3 Pin 2
Pin 5 Pin 5
Pin 9 Pin 9
Pin out RS485 connection
SISTORE AX: RS 485 CCDA14xx
Tx + Data +
Tx - Data -
RS485
S
I
S
T
O
RE A
X
RS232 ID #1
ID #1 ID #n
CKA4820
CC
DA141
5/
142
5
