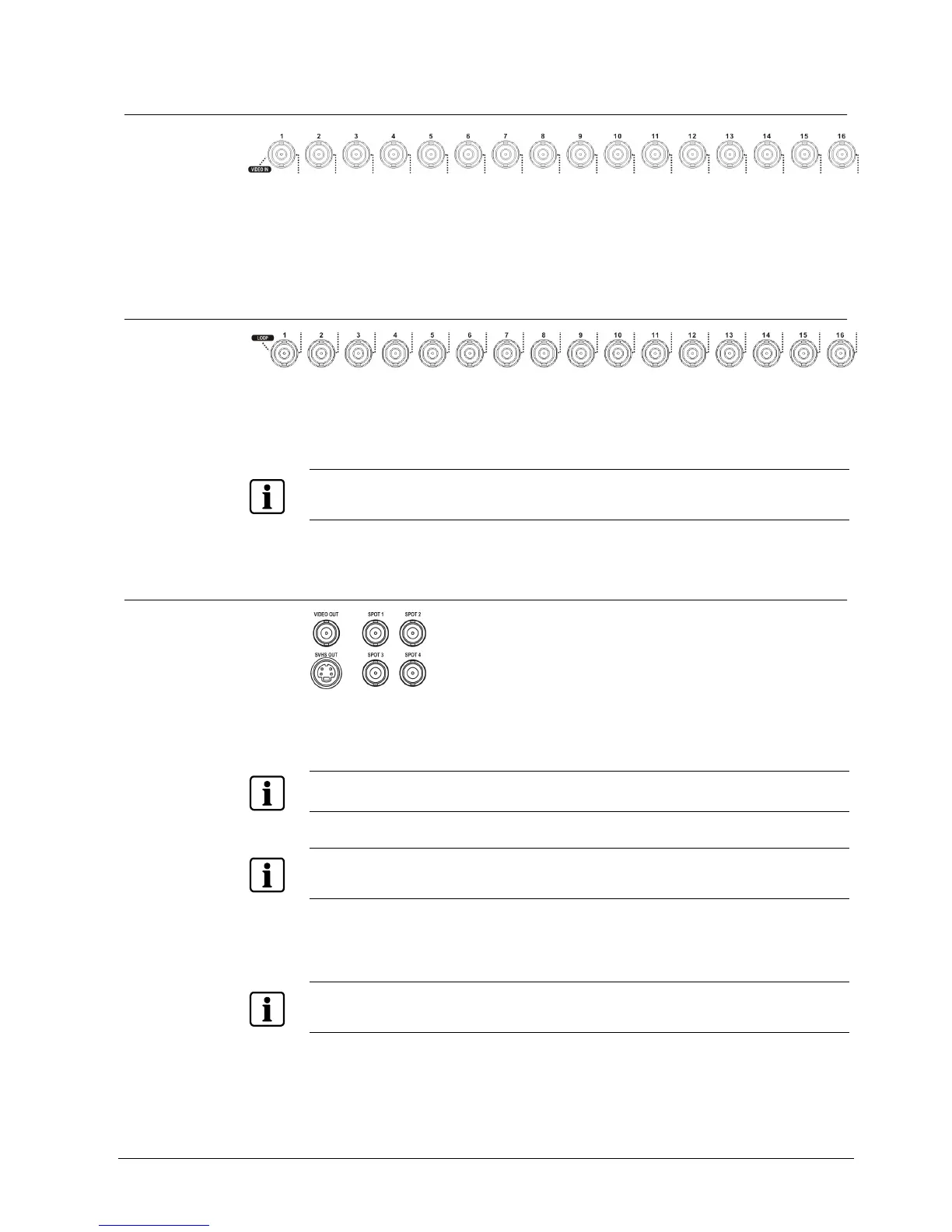

7.1 Connecting the video input
Fig. 3 Video input connectors
Connect the coaxial cables from the video sources to the BNC Video In
connectors.
7.2 Connecting the loop-through video
Fig. 4 Video loop-through connectors
If you would like to connect your video source to another device, you can use the
Loop BNC connectors.
NOTE
The Loop BNC connectors are auto terminated. Do not connect a cable to the Loop BNC unless it is
connected to a terminated device because it will cause poor quality video.
7.3 Connecting the monitor
Fig. 5 Video Out connectors
Connect the main monitor to either the Video Out or SVHS Out connector.
NOTE
If your main monitor has an SVHS input, use it because it will give you better quality video display.
NOTE
The Video Out (BNC) and SVHS Out connectors may be connected to individual monitors for
simultaneous operation.
Up to four Spot monitors can be connected to the DVR. Connect the spot monitors
to the SPOT 1, SPOT 2, SPOT 3 and SPOT 4 connectors as needed.
NOTE
When the DVR is in the Search mode, it can display live video on the SPOT 1 monitor as displayed on
the main monitor during the live mode.
