You can define the area of the image where you want to detect motion; e.g., a
doorway. Highlight the box under the Zone heading, and press the
button.
Î The Motion Detection Zone screen displays.

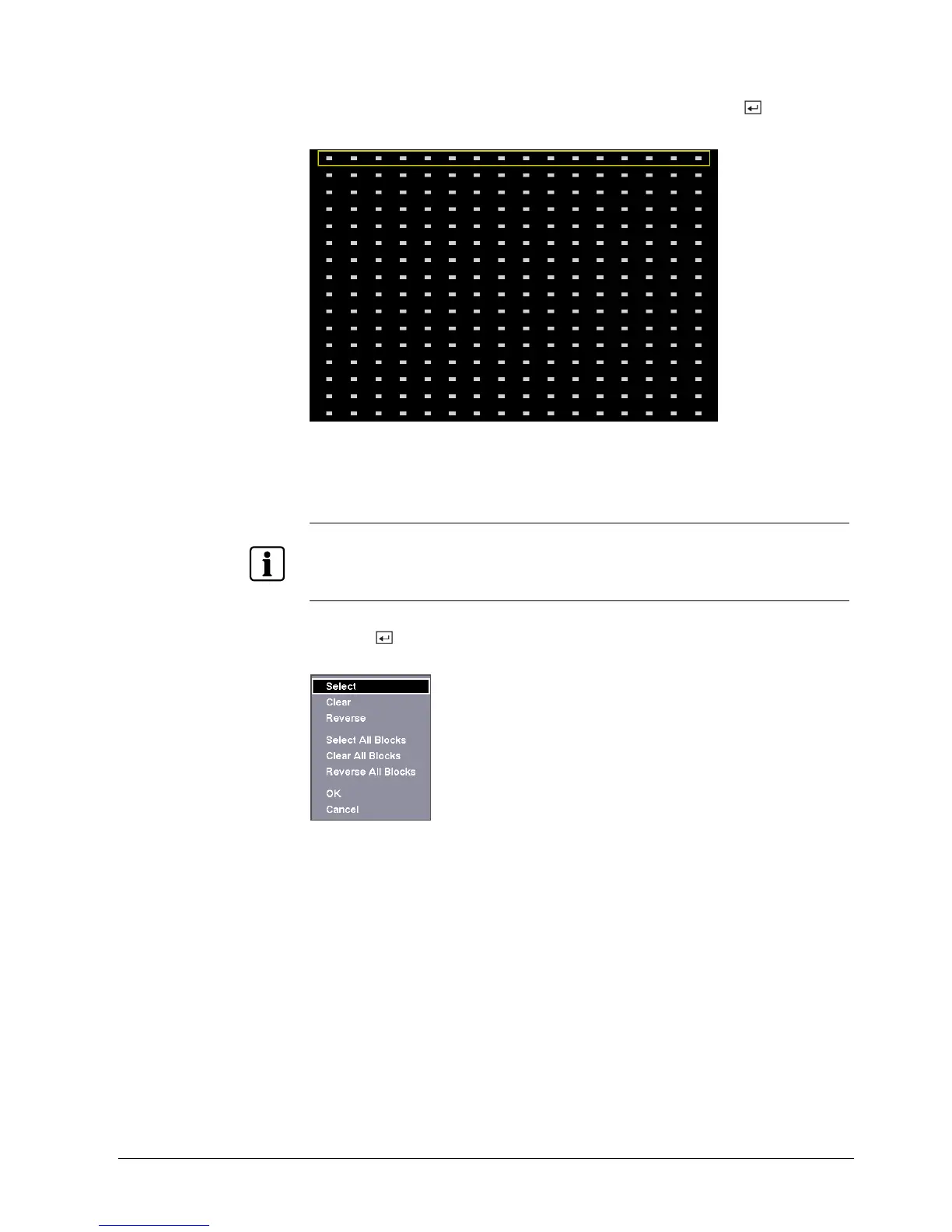

Fig. 48 Motion Detection Zone screen
The Motion Detection Zone screen is laid over the video for the selected camera.
You can set up motion detection zones by selecting or clearing blocks.
NOTE
You can set up motion zones one block at a time in groups of 8 or 16 individual block groups (9- and
16-channel DVR respectively). A block group is positioned within the image area using the Up and
Down arrow buttons, and individual blocks within the block groups are selected or cleared using the
camera buttons.
Press the button to display the menu screen. The menu on the setup screen
has the following functions:
Fig. 49 Motion Detection Zone menu
Select Activates highlighted blocks to detect motion.
Clear Deactivates highlighted blocks so that they will not detect motion.
Reverse Activates inactive highlighted blocks and deactivates active highlighted blocks.
Select All Blocks Activates all blocks to detect motion.
Clear All Blocks Deactivates all blocks so that they will not detect motion.
Reverse All Blocks Activates inactive blocks and deactivates active blocks.
OK Accepts changes and closes Zone setup.
Cancel Exits Zone setup without saving changes.
