Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
100 Compact Operating Instructions, 01/2018, A5E03920348-AE
9.5.22
SITRANS TS500, type SWR, socket reduced well (7MC65..)
∅d External diameter of measuring insert
(6 (0.24))
N Nominal length
∅D
External diameter of process connection
U
Mounting length
∅D8
Internal diameter of tip
X
Extension

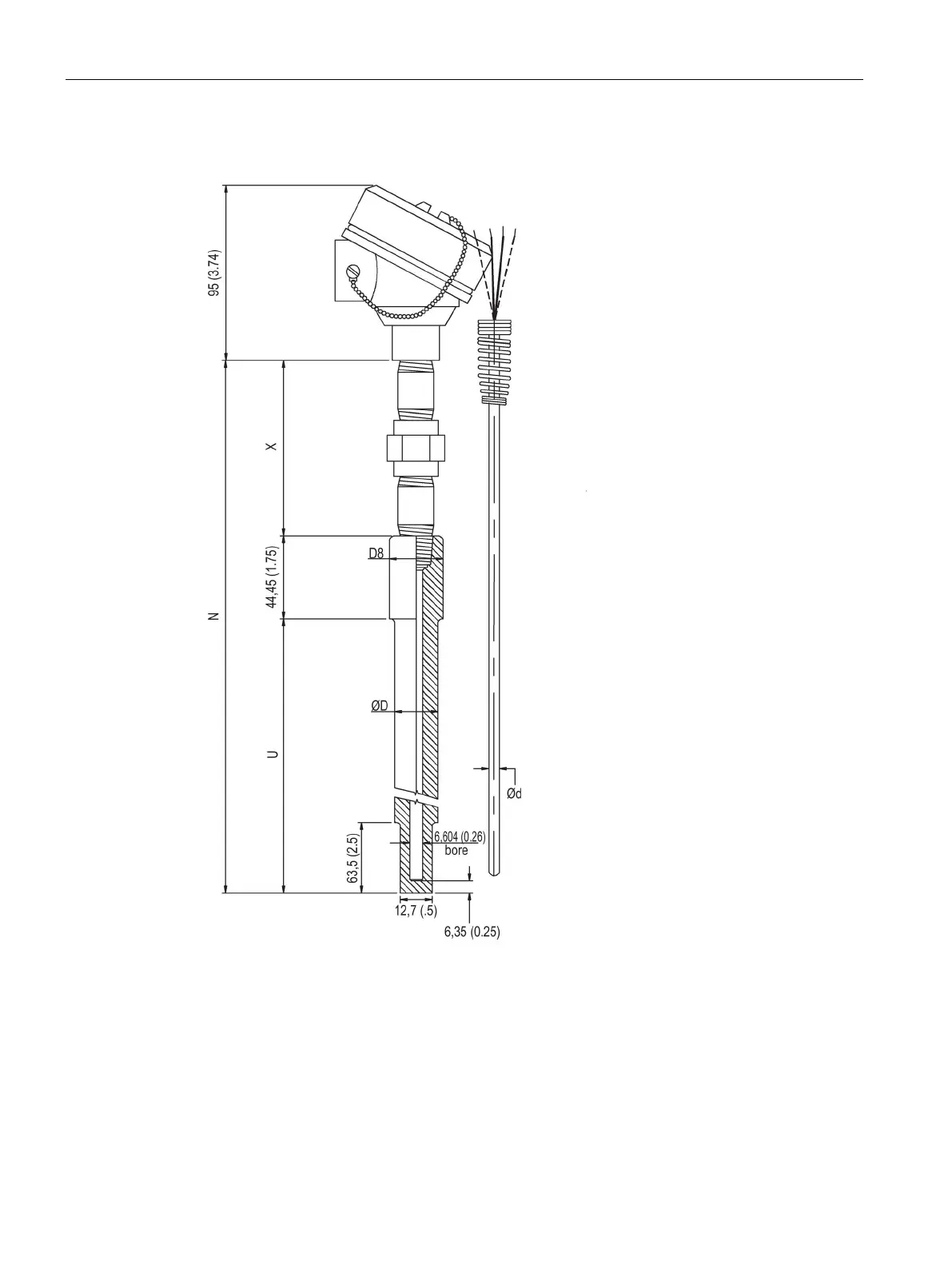

Figure 9-26 Dimensional drawings SITRANS TS500, type SWR, socket reduced well - dimensions in
mm (inch)
