Dimension drawings
9.6 SITRANS TSinsert - measuring inserts for SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
105
9.6
SITRANS TSinsert - measuring inserts for SITRANS TS500
①
American version ∅d External diameter of measuring
insert
②
European version
K1, 2
Penetration depth
Ⓐ
To ②, cold end: Ceramic base
NBL
Non bendable length
Ⓑ
To ②, cold end: Free wire ends
TSL
Temperature sensitive length
Ⓒ
To ②, cold end: Mounted transmitter
X
Extension
B
Length of measuring insert

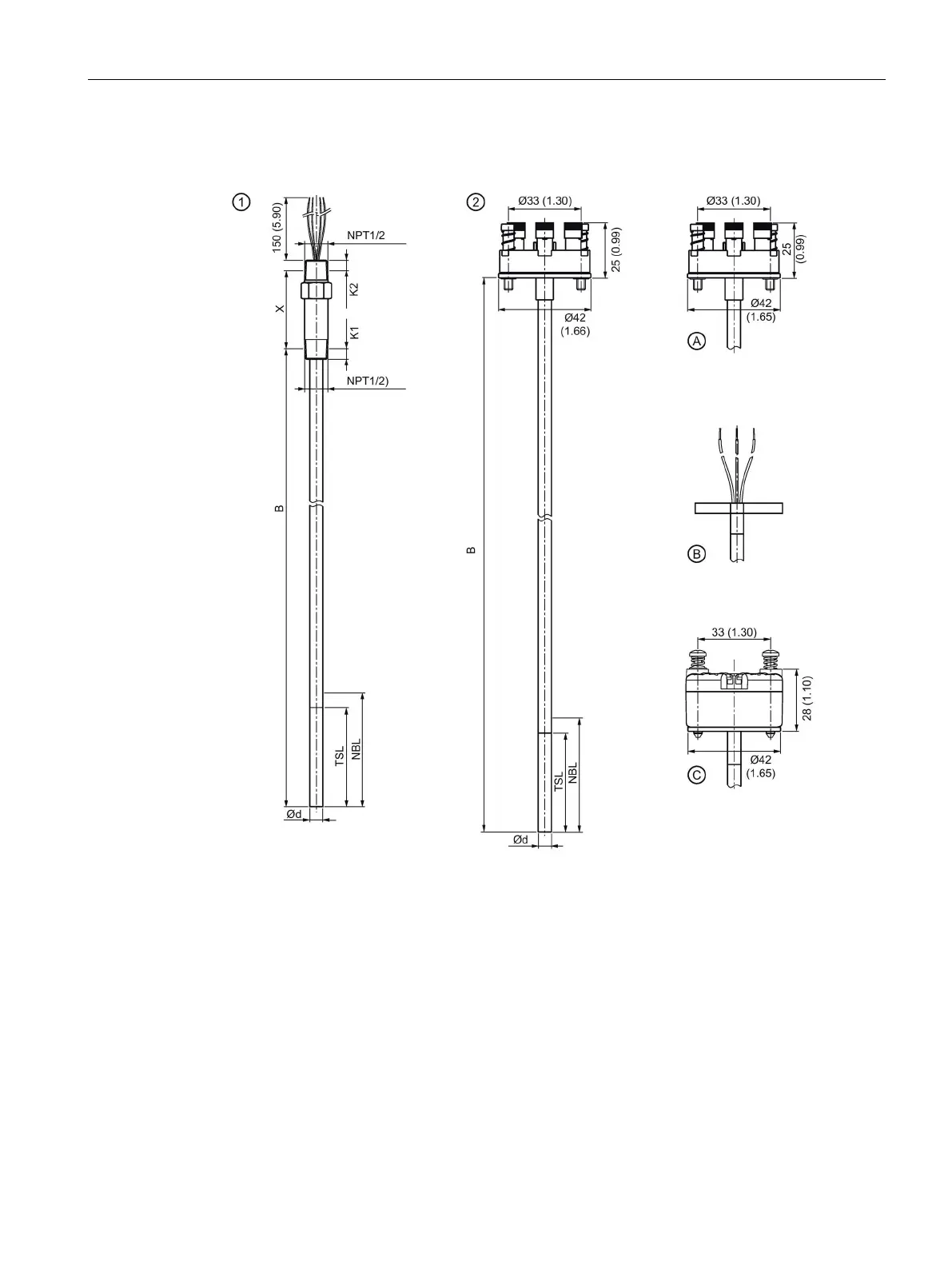

Figure 9-30 Dimensional drawings SITRANS TSinsert - measuring inserts for SITRANS TS500 -
dimensions in mm (inch)
