Siemens SITRANS TSinsert Compact Operating Instructions

Description
3.5 Temperature transmitter for SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
19
Device
Positioning of the nameplate
SITRANS TS200 7MC72..
On the connector or on the sensor
SITRANS TS500 7MC.5.. On the connection head

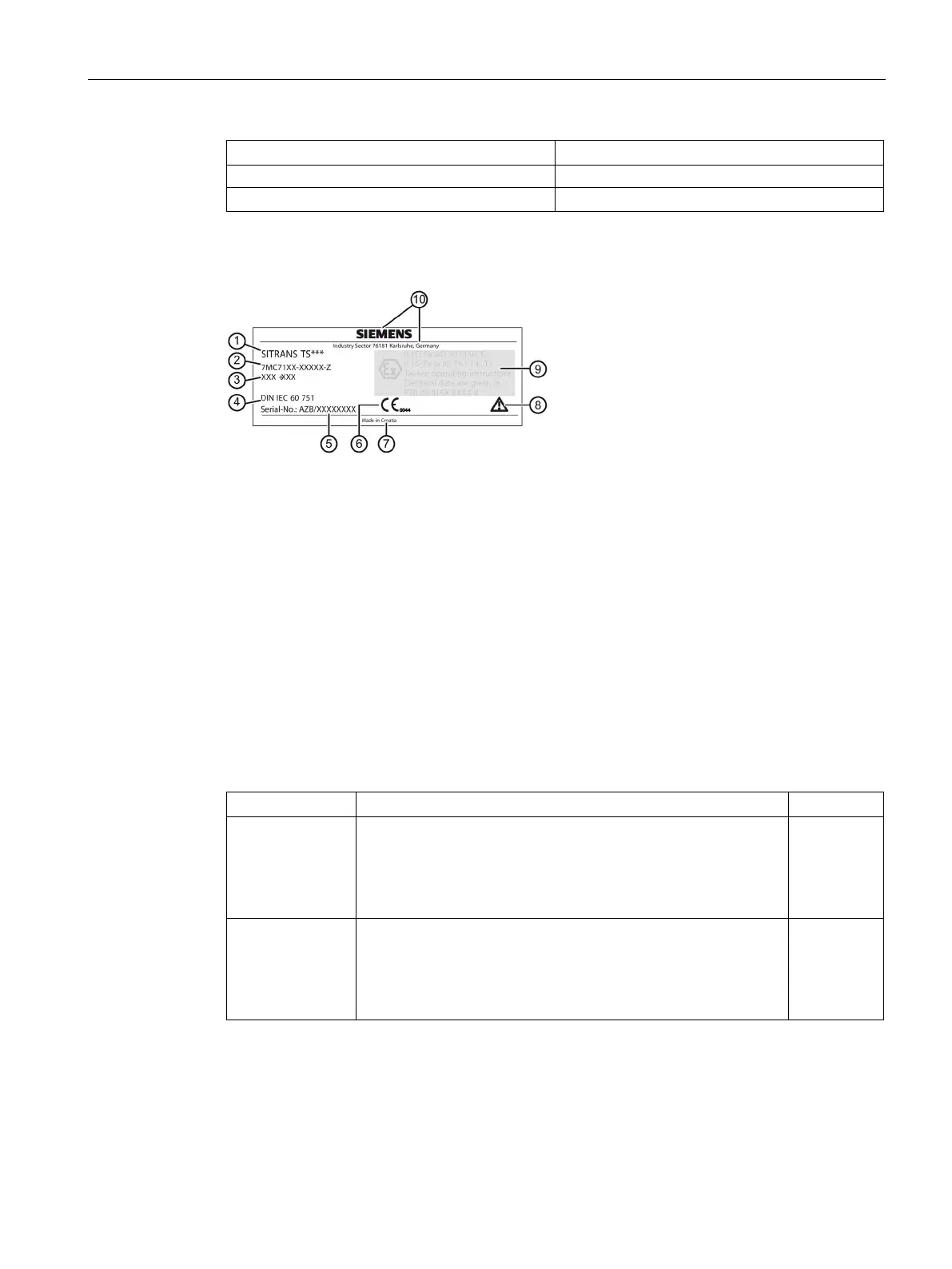

Example of nameplate
①
Product name
②
Order number (machine-readable product
code)
③
Additional information on the type
④
Valid standard for the device
⑤
Serial number
⑥
CE marking
⑦
Place of manufacture
⑧
Consult the operating instructions.
⑨
Type-specific information Explosion pro-
tection/electrical data
⑩
Manufacturer´s specifications
3.5
Temperature transmitter for SITRANS TS500
The following head-mounted transmitters can be combined with the temperature sensors
SITRANS TS500:
Transmitter
Features
Sensor
TH100
• Base device
• Output 4 ... 20 mA
• Can be configured using simple software
• P
o
: 12.5 mW
only
1)
TH200
• Universal device
• Output 4 ... 20 mA
• Can be configured using simple software
• P
o
: 37 mW
1)
or
2)
