Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
89
9.5.13

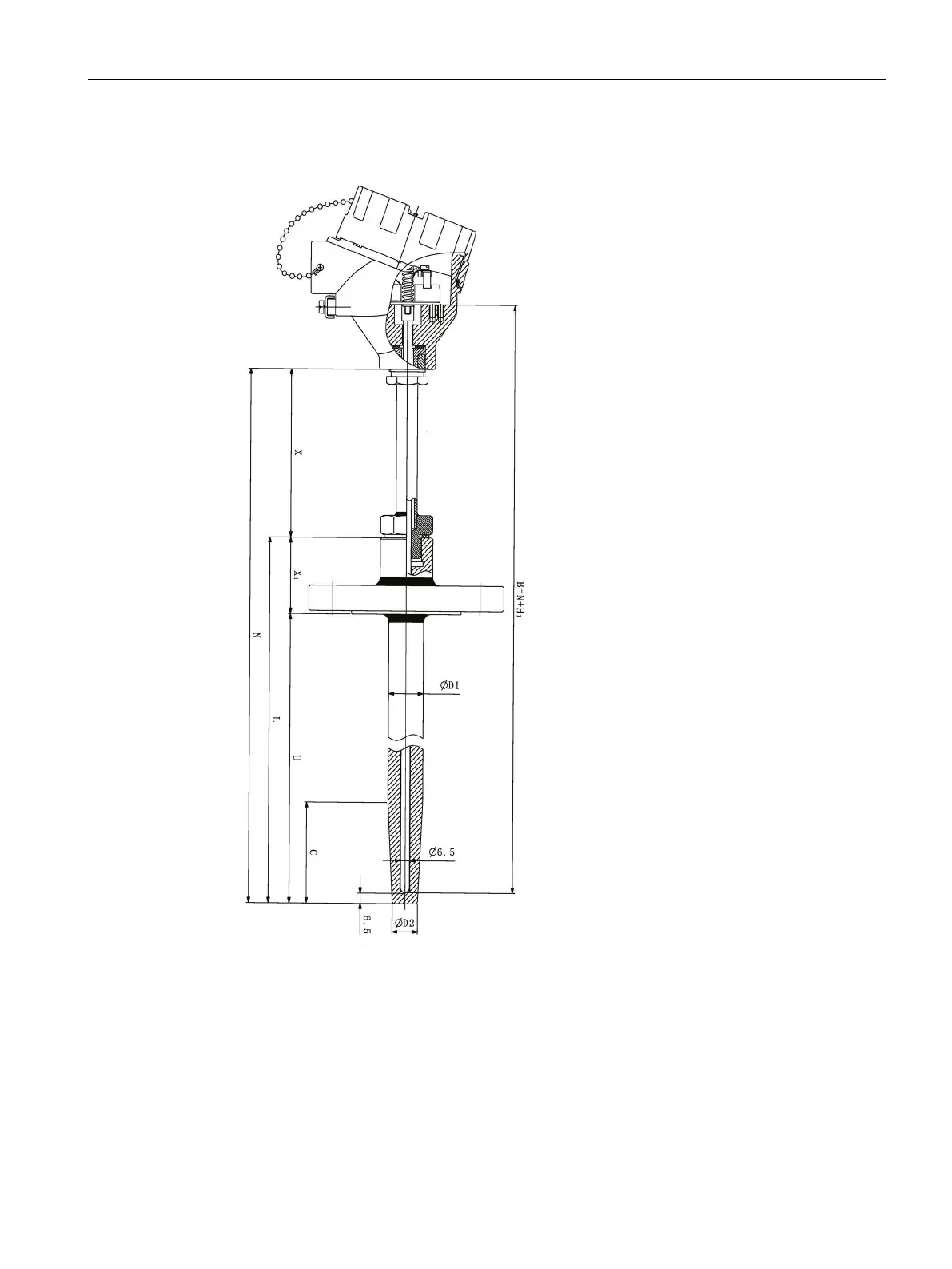

SITRANS TS500, type FST, flanged tapered well (7MC55..)
L
Length of thermowell
B
Length of measuring Insert
∅D1
External diameter of process connection
N
Nominal length
∅D2
External diameter of tip
U
Insertion length
X Extension length H
1
Head bottom thickness
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
