Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
86 Compact Operating Instructions, 01/2018, A5E03920348-AE
9.5.10
SITRANS TS500, type SR, threaded reduced well (7MC65..)
∅d External diameter of measuring insert E Thread dimension of process connec-
tion
∅D
External diameter of process connection
N
Nominal length
∅D2
External diameter of tip
U1
Unsupported length
X
Extension

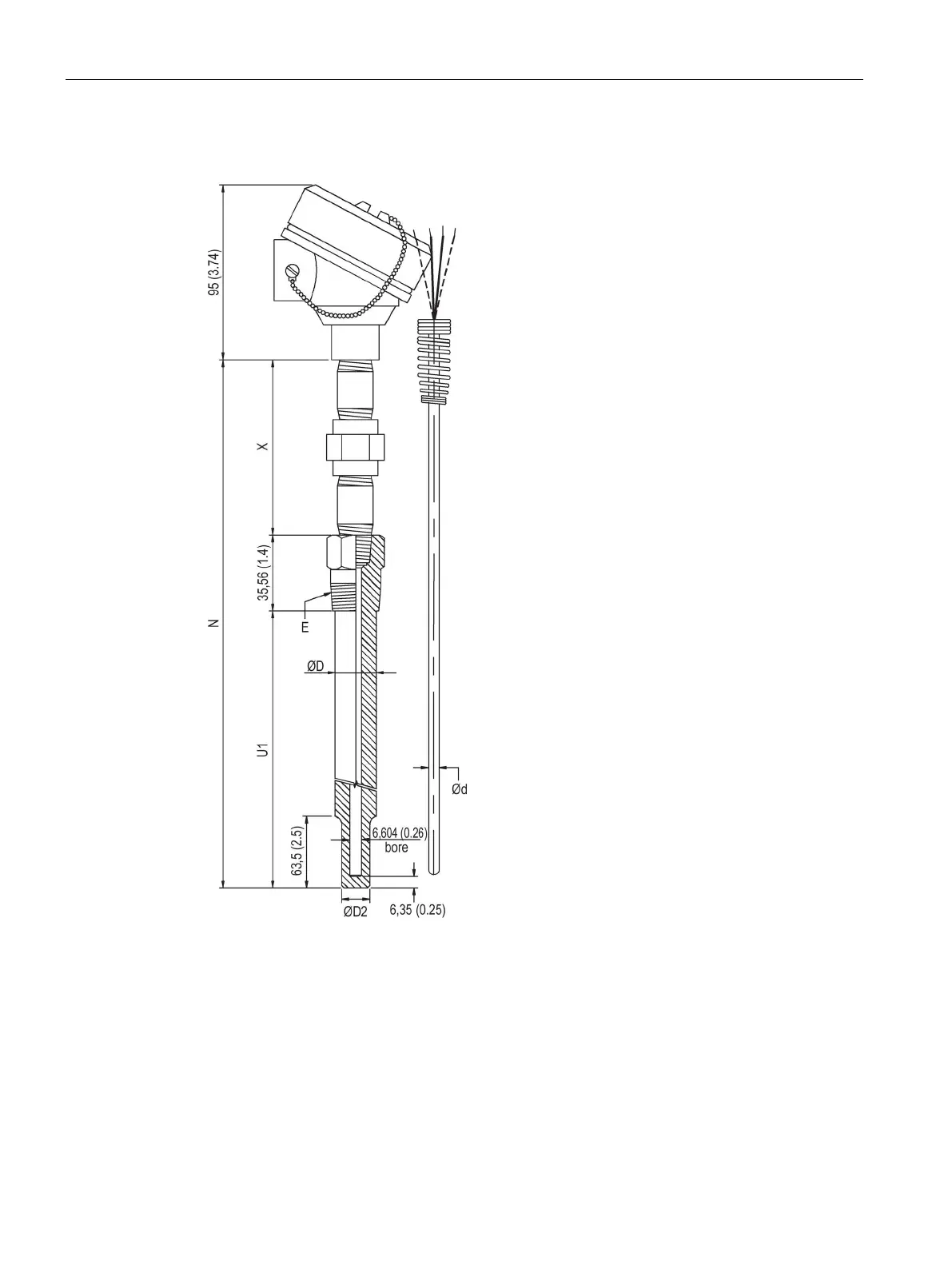

Figure 9-14 Dimensional drawings SITRANS TS500, type SR, threaded reduced well - dimensions in
mm (inch)
