Dimension drawings
9.4 SITRANS TS300
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
71
9.4
SITRANS TS300

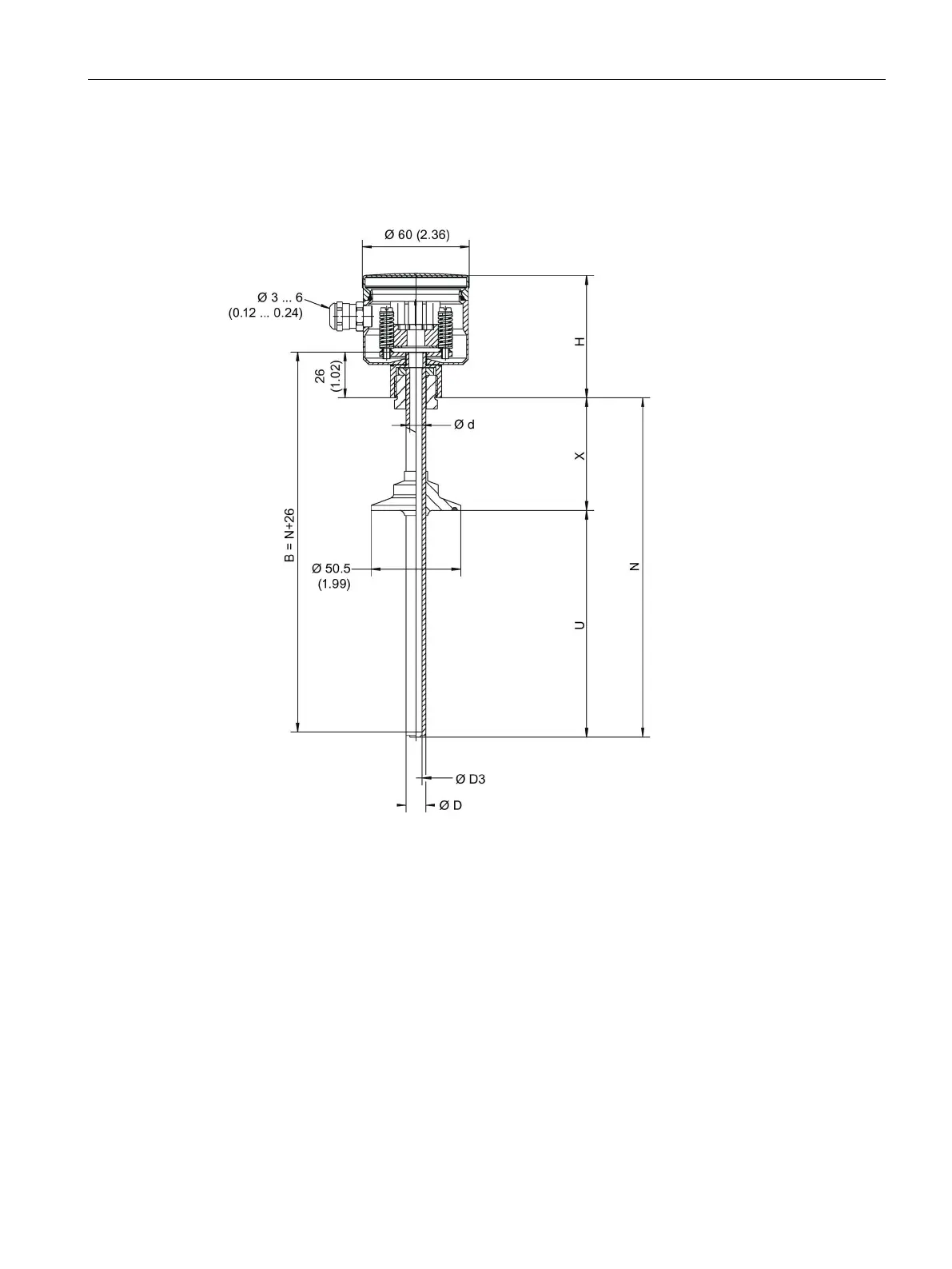

SITRANS TS300 Modular:
B
Length of measuring insert
H
Height of head
∅d
External diameter of measuring insert
N
Nominal length
∅D External diameter of process connection U Mounting length (see process connection
options)
∅D3 Internal diameter of protective tube X Extension (see process connection op-
tions)
Figure 9-3 Dimensions in mm (inch)
