Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
99
9.5.21
SITRANS TS500, type SWS, socket straight well (7MC55..)
∅D
External diameter of process connection
U
Mounting length
B
Length of measuring Insert
X
Extension
H
1
Head bottom thickness:
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
X
1
Lag length
N
Nominal length
L
Length of thermowell

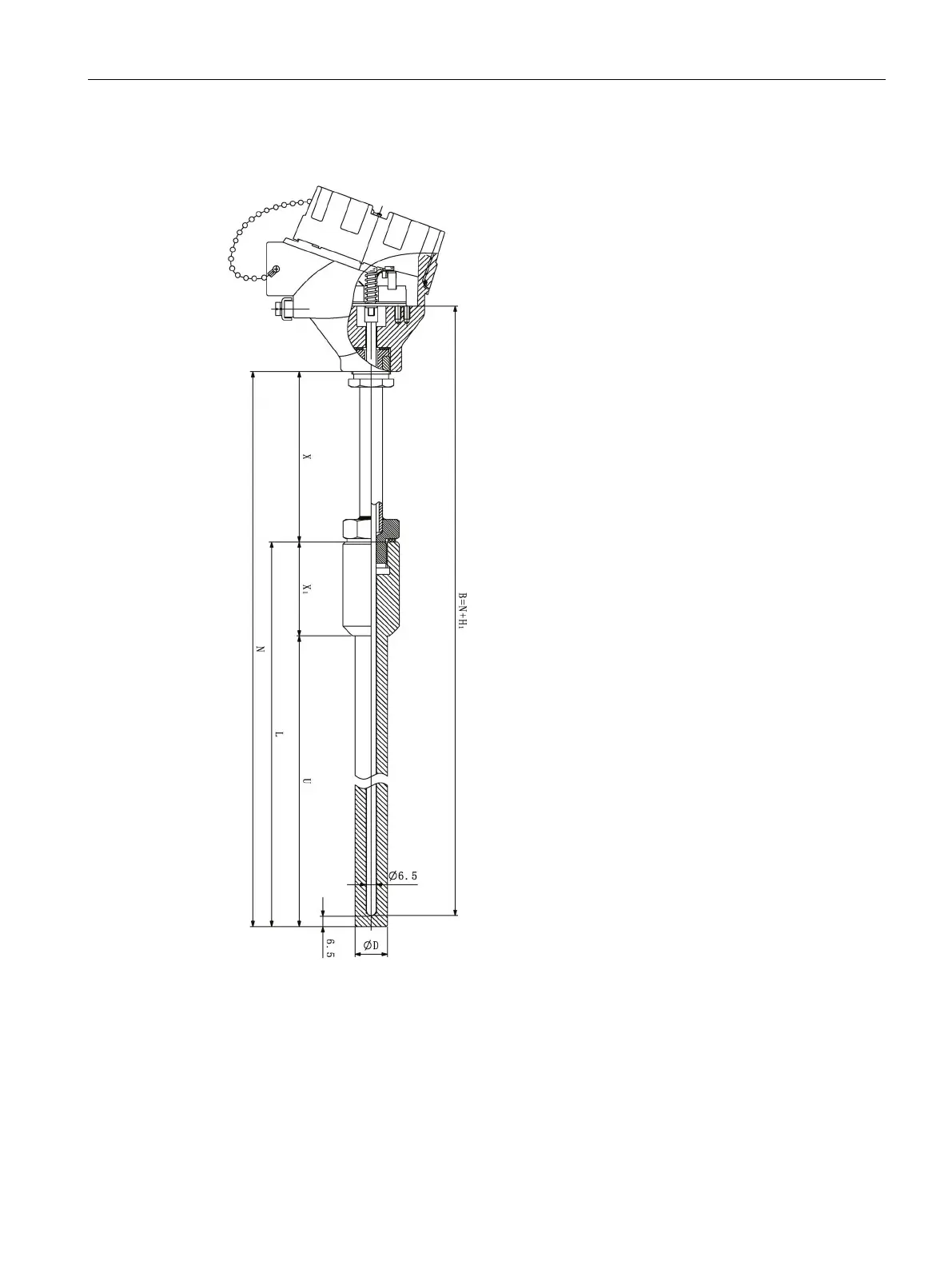

Figure 9-25 Dimensional drawings SITRANS TS500, type SWS, socket straight well (7MC55…)
