Siemens SITRANS TSinsert Compact Operating Instructions

Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
76 Compact Operating Instructions, 01/2018, A5E03920348-AE

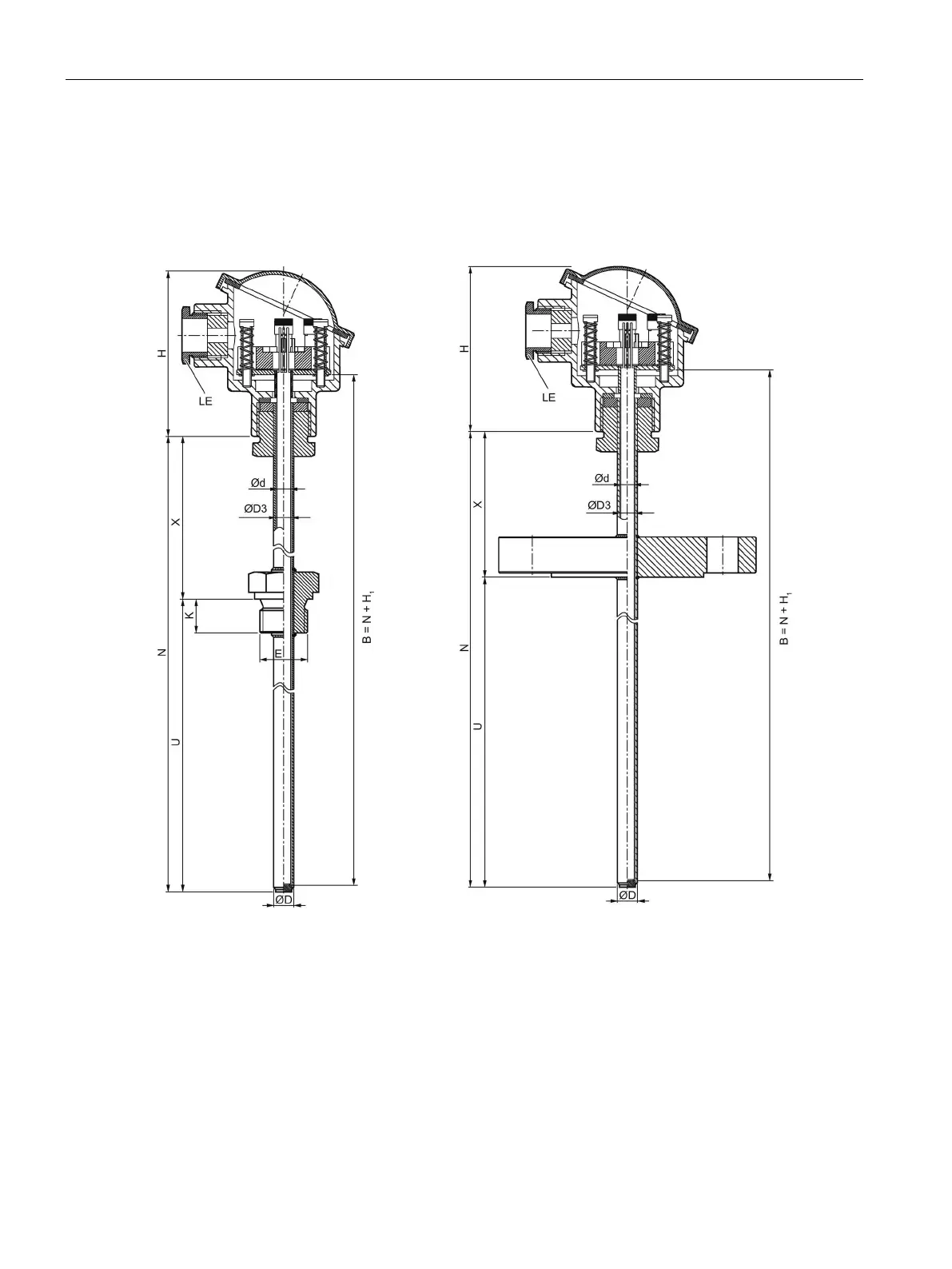

Figure 9-5 Dimensional drawings SITRANS TS500, types 2 and 2N - dimensions in mm (inch)
9.5.2
SITRANS TS500, types 2G and 2F
①
Type 2G, pipe version with screw-in nipple and extension
②
Type 2F, pipe version with flange and extension
B Length of measuring insert H
1
Type Axx: 41 (1.61)
Type Bxx: 26 (1.02)
∅d
External diameter of measuring insert (6 (0.24))
K
Penetration depth
∅D
External diameter of process connection
LE
Cable inlet
∅D3
Internal diameter of protective tube
N
Nominal length
E
Thread dimension of process connection
U
Mounting length
H
Height of head
X
Extension
Figure 9-6 Dimensional drawings SITRANS TS500, types 2G and 2F - dimensions in mm (inch)
