Dimension drawings
9.5 SITRANS TS500
TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Compact Operating Instructions, 01/2018, A5E03920348-AE
77
9.5.3
SITRANS TS500, type 3
①
Type 3, fast pipe version without process connection
B
Length of measuring insert (European)
H
Height of head
∅d External diameter of measuring insert
(6 (0.24))
H
1
Type Axx: 41 (1.61)
Type Bxx: 26 (1.02)
∅D
External diameter of fixing point
LE
Cable inlet
∅D1
Internal diameter of tip
N
Nominal length
∅D2
External diameter of tip
P
Space for process connection
∅D3
Internal diameter of protective tube

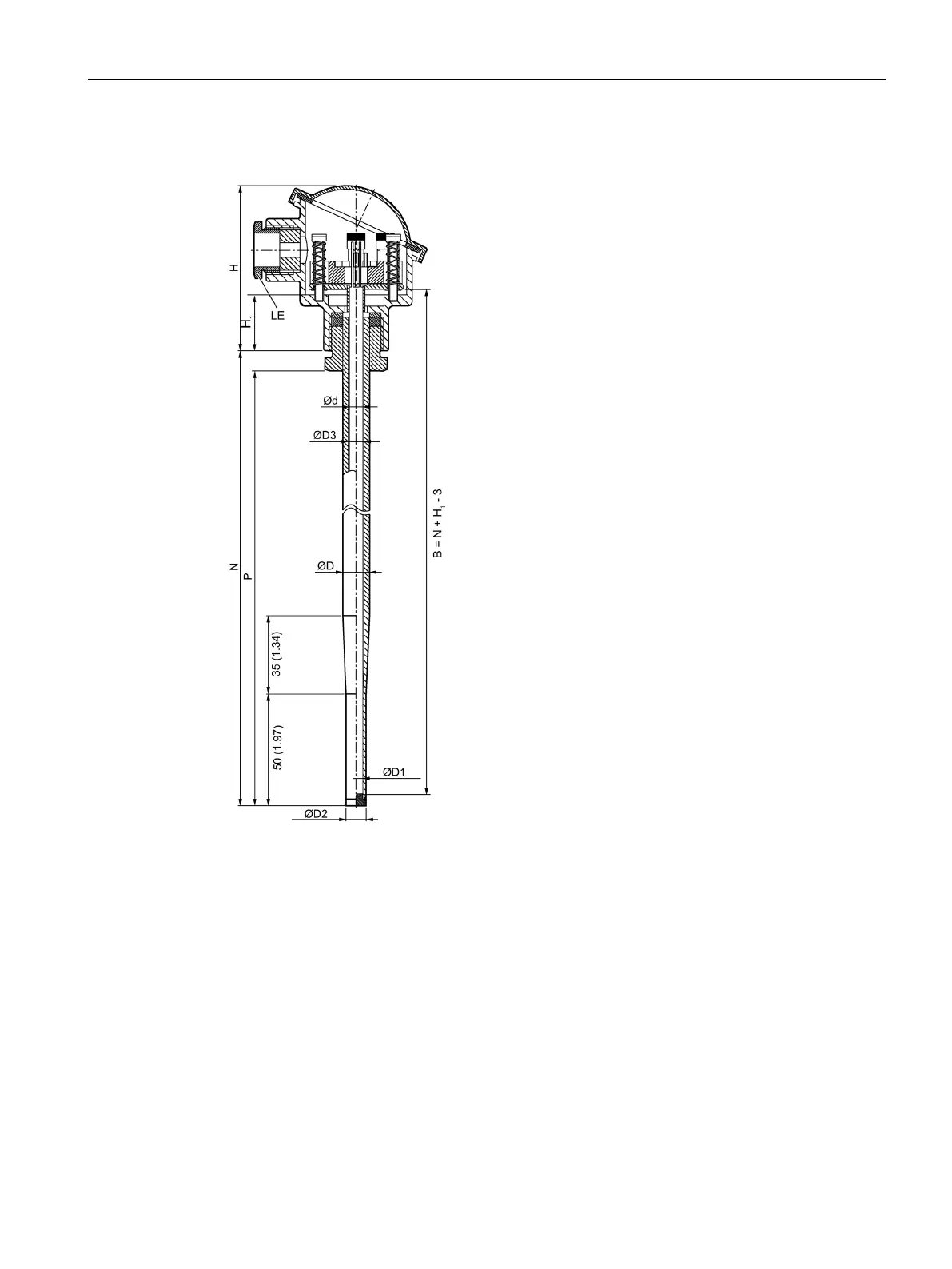

Figure 9-7 Dimensional drawing SITRANS TS500, type 3 - dimensions in mm (inch)
