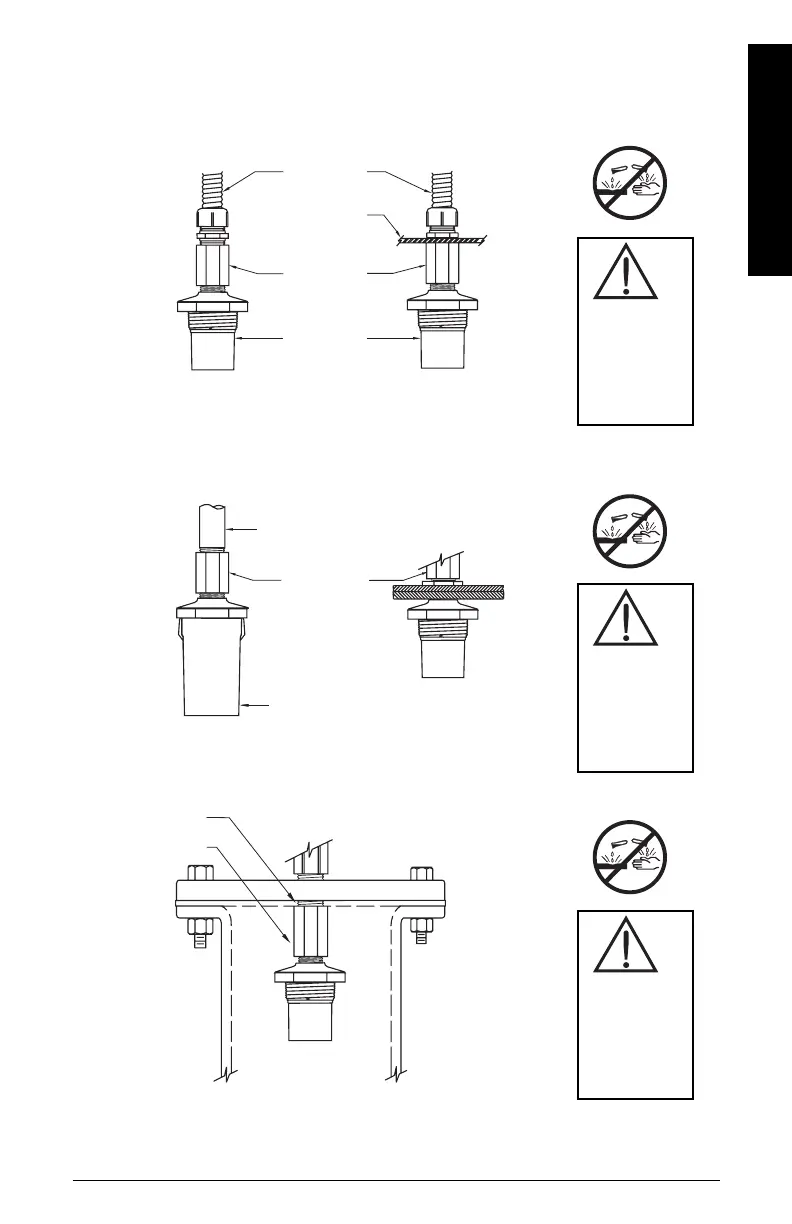

Mounting – Liquids Applications
Non-Corrosive Applications
flexible
conduit
steel plate
plastic
type
coupling
transducer
Flexible Conduit Bracket
Flexible conduit mounted transducer should not
be subjected to wind, vibration, or jarring
Submersible Plywood
rigid metal conduit
plastic
type
coupling
submergence
shield
Submersible transducer, use in
applications where flooding is possible.
Plywood mounting provides
excellent isolation, but must be
rigid enough to avoid flexing if
subjected to loading.
Blind Flange
nipple welded to
blind flange
plastic type
coupling
Flange, gasket, and hardware supplied by customer.
WARNING!
NOT
suitable
for use in a
corrosive
environment.
WARNING!
NOT
suitable
for use in a
corrosive
environment.
WARNING!
NOT
suitable
for use in a
corrosive
environment.
