7ML19985QK82 ST-H Transducer – OPERATION MANUAL Page EN-7
mmmmm
English

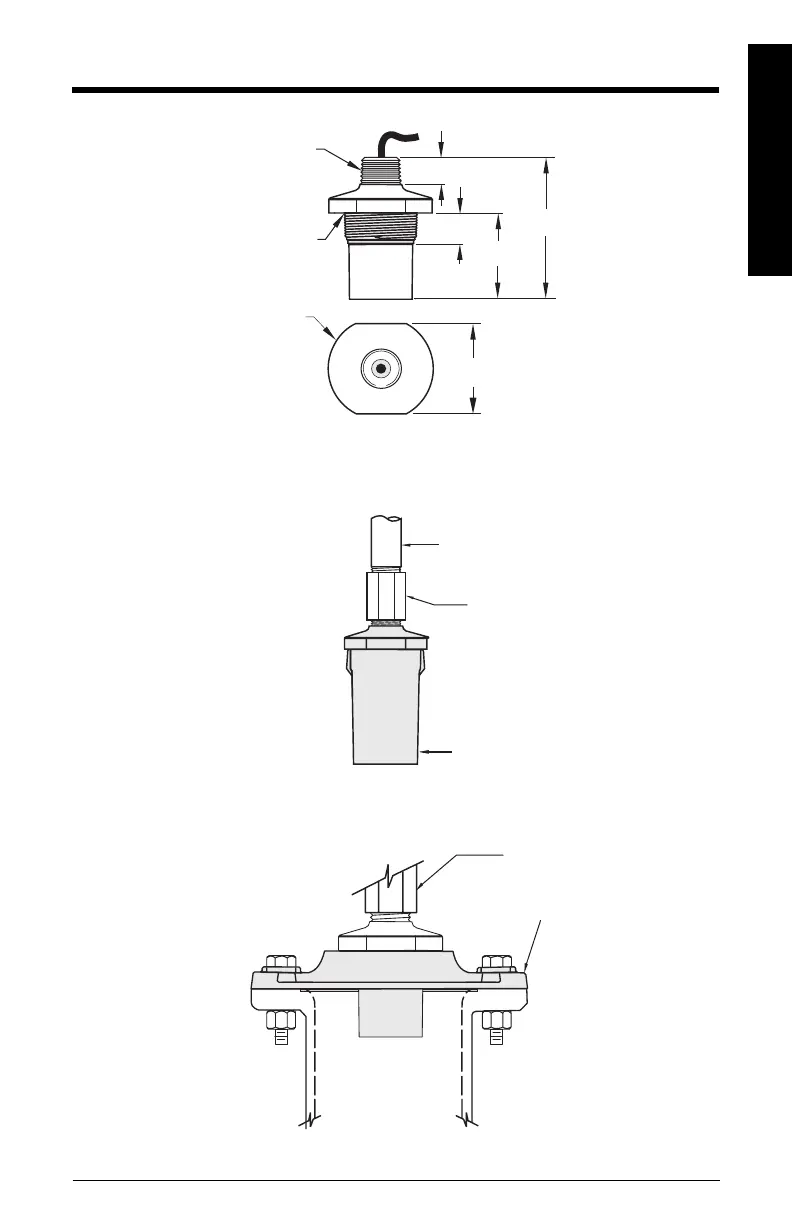

Outline and Dimensions
119 mm (4.7”)
1” NPT conduit
thread
2” NPT, R 2” (BSPT), or G 2"
(BSPP) mounting thread
(process connection)
87 mm ∅
(3.4”)
82 mm (3.2”)
74 mm (2.9”)
Submersible
Flange Adapter
rigid metal conduit
plastic type
coupling
submergence shield
plastic type
coupling
Siemens Milltronics
flange adapter
Submergence transducer, used in applications where flooding is possible.
22 mm (0.87”)
20.9 mm
(0.82”)
