Siemens ST-H Operation Manual

7ML19985QK82 ST-H Transducer – OPERATION MANUAL Page EN-11
mmmmm
English

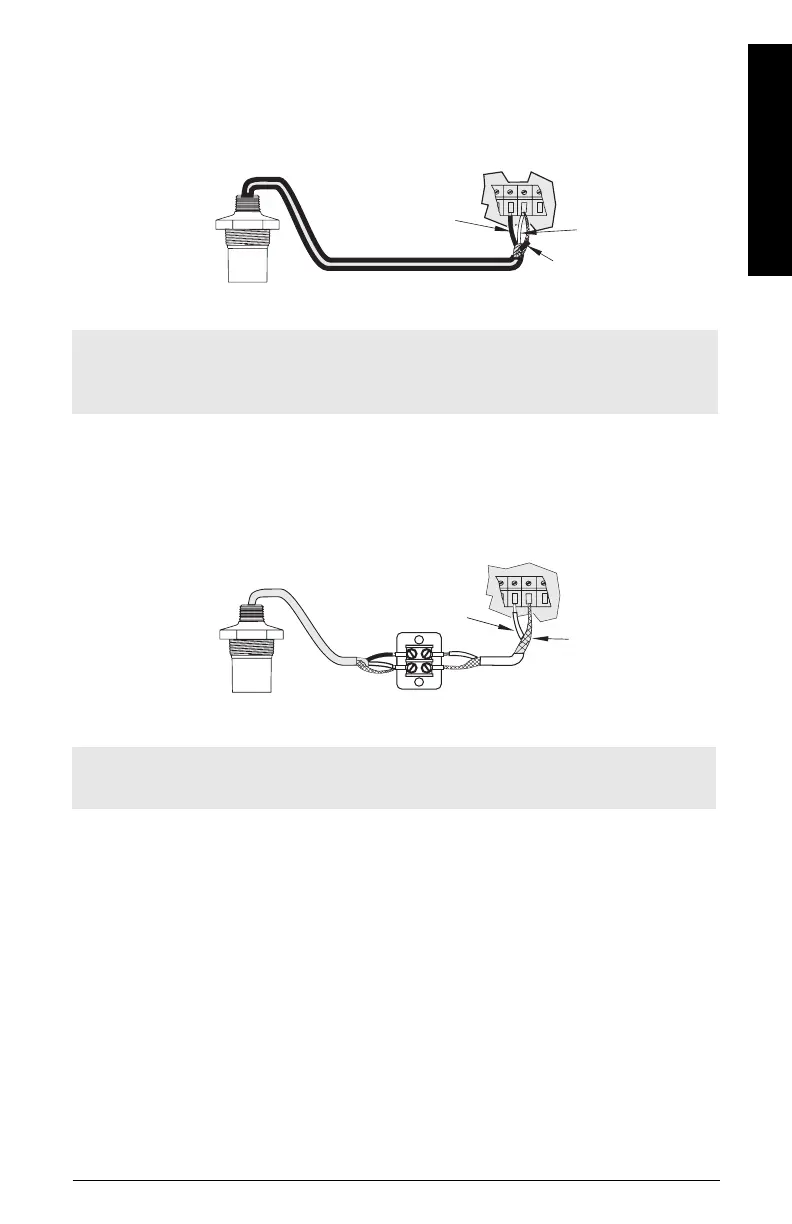

Direct Connection
Connect the transducer directly to the Milltronics transceiver using the two conductor shielded
cable.
Coaxial Extension
Connect the transducer to the Siemens Milltronics transceiver via a junction box and RG–62 A/
U coaxial cable. This setup is effective for combined runs up to 365 m (1200 ft).
Note: When connecting to a SITRANS LUC500, a MultiRanger 100/200, or a HydroRanger
200, the white, black, and shield wires are all connected separately. DO NOT tie the white
and shield wires together.
Note: When connecting to a SITRANS LUC500, MultiRanger 100/200, and HydroRanger
200, do NOT use coaxial cable; see diagram below for proper procedure.
white
black
shield
Extend cable using RG-62 A/U coax.
white
shield

Siemens ST-H Specifications

General

Brand	Siemens
Model	ST-H
Category	Transducer
Language	English
